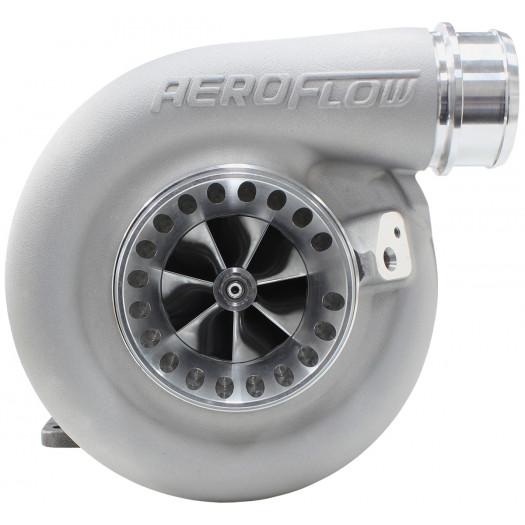

BOOSTED 7875 1.25 T4 FLANGE BB V-BAND OUTLET GTX42 NATURAL

BOOSTED 7875 1.25 T4 FLANGE BB V-BAND OUTLET GTX42 NATURAL

Regular price
$3,182.55
Sale price
$3,182.55
Regular price
$3,744.18
Sold out
Unit price
per
Tax included.

Recommended horsepower rating: 475-950HP
Recommended engine displacement: 2L to 6L

Dual Ceramic Ball Bearing
This is an oil cooled turbocharger
Billet aluminium point milled compressor wheel
Ported shroud compressor housing cover
Speed sensor port included in compressor cover (sold separately, AF8050-1010)
External wastegate sold separately
1/8NPT turbo oil feed fitting or AF463-01 oil feed plate
Recommended turbo drain adapter AF463-02 or AF463-06
Turbine outlet flange v-band sold separately AF8080-1003
Turbine inlet gasket sold separately AF9557-0006

Compressor
Inducer: 78.13mm
Exducer: 102.4mm
Extended Tip: 106.3mm
A/R:

Turbine
Inducer: 82mm
Exducer: 75mm
A/R: 1.25

Compressor Inlet: 4" Slip fit
Compressor Outlet: 2.5" Slip fit
Turbine Inlet Flange: T4
Turbine Outlet Flange: V-Band (AF8080-1003)
Wastegate: External wastegate
