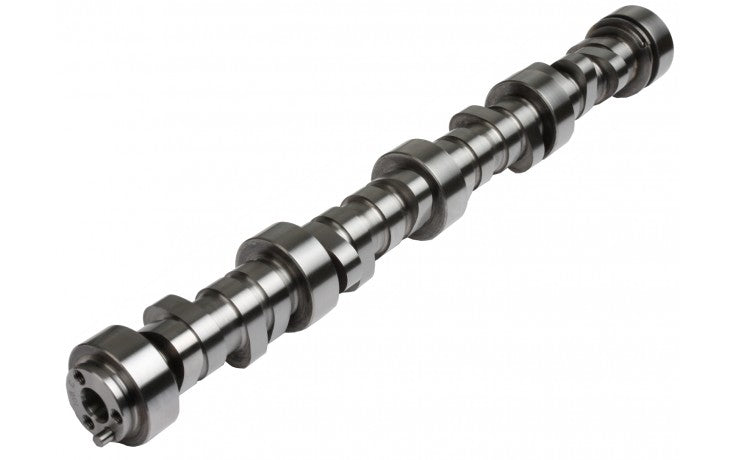

Solid roller lifter cam to suit multiple motorsport applications: drift, circuit, muscle car, street / strip. Tight separation for massive midrange torque. Wide lobe separation to extend top end RPM.
Engine Make: Engine Model: Part Number:
CHEVROLET LS Series V8 RX108-A8
Valve Clearance: Intake: 0.020" Set HOT at the VALVE
Exhaust: 0.020" Set HOT at the VALVE
Cam Lift: Intake: 0.394" Exhaust: 0.394"
Rocker Ratio: Intake: 1.7 Exhaust: 1.7
Nett Valve Lift: Intake: 0.650" Exhaust: 0.650"
Advertised Duration @ 0.020" Intake: 288 Exhaust: 304
Duration @ 0.050" CAM LIFT Intake: 252 Exhaust: 266
Timing @ 0.050" CAM LIFT IVO: 18 BTDC EVO: 61 BBDC
IVC: 54 ABDC EVC: 25 ATDC
Suggested Centre Lines: Intake: 108 Exhaust: 108
CAM Lift @ TDC Intake: 0.108" Exhaust: 0.131"
