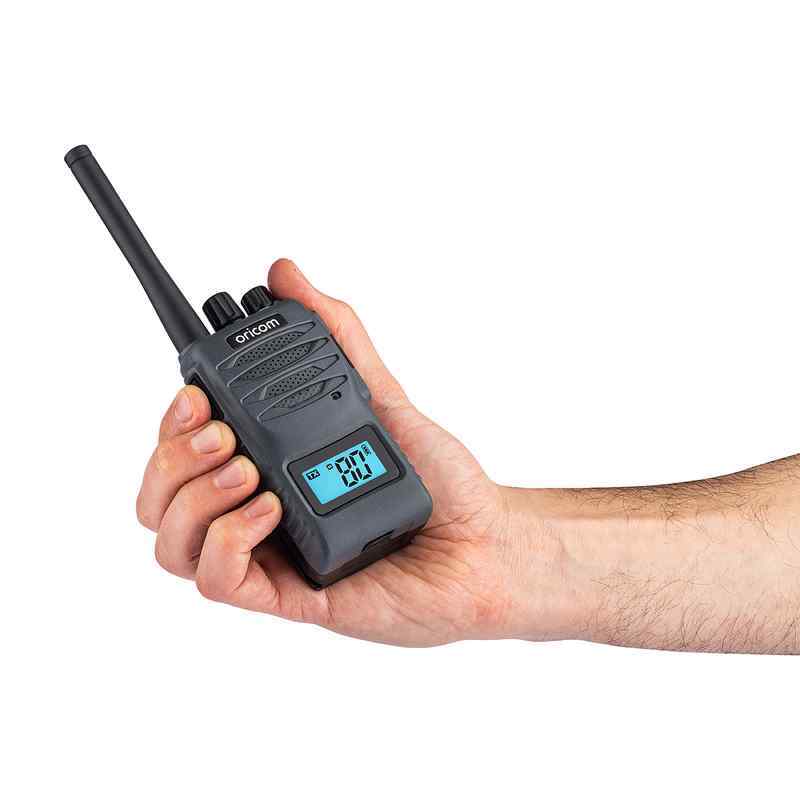

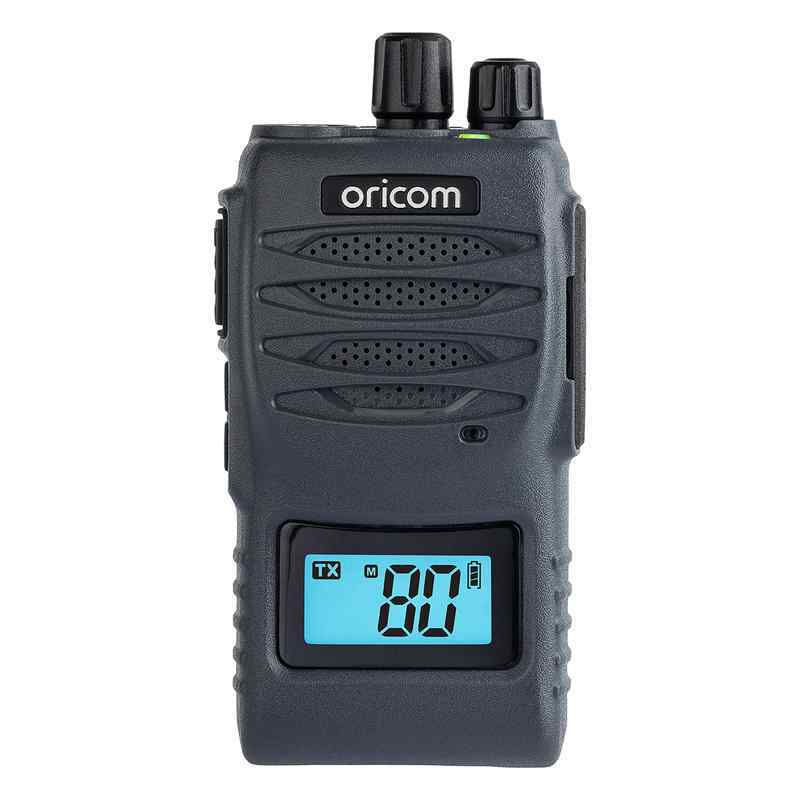

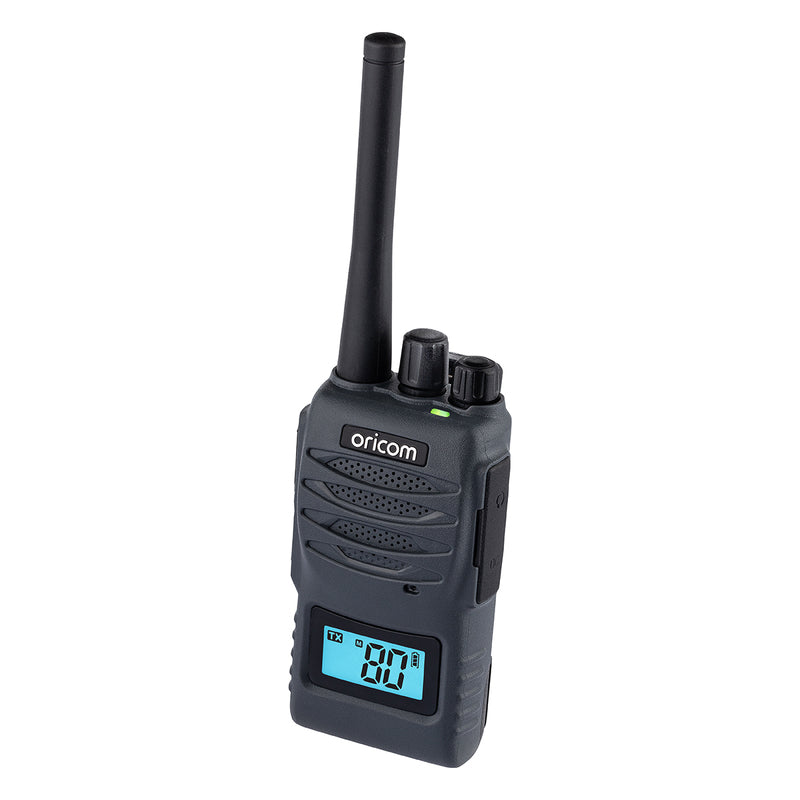

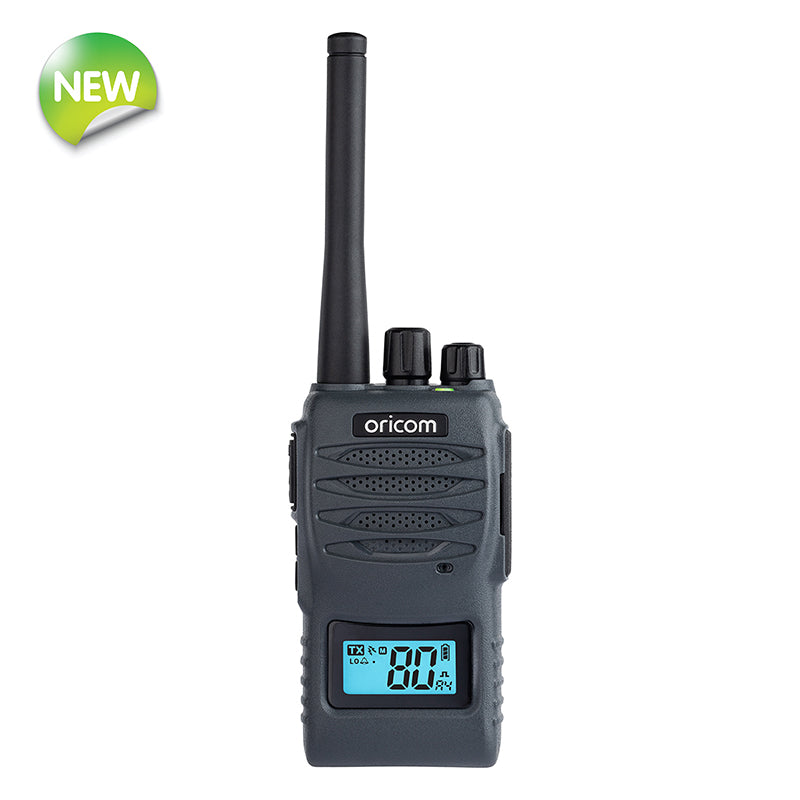

Oricom 5 Watt Handheld UHF CB Radio UHF5400
Robust, powerful, benefit rich and priced for everyday use with quality features designed to optimise performance under all conditions, this radio is backed by Oricom’s 3 year Warranty.
The UHF5400 transceiver also includes a unique socket to ensure that accessories are firmly secured at all times for interruption free communication.
UHF5400 Key Features Include:
- 5/1-watt RF power
- Heavy duty die cast metal chassis
- 80 Narrowband channels*
- 38 CTCSS & 104 DCS Privacy codes
- Duplex
- Rugged construction
- Channel scan (instant/memory/priority)
- Backlit LCD display
- Rotary volume control
- Signal monitoring
- Keypad lock
- Calling tone
- Power save mode
- Removable flexible antenna
- 2.5mm jack for optional headset or speaker mic
Specifications
| Compliance | AS/NZS 4365:2011 and NZS2772.1 | ||
| Frequency Range TX/RX | 476.425 - 477.4125 MHz | ||
| Number of Channels | 80 UHF CB (75 Usable) | ||
| Channel Spacing TX/RX | 12.5KHz | ||
| Channel Spacing RX | 12.5KHz | ||
| Operating modes | Simplex, Duplex | ||
| Scanning Speed | 150msec/per channel | ||
| Antenna Impeadance | 50 Ohm | ||
| Battery Capacity | 7.4V, 2600mAh, Li-ion Battery. Operating time up to 20 hours on High TX power, 30 hours on Low Tx power with antenna. | ||
| Frequency Stability | +/- 2.5ppm | ||
|
Transmitter |
|||
| RF Output Power | 5 Watts max. | ||
| Modulation | FM | ||
| Maximum Deviation | +/- 2.5KHz | ||
| Spurious Emissions | Less than -30dBm | ||
| Tx Frequency Response | +1 to -3dB of 6dB/octave from 300Hz to 3000Hz | ||
| Audio Signal to Noise Ratio | more than 35dB | ||
|
Reciever |
|||
| Circuit Type | Dual conversion by Single DSP chip | ||
| Intermediate Frequencies | IF = 137KHz | ||
| Sensitivity | less than -122dBm at 12dB SINAD | ||
| Selectivity | more than 70dB | ||
| Intermodulation Immunity | more than 70dB | ||
| Spurious Response Immunity | more than 60dB | ||
| Audio Signal to Noise Ratio | More than 50dB | ||
| Receive Frequncy Response | +1 to -3dB of 6dB/octave from 300Hz to 3000Hz | ||
| Conducted Spurious Emissions | Less than -57dBm at 9KHz | ||
KEY SPECIFICATIONS
| SKU | UHF5400 |
| Brand | Oricom |
| Shipping Weight | 1.000000kg |
| Shipping Width | 0.210m |
| Shipping Height | 0.070m |
| Shipping Length | 0.620m |
| Shipping Cubic | 0.009114000m3 |
