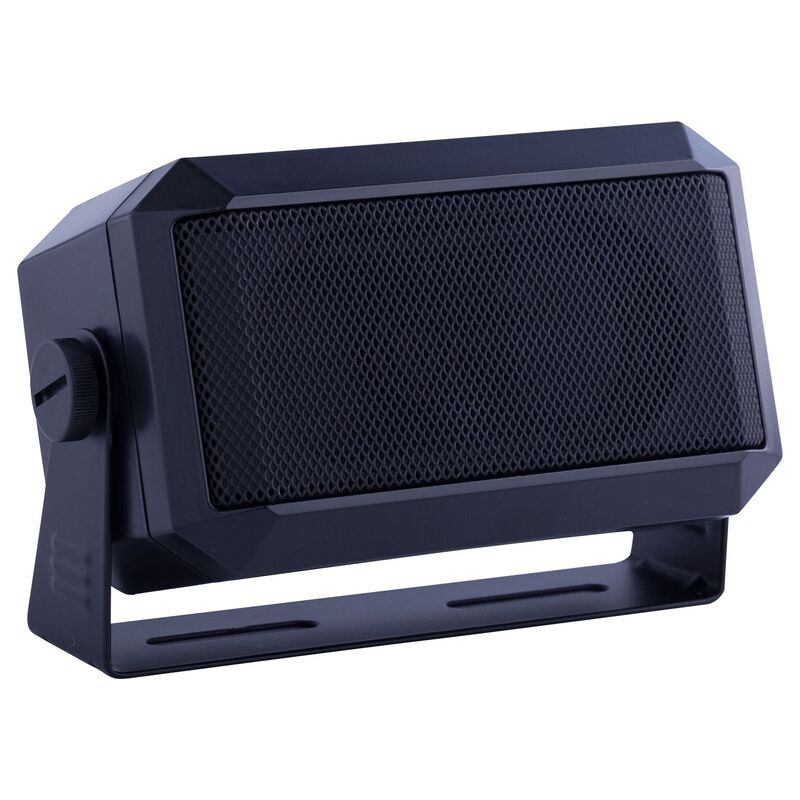

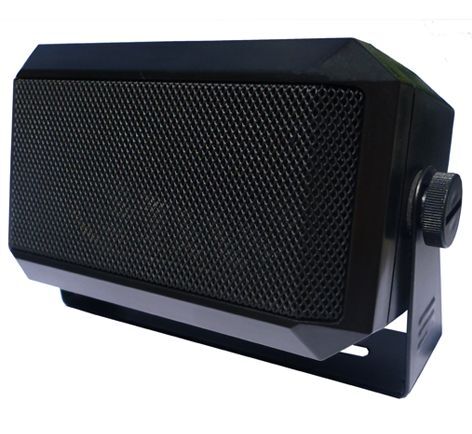

SPE85 External UHF Speaker
The Oricom SPE85 8Ohm External Speaker suitable for use with mobile UHF 2-Way radios
Features
- 8 Ohm Impedance
- Maximum power input 5watt
- Cable Length: 1800mm with 3.5mm jack plug
- Speaker Dimensions: 125mm(w)x
- 55mm(d) x 75mm(h)
- Weight: 270g
- Suitable for use with mobile UHF CB radios
Notes:
- Included in the pack; 2m microphone extension cable, slide in bracket, and mounting hardware
- Requires UHF CB Antenna and mounting bracket (additional)
Specifications
| GENERAL | DTX4200 |
| Compliance | AS/NZS 4365:2011 |
| Frequency Range TX/RX | 476.425 - 477.4125 MHz |
| Number of TX/RX Channels | 80 UHF CB Channels (75 voice) |
| Channel Spacing TX/RX | 12.5KHz |
| Operating modes | Simplex, Repeater TX offset (+750KHz) |
| Scanning Speed | 50 msec per channel |
| Antenna Impedance | 50 Ohms |
| Operating Volts nominal | 13.8VDC to 28VDC |
| Operating Volts Range | 10 to 30VDC |
| Over Voltage Protection | Diode and Voltage regulator system |
| Over Current Protection | 2 AMP fuse |
| Reverse Polarity Protection | Shunt diode |
| Frequency stability | +/- 5 ppm |
| TRANSMITTER | |
| RF Output Power | 5 watts max |
| Modulation | F3E(FM) |
| Maximum deviation | 2.5KHz |
| Spurious Emissions | < -30dBm |
| TX Audio pre-emphasis | +6dB/Octave from 300Hz to 3KHz |
| Current consumption during TX | 1.7 AMP with 50 ohm antenna termination |
| RECEIVER | |
| Circuit Type | Dual conversion super heterodyne |
| Intermediate Frequencies | 1st IF: 21.4MHz, 2nd IF: 450KHz for Main RX |
| Maximum usable sensitivity | - 123dBm for 12dB SINAD (receiver sensitivity) |
| Audio output power | > 2 Watts at 8 ohm load |
| RX Audio de-emphasis | +6dB/Octave from 300Hz to 3KHz |
| Signal to Noise Ratio | > 40dB |
| Conducted Spurious Emission | > -57dBm |
| MECHANICAL | |
| Dimensions (H) X (W) X (D) | 31 x 128 x 147 |
| Weight | 548g transceiver / 200g controller speaker mic |
KEY SPECIFICATIONS
| SKU | SPE85 |
| Barcode # | 9338161003211 |
| Brand | Oricom |
| Shipping Weight | 0.600000kg |
| Shipping Width | 0.190m |
| Shipping Height | 0.070m |
| Shipping Length | 0.330m |
| Shipping Cubic | 0.004389000m3 |
