Universal braided turbo oil feed and drain line kit. Oil drain line With -10AN 45 degree swivel fitting so you can aim the 10AN in whatever direction you need. Very convenient.
PRODUCT APPLICATION- Garrett GT journal bearing GT32, GT4088, GT4294, GT4202, GT4708, GT4718
- Garrett GT3788R
- Garrett GT40/GTX40, including GT4088R, GTX4088R, GT4094R
- Garrett GT42/GTX42, including GT4294R (GT42R), GTX4294R, GT4202R (GT42RS), GTX4202R
- Garrett GT45/GTX45, including GT4508R, GTX4502R, GTX4508R
- Garrett GT47/GTX47, including GT4708R, GTX4708R, GT4718R, GTX4718R
- Garrett GTX5008R, GTX5018R
- Garrett GT55/GTX55, including GT5518R, GTX5518R, GT5533R, GTX5533R, GEN2 GTX5533
- Oil line: Pre-crimped PTFE Teflon braided stainless steel
- Flange: 6061-T6 aircraft aluminum
- Fitting: Mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8

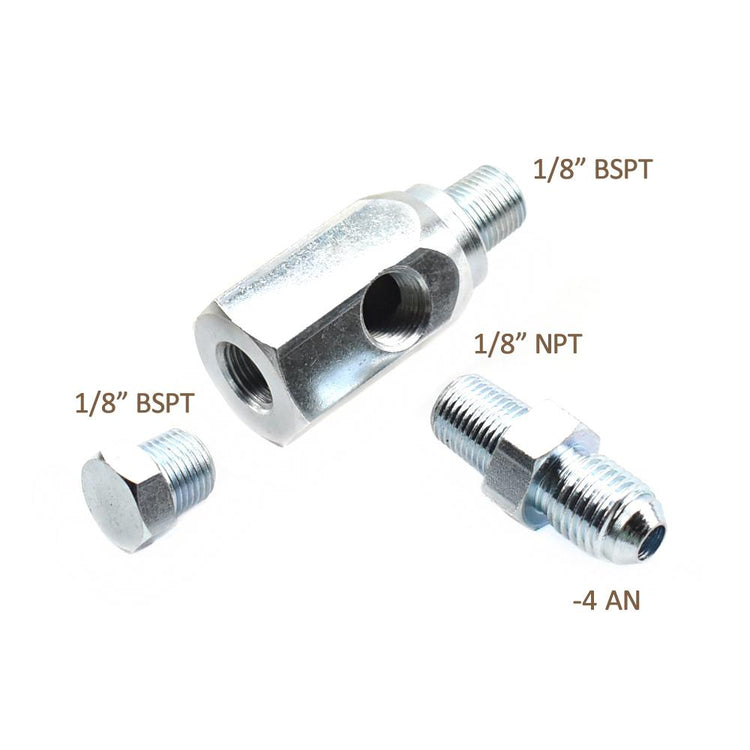

- T-fitting to suit engines with 1/8” BSPT oil pressure switch

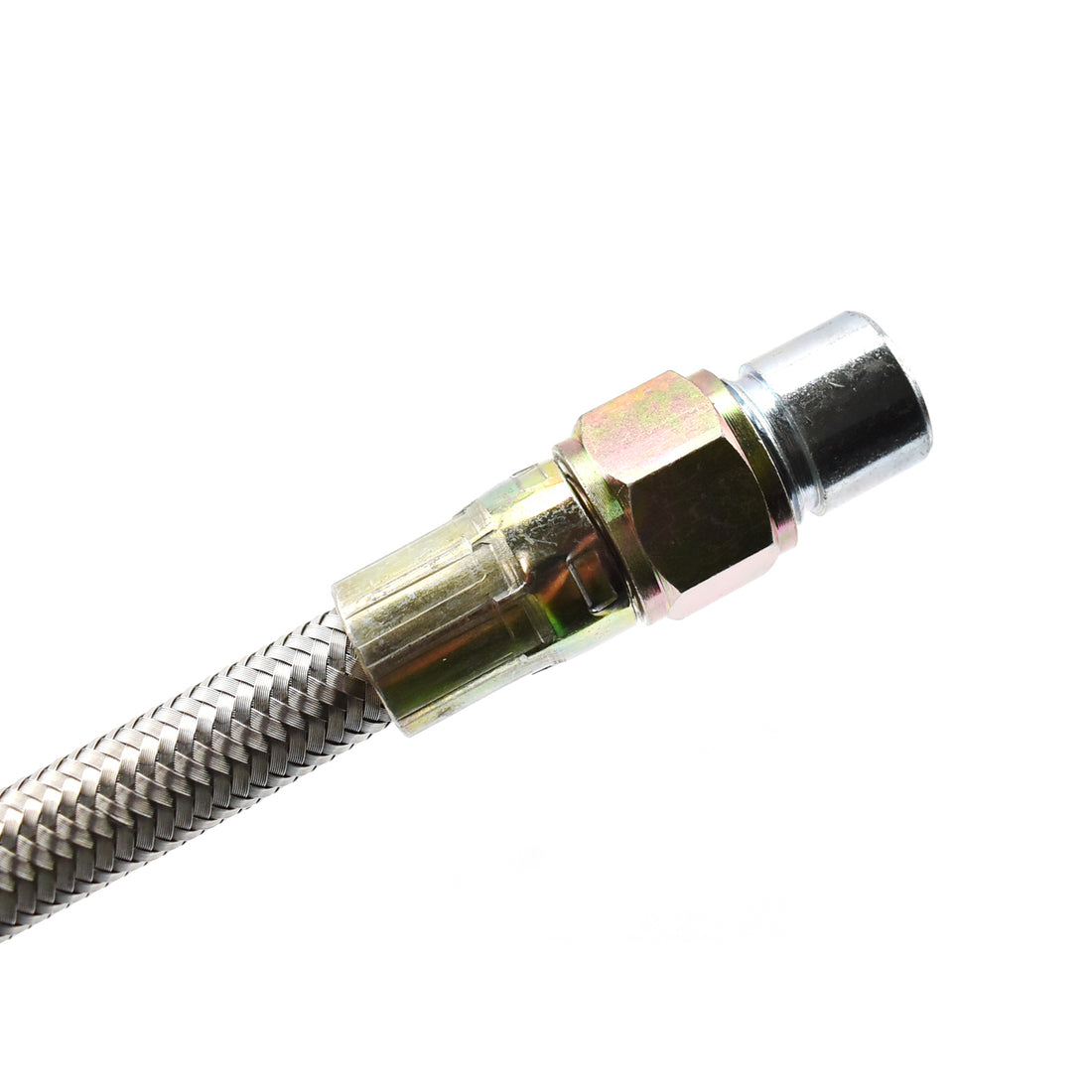

- -4 AN 1/4" Oil feed line 41" long

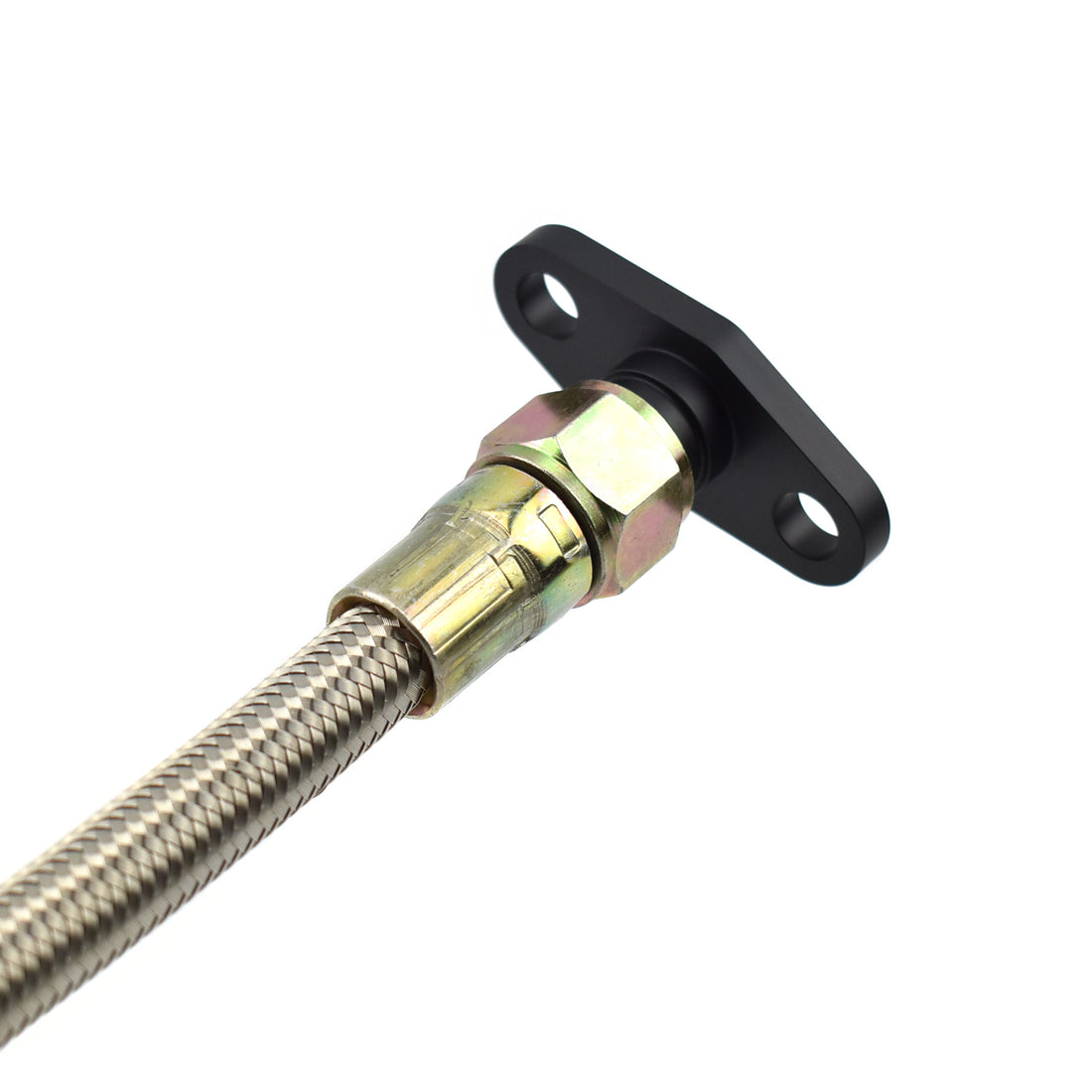

- -4 AN Oil feed flange (2.0mm restricted port)
- Oil feed flange gasket (1mm thickness)
- -10 AN 5/8" Oil drain line 20" long

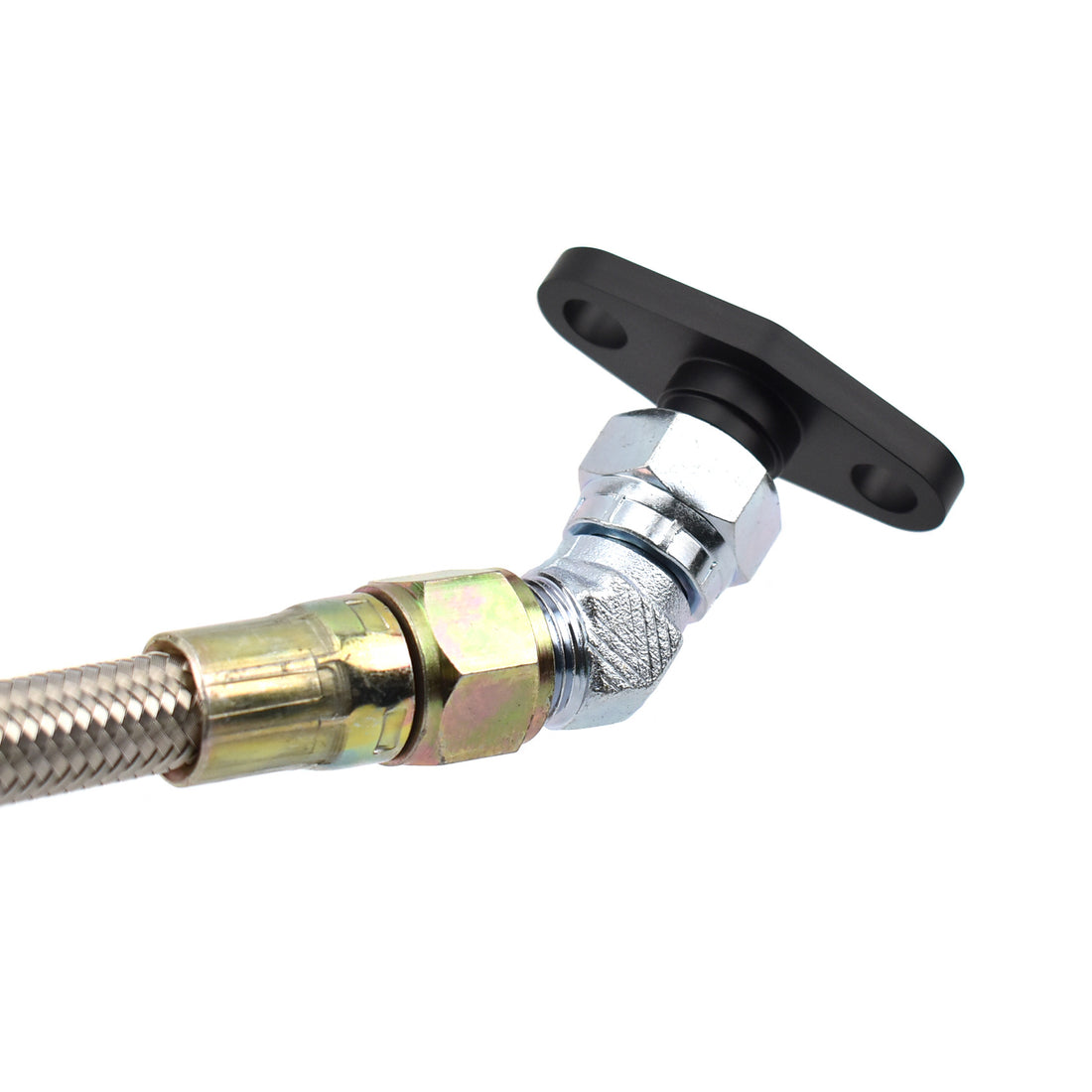

- -10 AN Oil drain flange

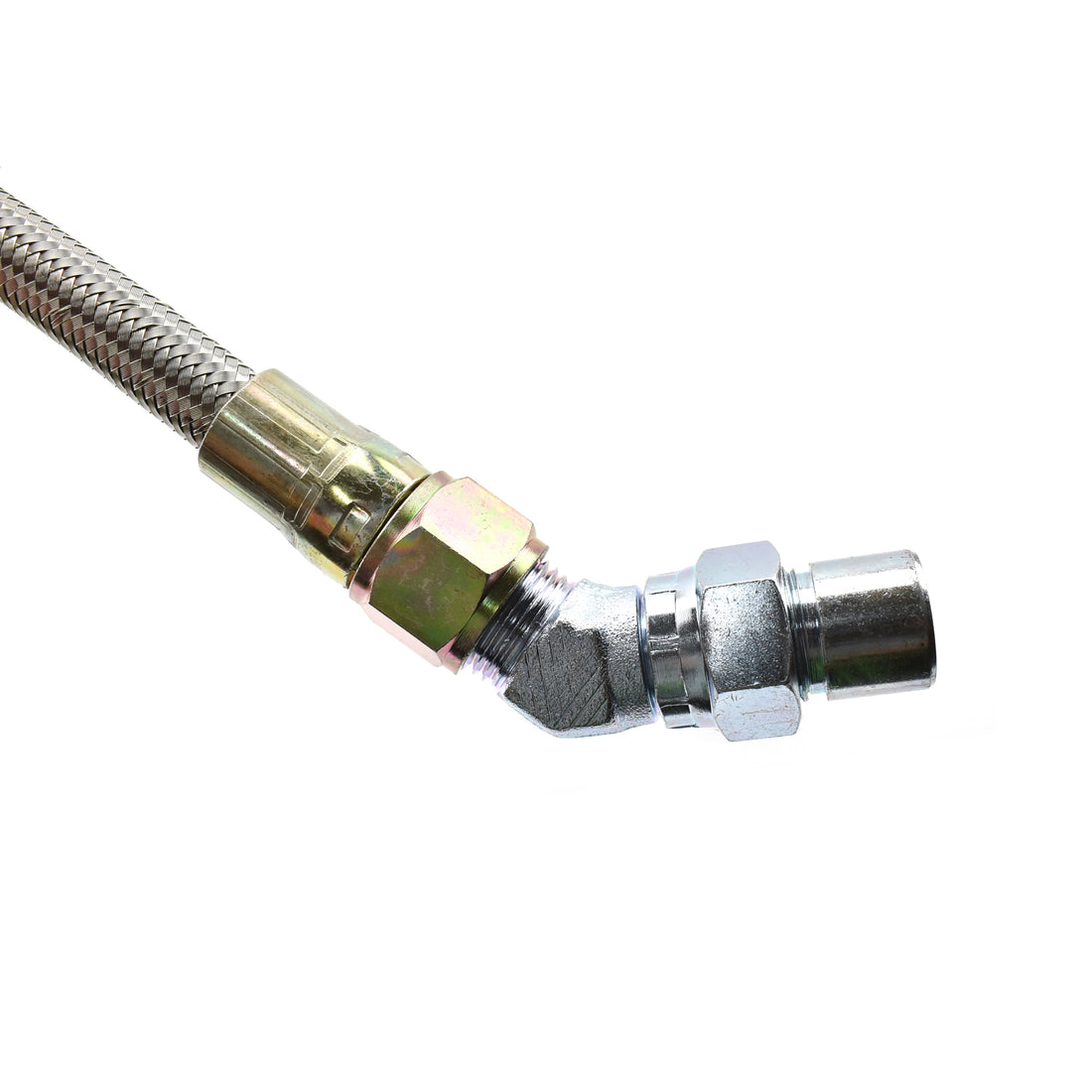

- -10 AN male to female swivel fitting 45 degree
- -10 AN Weld fitting
- Oil drain flange gasket (1mm thickness)
- Bolts
