Universal braided turbo oil feed and drain line kit. Oil drain line With -10AN 45 degree swivel fitting so you can aim the 10AN in whatever direction you need. Very convenient.
PRODUCT APPLICATION
Precision PTE Turbochargers 5558, 5858, 5862, 6262, 6266, 6062, 6466, 6766, 7275, 6870, 6875, 7275, 7675, 7685, 8284, 8847, 8385
PRODUCT MATERIAL- Oil line: Pre-crimped PTFE Teflon braided stainless steel
- Flange: 6061-T6 aircraft aluminum
- Fitting: Mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8

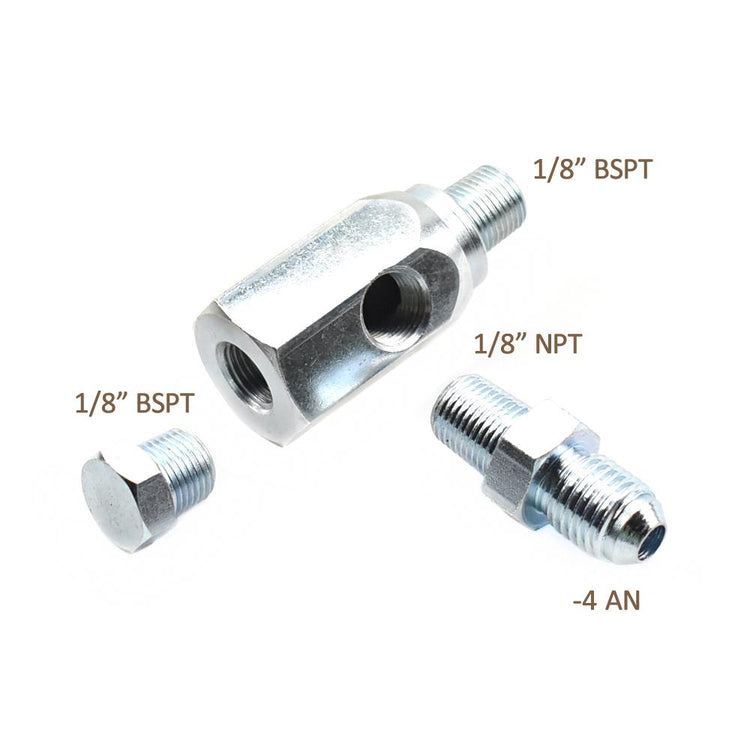

- T-fitting to suit engines with 1/8” BSPT oil pressure switch
- -4 AN 1/4" Oil feed line 41" long

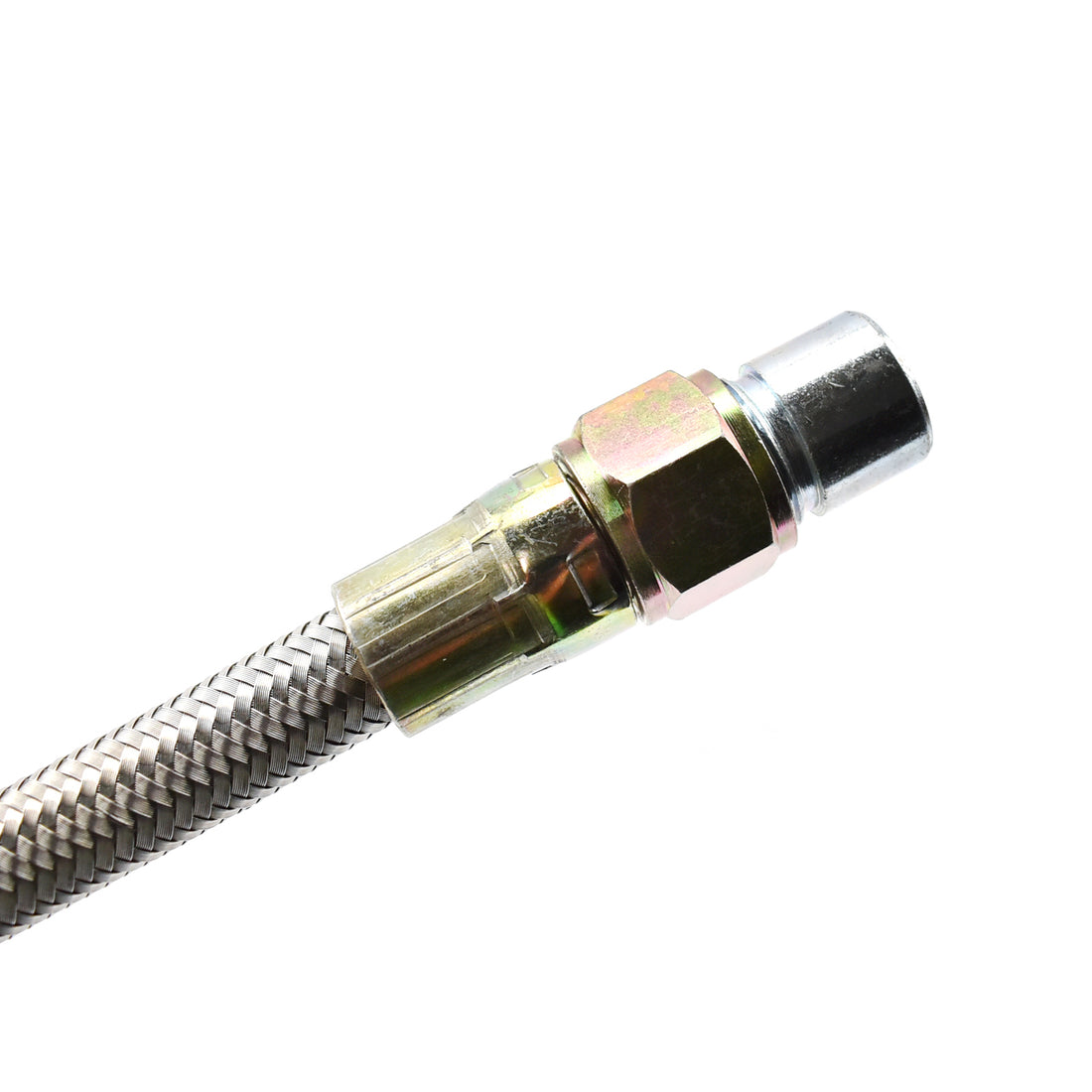

- -4 AN Oil feed fitting (no restricted port)
- -10 AN 5/8" Oil drain line 20" long

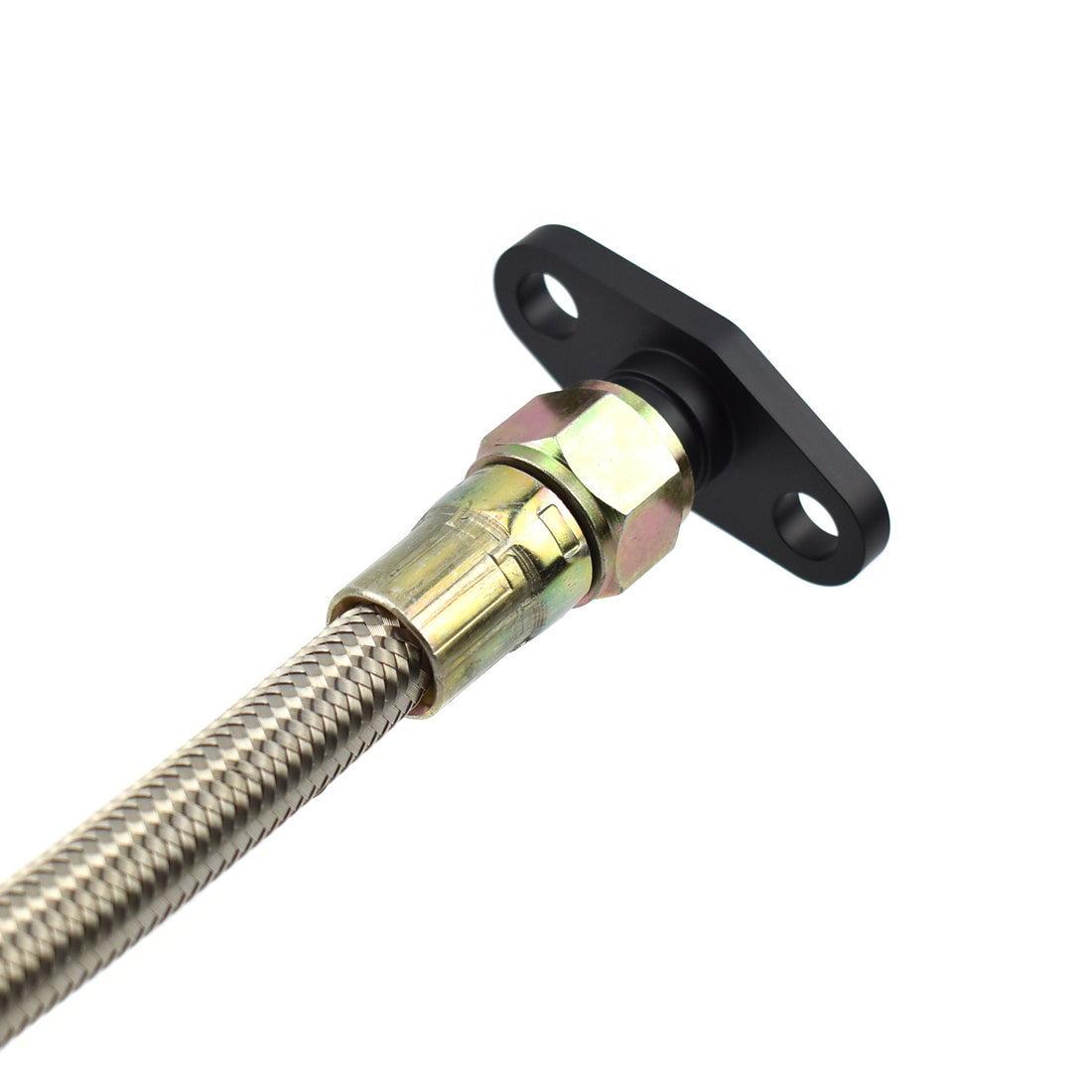

- -10 AN Oil drain flange

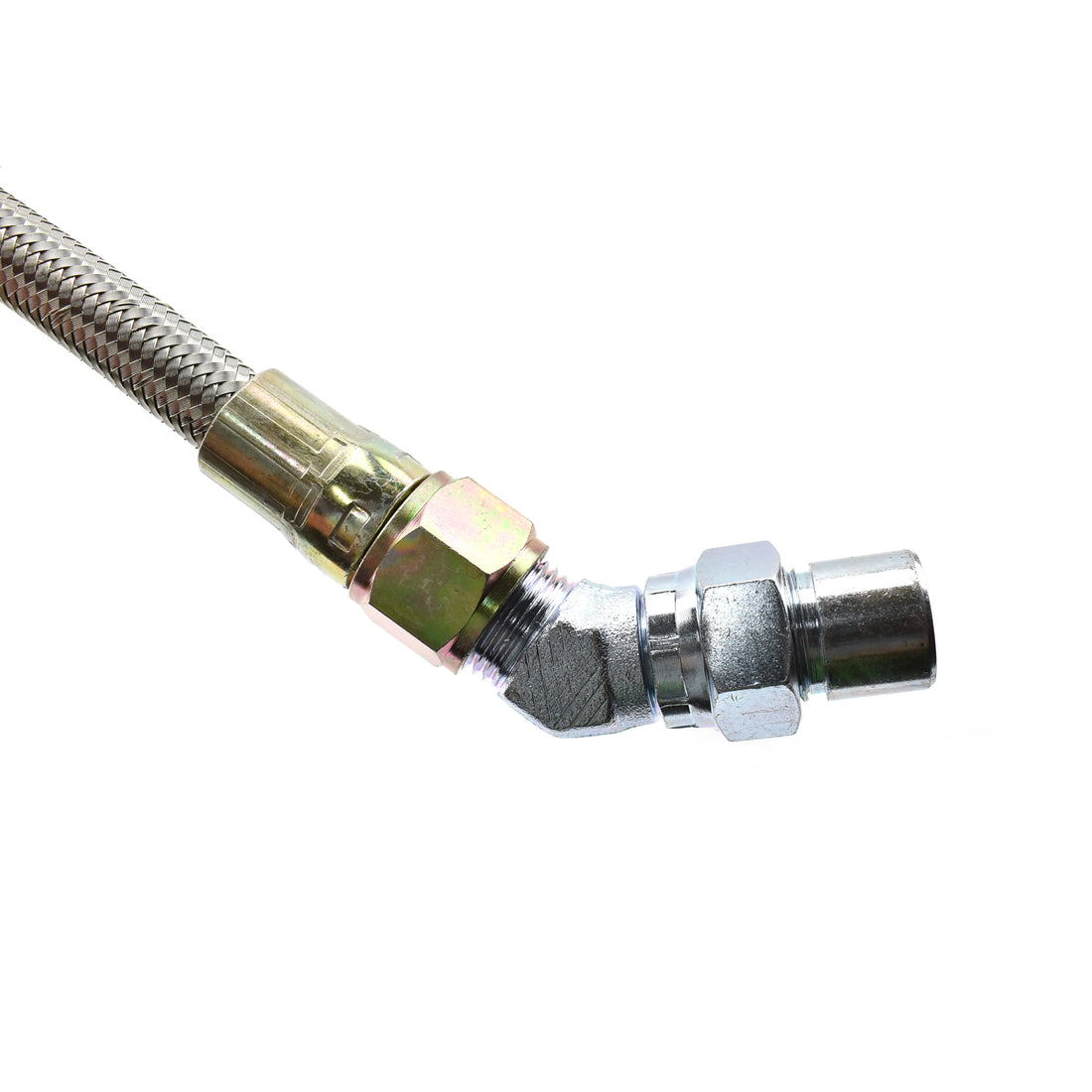

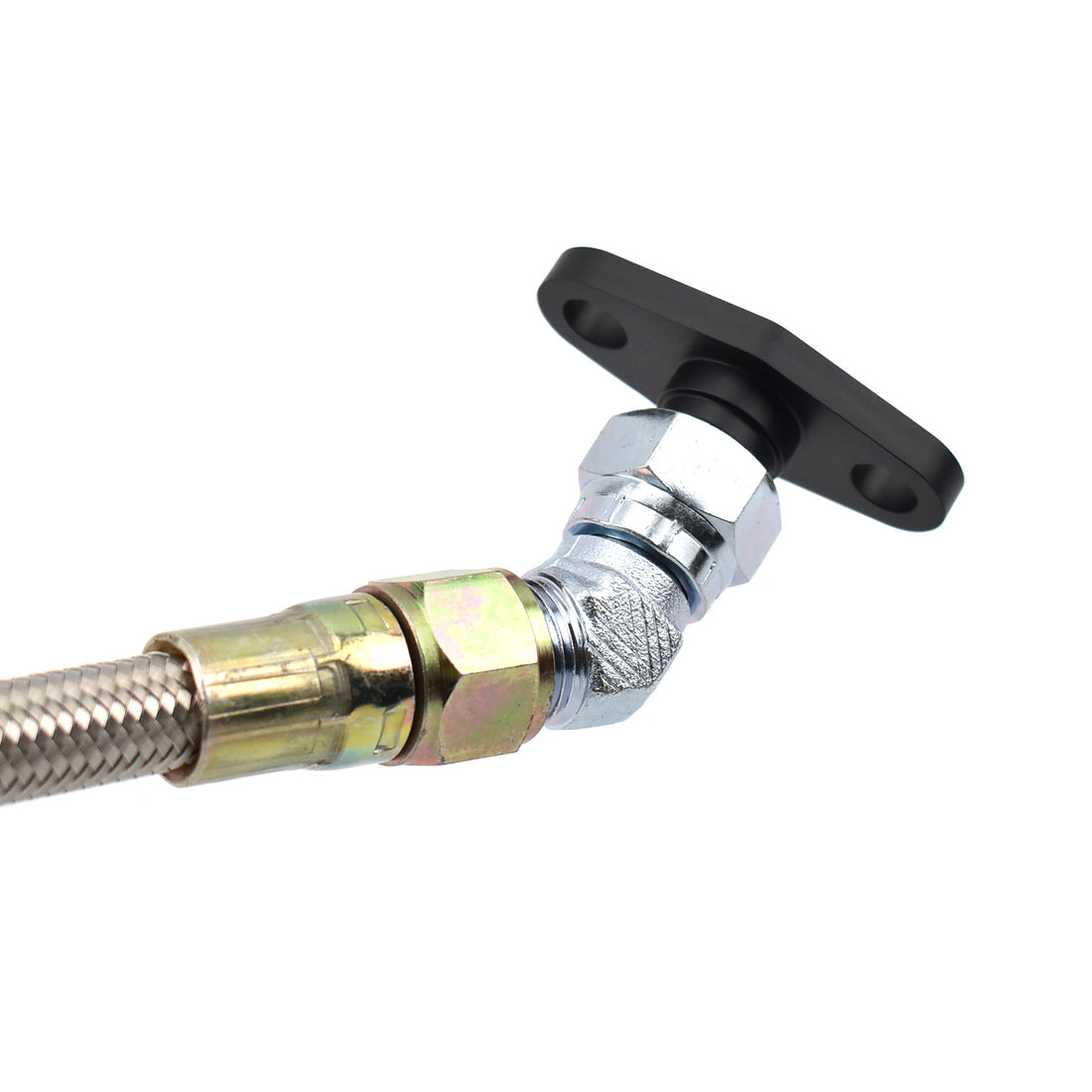

- -10 AN male to female swivel fitting 45 degree
- -10 AN Weld fitting
- Oil drain flange gasket (1mm thickness)
- Bolts
