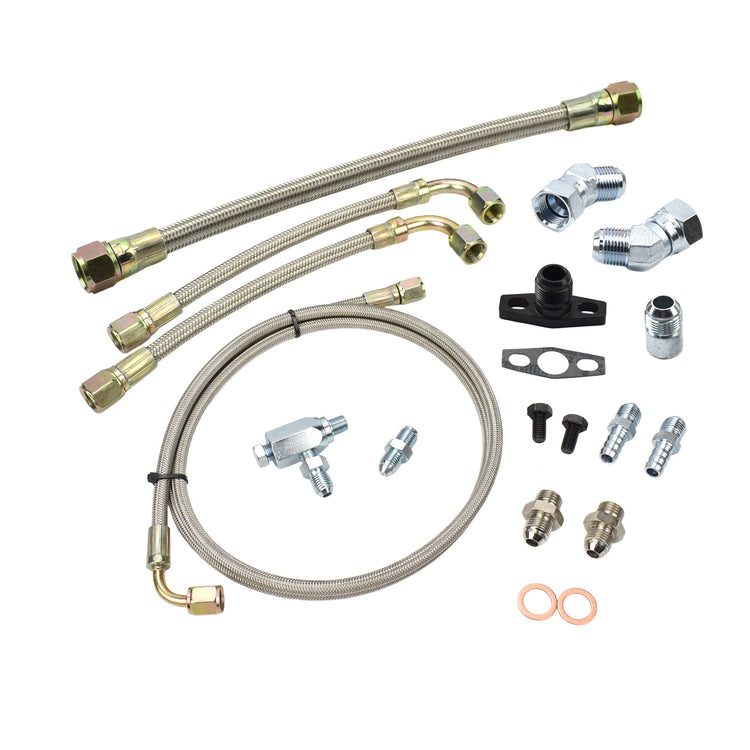

Universal braided turbo oil and water line kit. Oil drain line With -10AN 45 degree swivel fitting so you can aim the 10AN in whatever direction you need. Very convenient.
PRODUCT APPLICATION- Garrett GT GTX series ball bearing turbo GT2554R aka GT25R, GT2560R aka GT28R, GT2860RS, GT2871R, GT2876R aka, GT25/40R, GTX2860R, GTX2863R, GTX2867R, GTX2871R, GT3071R-WG, GT3076R-WG, GTX2967R, GTX2971R, GTX2976R, GT3071R, GT3076R, GT3082R, GTX3067R, GTX3071R, GTX3076R, GT3582R, GTX3576R, GTX3582R, GTX3584RS
- HKS ball bearing turbo GT2510 GT2530 GT2535 GT2540 GT2835R GT3037 GT3037R GT3040 GT3540

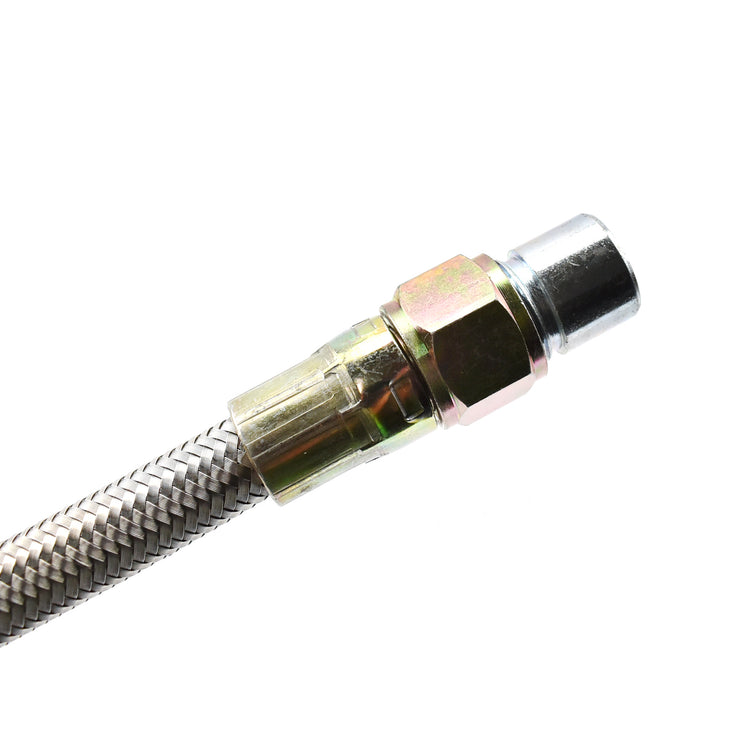

- Oil & water line: Pre-crimped PTFE Teflon braided stainless steel
- Flange: 6061-T6 aircraft aluminum
- Fitting: Mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8

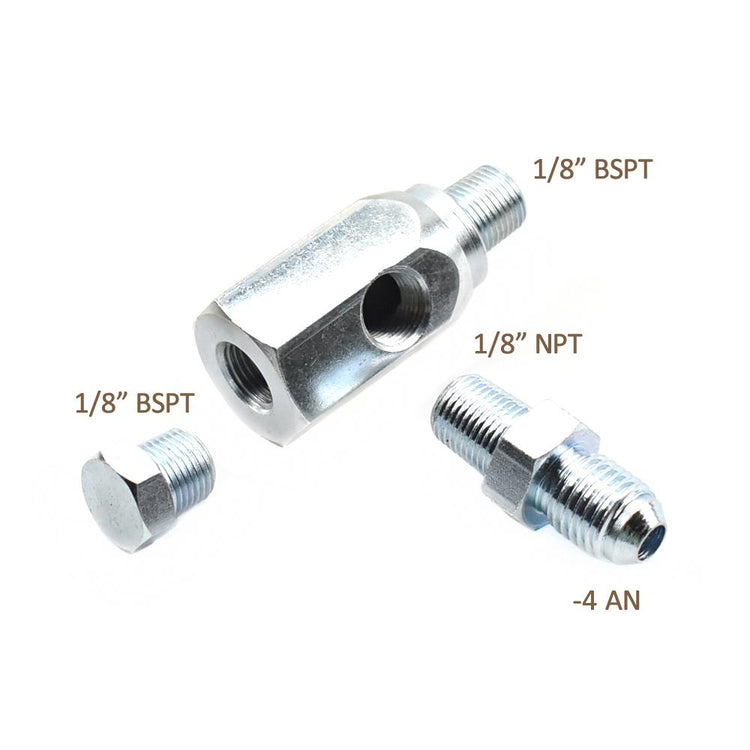

- T-fitting to suit engines with 1/8” BSPT oil pressure switch
- -4 AN 1/4" Oil feed line 41” long

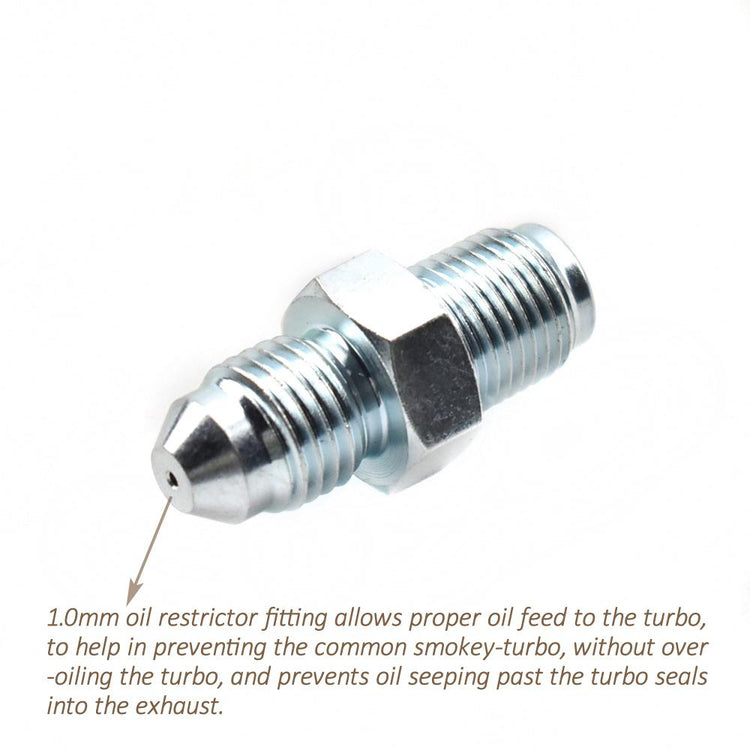

- -4 AN Oil feed fitting (1.0mm restricted port)
- -10 AN 5/8" Oil drain line 20” long

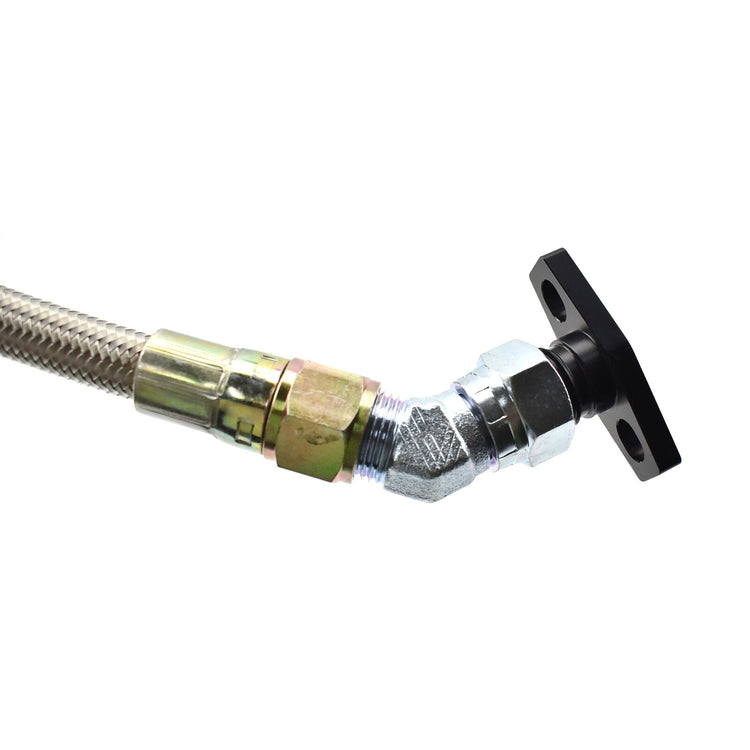

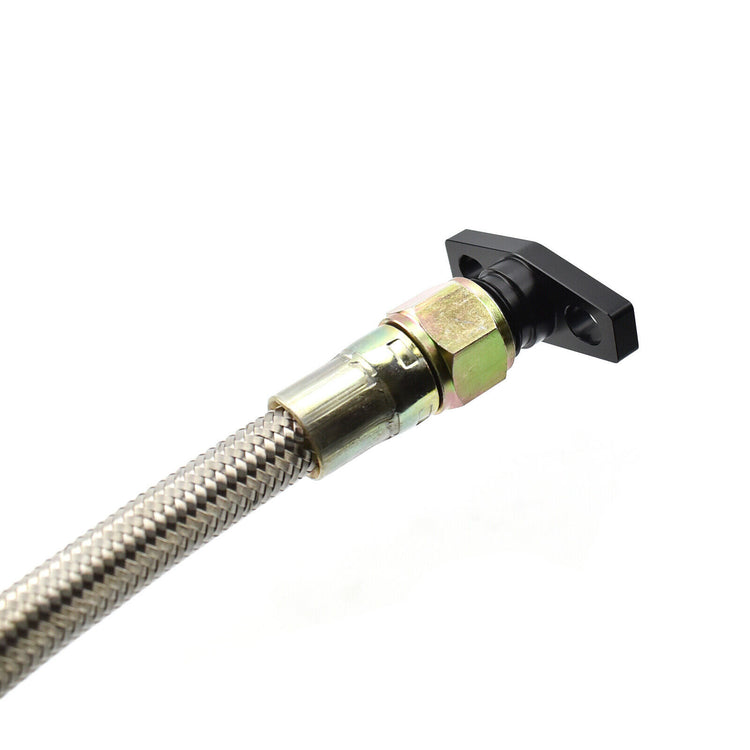

- -10 AN Oil drain flange

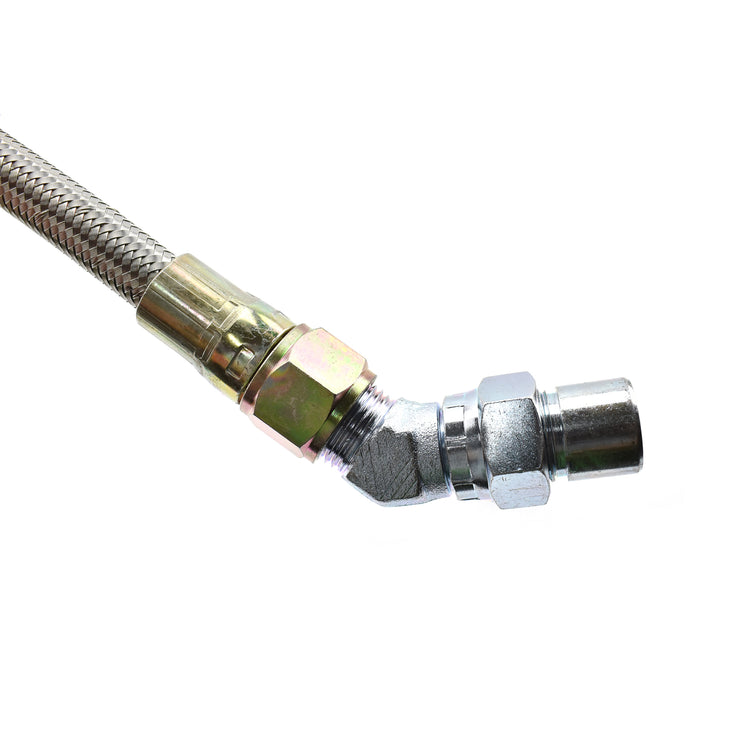

- -10 AN male to female swivel fitting 45 degree
- -10 AN Weld fitting
- -6 AN 3/8" Water lines 10" long
- -6 AN Water adapter fittings
- -6 AN to 3/8” barb fittings
- Oil drain flange gasket (1mm thickness)
- Copper crush washer (1mm thickness)
- Bolts
