The stock line has an o-ring seal that allows adjustment in both directions. After hundreds of heat cycles, the o-ring cooks itself and starts to leak oil onto the turbo. This kit fixes the current stock oil line leak that happens when the line gets too hot, too many times.
PRODUCT APPLICATION
Fits the Citroen C4 C5 DS3 DS4 DS5 Turbo EP6DT, EP6CDT, EP6CDTX, EP6DTS 1.6THP 16V
- Replace OE number: 037956
- Turbo OE number: 0375N7, 0375R4, 0375T3, 9809028880, 9803546480, V760088280-01
- Turbo part number: 5303-970-0121, 5303-988-0426, 5303-988-0292, 5303-988-0180
PRODUCT MATERIAL
- Oil line: Pre-crimped PTFE Teflon braided stainless steel
- Fitting: mild steel

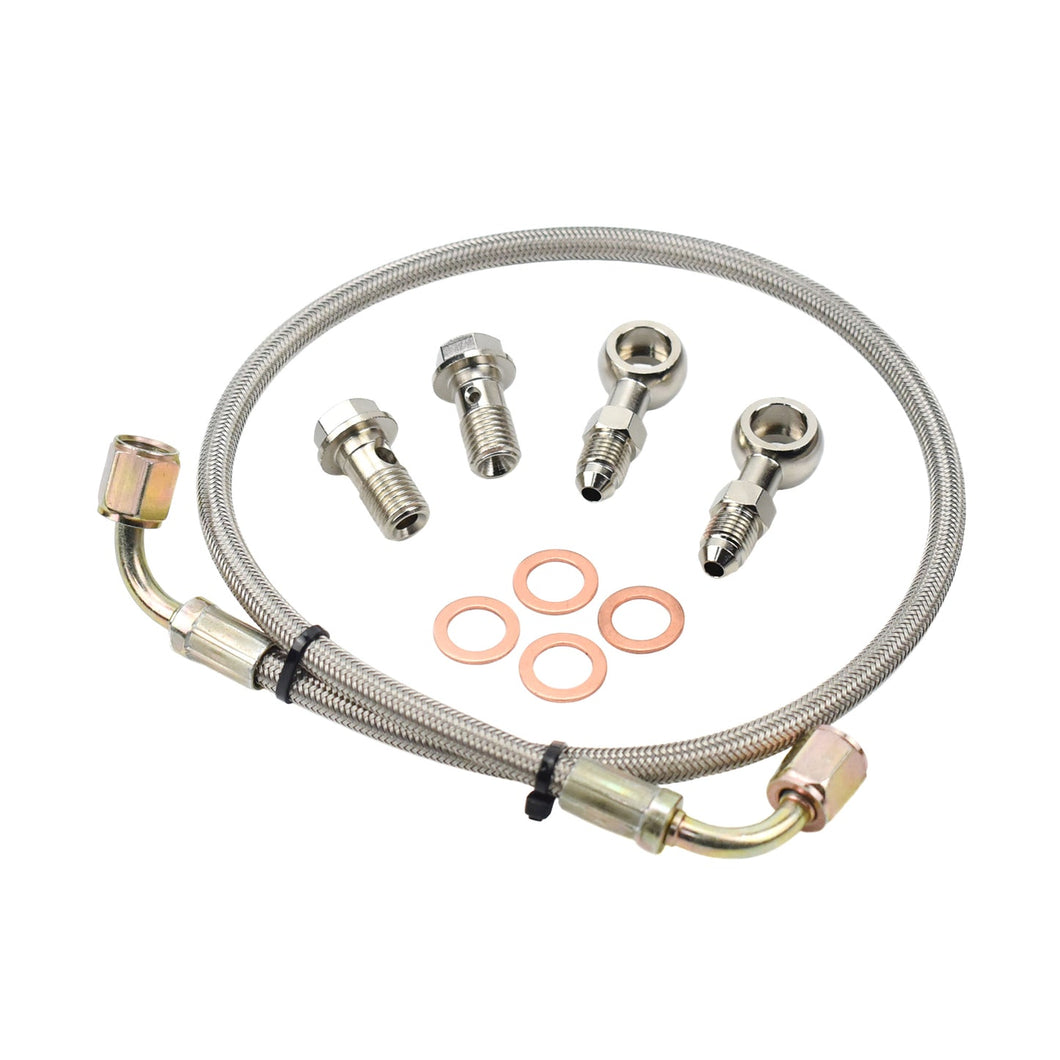

KIT INCLUDES
- 1x -4AN 1/4" Oil feed line
- 2x Banjo eye fitting
- 1x Banjo bolt (1.8mm restricted port)
- 1x Banjo bolt (no restricted port)
- 4x Copper crush washer (1mm thickness)
