This kit is for a single turbo conversion on a 1JZ-GTE or 2JZ-GTE.
PRODUCT APPLICATION
Toyota 1JZ-GTE 2JZ-GTE top mount with Mitsubishi / TRUST GReddy T67-25G TE06H TD07S TD08.
PRODUCT MATERIAL
- Oil line: Pre-crimped PTFE Teflon braided stainless steel
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8

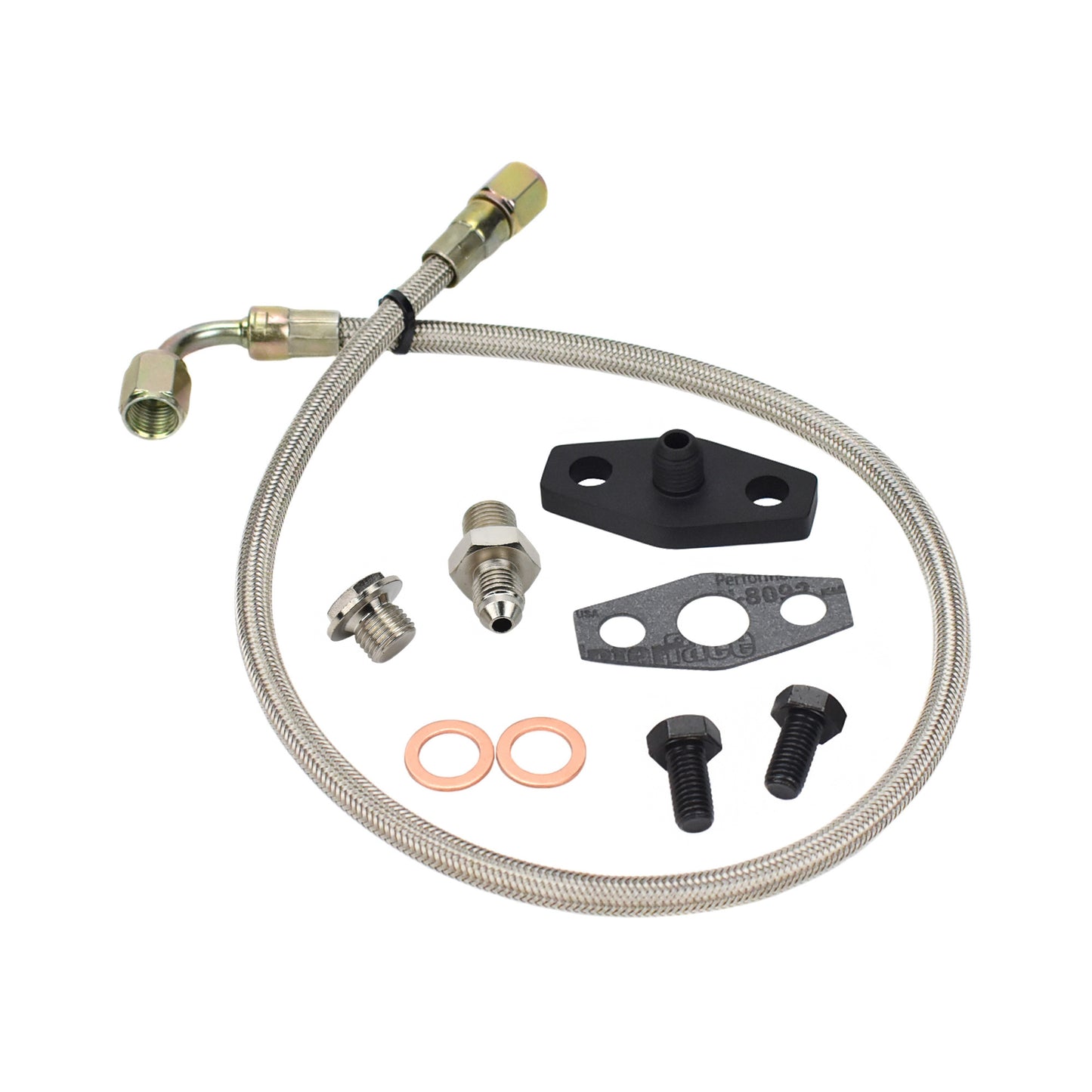

KIT INCLUDES
- -4 AN 1/4" Oil feed line
- -4 AN Oil adapter fitting to engine oil supply
- -4 AN Oil feed flange (2.0mm restricted port)
- Oil feed flange gasket (1mm thickness)
- Copper crush washer (1mm thickness)
- Oil feed block off plug
- Bolts
