PRODUCT DESCRIPTION

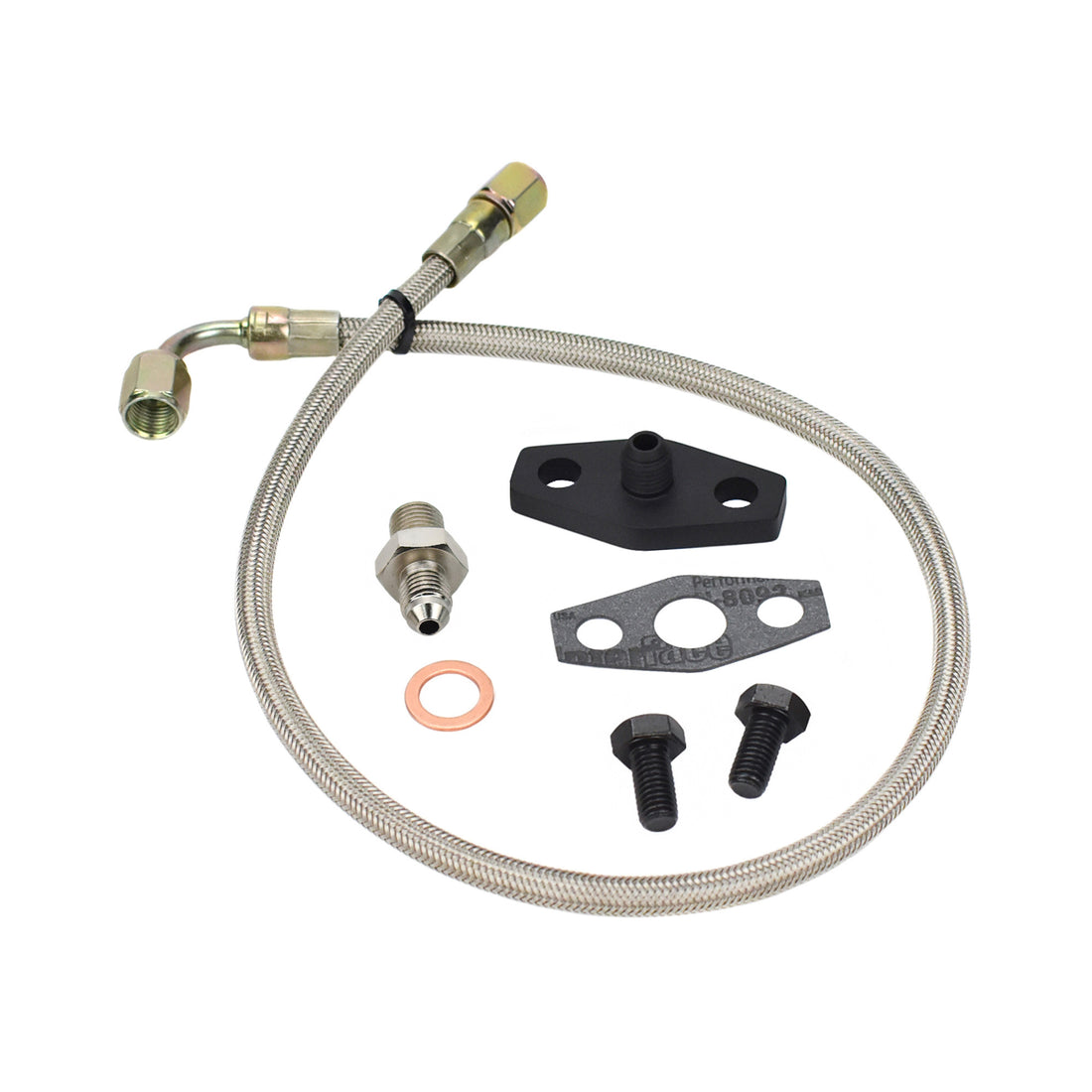

Braided turbo oil feed line for 1HD with Holset HX turbo conversion.
PRODUCT APPLICATION
Toyota 1HD-T/FT/FTE with stock mount Holset Super HX30W turbo.
PRODUCT MATERIAL- Oil line: Pre-crimped PTFE Teflon braided stainless steel
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8
- -4 AN 1/4" oil feed line
- -4 AN oil fitting to engine oil supply
- -4 AN oil feed flange (2.0mm restricted port)
- Oil feed flange gasket (1mm thickness)
- Copper crush washer (1mm thickness)
- Bolts
