Turbo oil feed and return lines for XR6 with Garrett mid frame turbo conversion.
PRODUCT APPLICATION
Ford Falcon XR6 BA/BF FPV FG F6 Barra 240T 245T 270T 310T with top mount Garrett GT4088R GT4094R GT4294R GTX4294R GTX4202R
NOTE: Does not fit XR6 stock turbo Garrett GT3576R GT3582R GT3584R
PRODUCT FEATURES
This product utilizes a 400 mesh "bucket" conical-shaped screen filter element which has more surface area to filter than competitors’ “flat” styled filters. The conical-style filter provides more area for trapping actual debris and debris particles will move down to the bottom outer edge of the filter which leaves the rest of the filter free from debris build up. So, will not compromising the screen’s flow rate nor negatively affects the oil pressure as it enters the feed line.

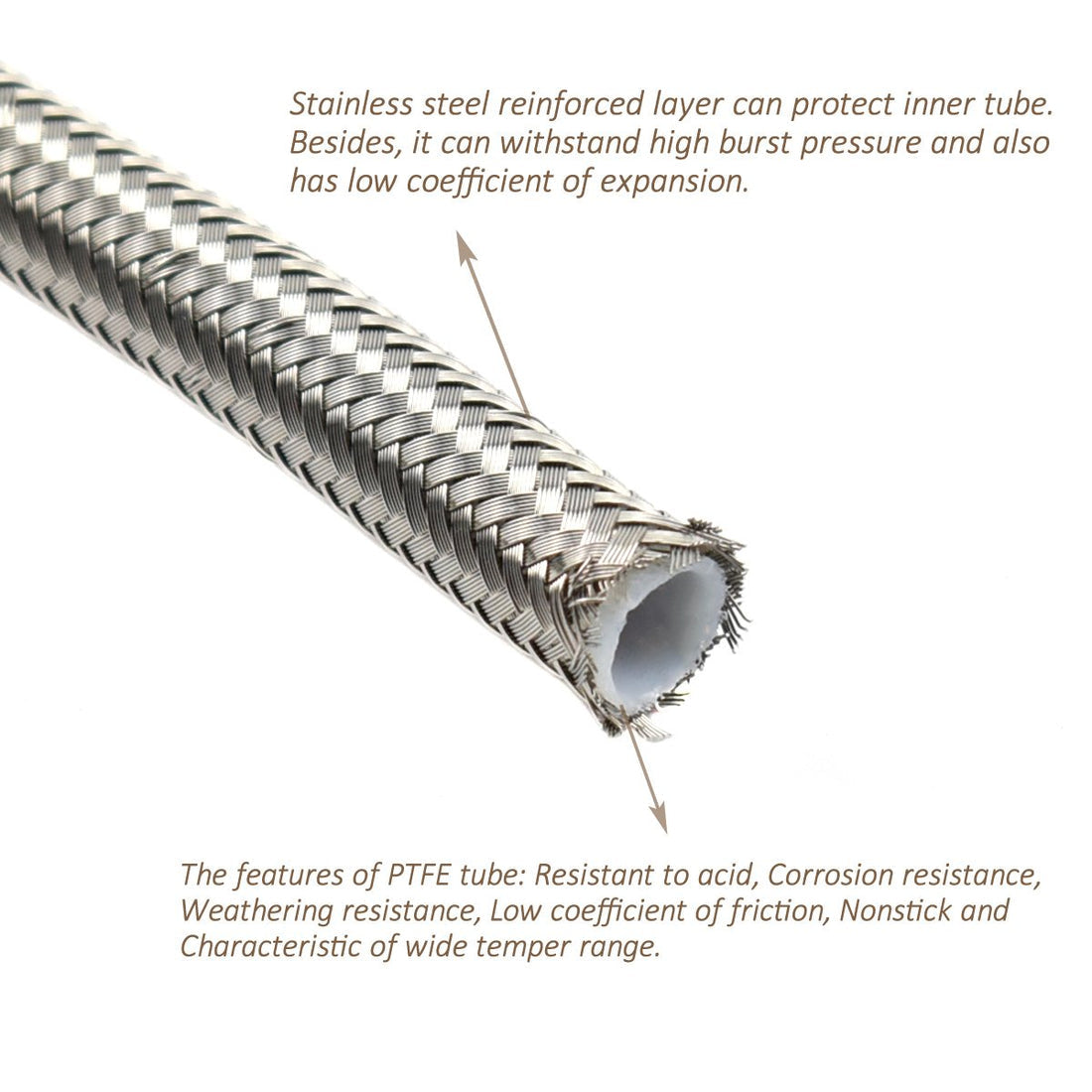

PRODUCT MATERIAL- Oil feed line: Pre-crimped PTFE Teflon braided stainless steel

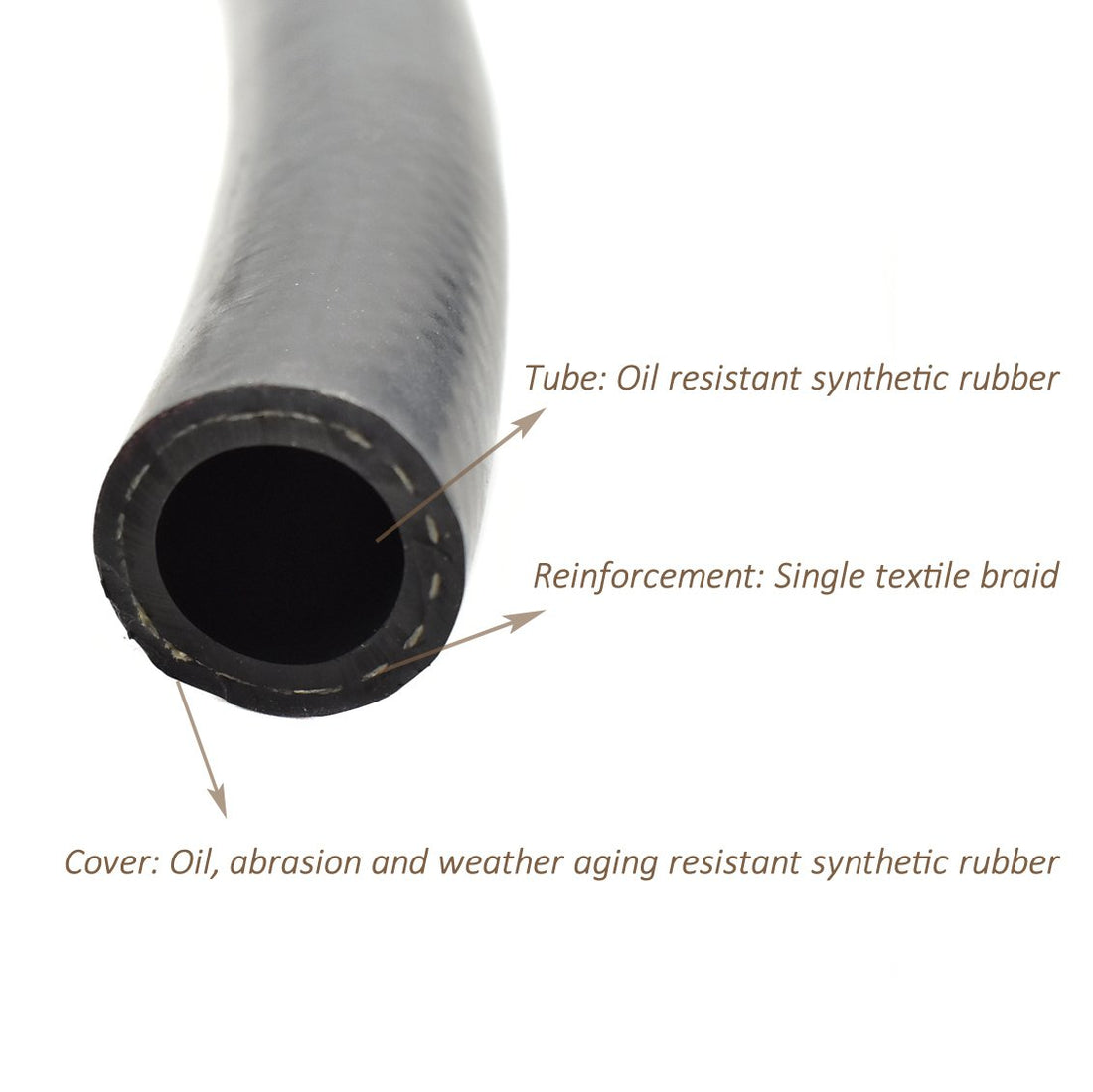

- Oil drain hose: NBR (Nitrile Butadiene Rubber)
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8
- Filter housing & fitting: 6061-T6 aircraft aluminum
- Filter screen: Stainless steel
- O-Ring: Nitrile rubber N70(Black)、VT75(Brown)
- -4 AN 1/4" Oil feed line
- -4 AN Oil feed flange (2.0mm restricted port)

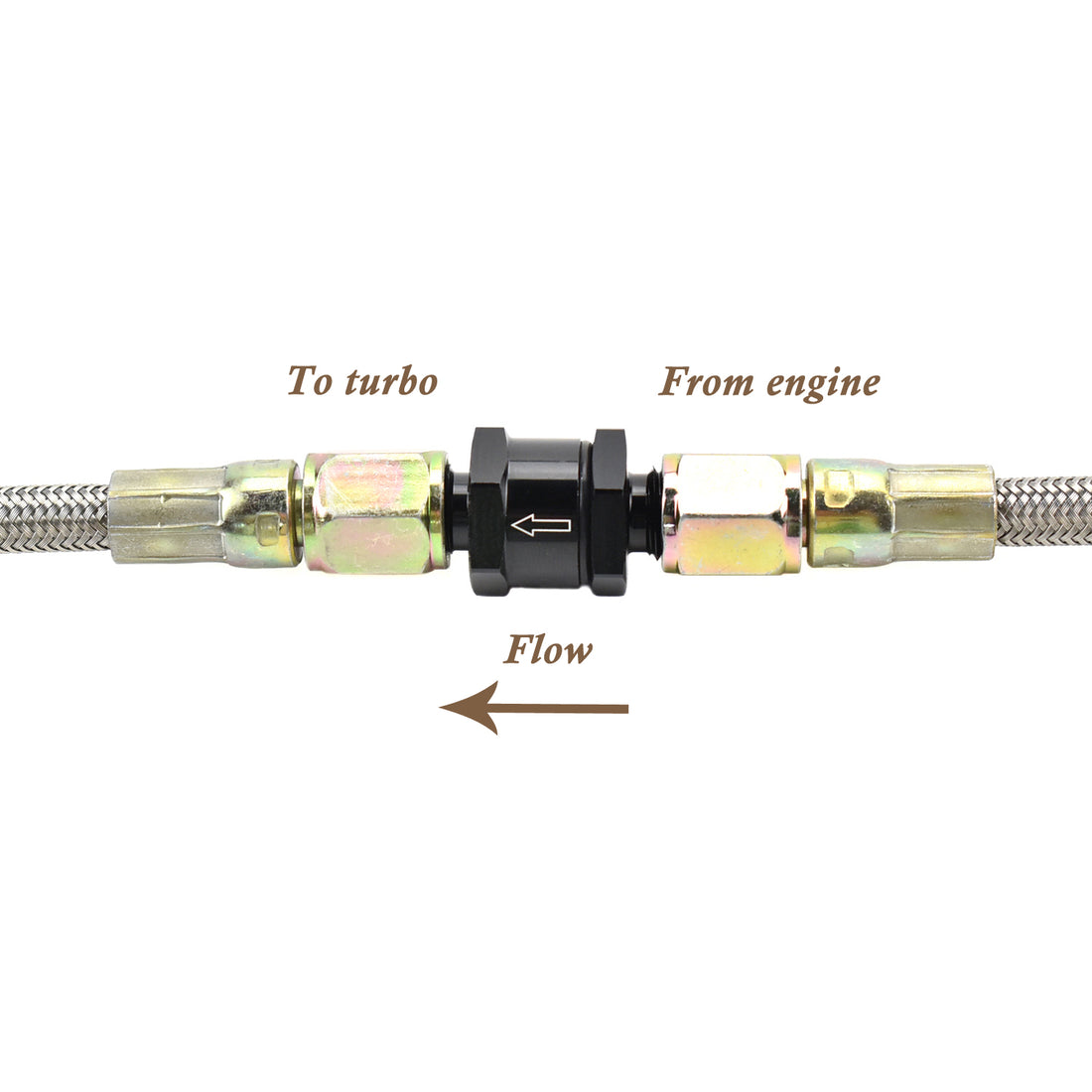

- -4 AN Oil filter
- T-Fitting to adapt the factory pressure sensor
- Oil feed gasket (1mm thickness)
- Oil drain hose
- Oil drain flange - turbo side
- Oil drain flange - engine side
- Oil drain gasket (1mm thickness)
- 45 degree swivel fitting
- Clamps
- Bolts
