PRODUCT DESCRIPTION
This kit is made to fit most manifold and turbo configurations.
PRODUCT APPLICATION
Holden Commodore VL RB30ET with top mount Garrett G-Series such as G40-900 G40-1150 G42-1200 G42-1450 G45-1125 G45-1350 G45-1500 turbo.
- Oil feed line: Pre-crimped PTFE Teflon braided stainless steel
- Oil drain hose: NBR (Nitrile Butadiene Rubber)
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8

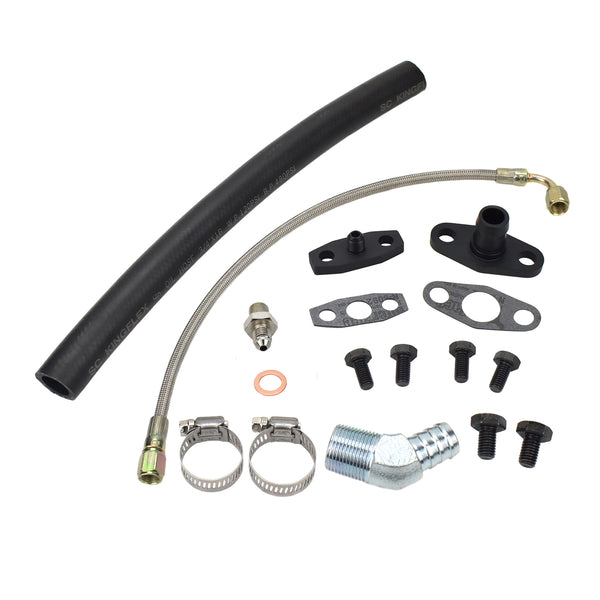

- -4 AN 1/4" Oil feed line
- -4 AN Oil feed flange (2.0mm restricted port)
- Oil feed flange gasket (1mm thickness)
- Bolts
- -4 AN Oil adapter fitting to engine oil supply
- Copper crush washer (1mm thickness)
- Oil drain hose
- Oil drain flange
- Oil drain flange gasket (1mm thickness)
- 45 Degree elbow fitting to oil pan
- Clamps
