Turbo Oil Feed Return Line Kit Nissan TD42 GU with Garrett GT28R

Turbo oil feed and return line for Garrett ball bearing turbo conversion.

PRODUCT APPLICATION

Nissan Patrol GU TD42T TD42Ti 4.2L turbo engine with Garrett GT28R ball bearing turbocharger

NOTE: Does not fit Nissan Patrol GQ TD42 N/A engine.

• Oil line: Pre-crimped PTFE Teflon braided stainless steel
• Oil drain hose: NBR (Nitrile Butadiene Rubber)
• Flange: 6061-T6 aircraft aluminum
• Fitting: mild steel
• Gasket: Interface N-8092 Nonasbestos
• Bolts: High tensile class 8.8

• -4 AN 1/4" Oil feed line

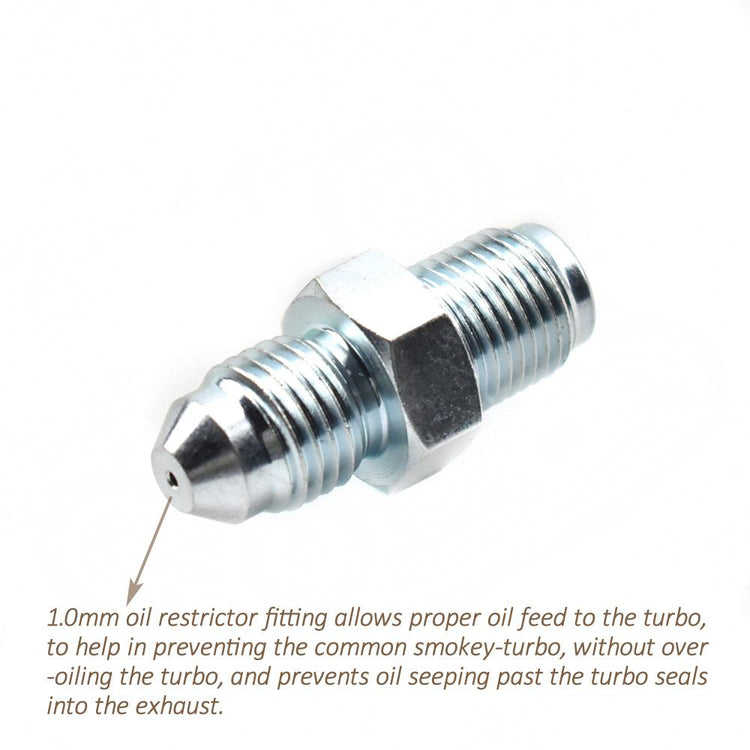

• -4 AN Oil feed fitting (1.0mm restricted port)
• -4 AN oil banjo eye and bolt to engine oil supply
• Copper crush washer (1mm thickness)
• Oil drain hose
• Oil drain flange
• Oil drain flange gasket (1mm thickness)
• 45 Degree elbow fitting to oil pan
• Clamps
• Bolts
