Turbo oil feed and return line for 1HD with TD05H turbo conversion.
PRODUCT APPLICATION
Toyota 1HD-T/FT/FTE with TD05H-16G 18G 20G water-cooled turbocharger
PRODUCT MATERIAL
- Oil feed line: Pre-crimped PTFE Teflon braided stainless steel

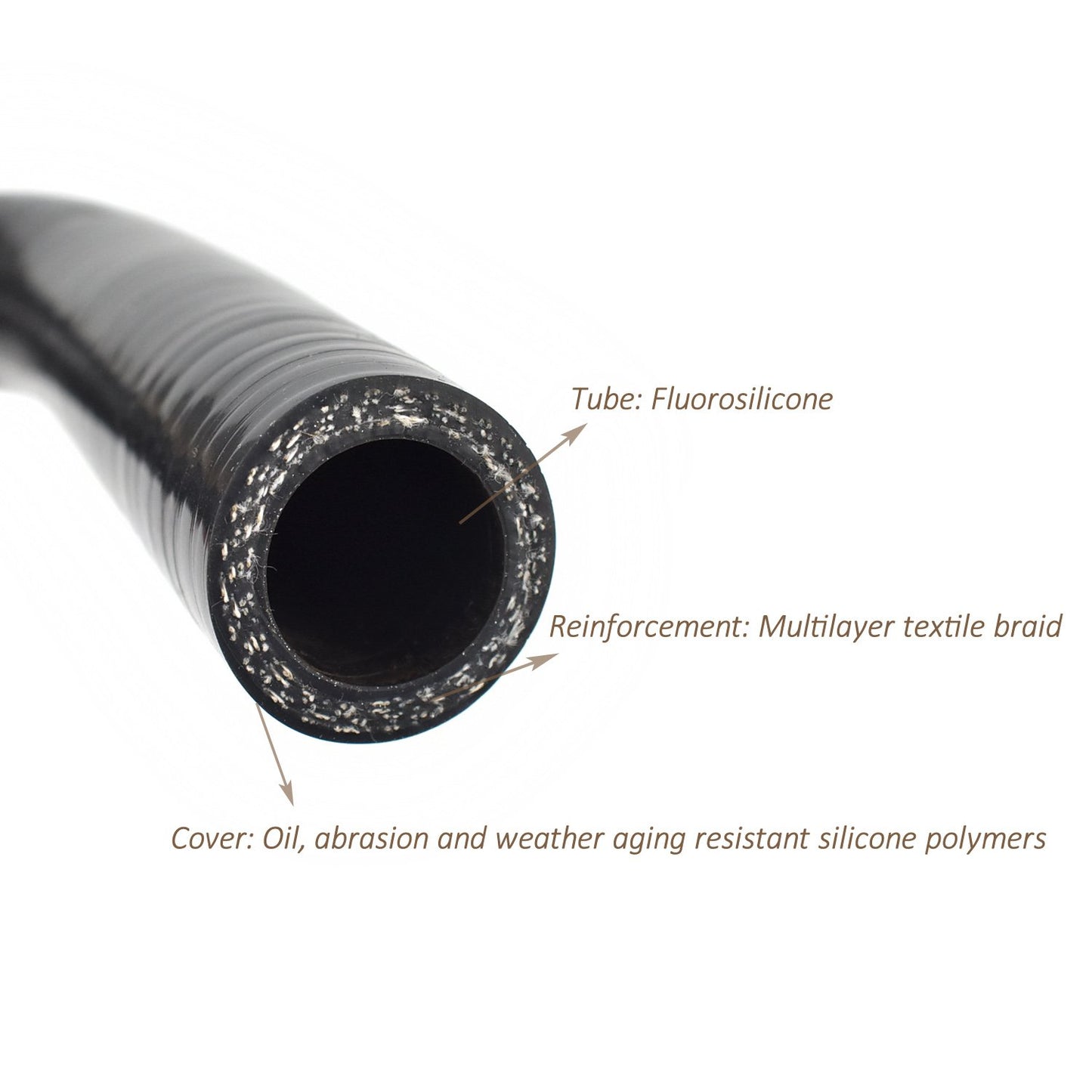

- Oil drain hose: Silicone polymers
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8
KIT INCLUDES
- -4 AN 1/4" oil feed line
- -4 AN oil feed fitting (1.8mm restricted port)
- -4 AN oil fitting to engine oil supply
- Copper crush washer (1mm thickness)
- Oil drain hose
- Oil drain flange
- Oil drain Gasket (1mm thickness)
- Clamps
- Bolts
