Turbo Oil Feed Return Line Kit Vauxhall Opel Zafira Astra Z20LET Garrett G-Series G25 G30

Turbo oil feed and return line kit for Garrett G-Series Conversion.

PRODUCT APPLICATION

Vauxhall Opel Zafira Astra Z20LEL Z20LER Z20LEH Z20LET with stock mount Garrett G-Series such as G25-550 G25-660 G30-660 G30-770 G30-900 ball bearing turbo.

• Oil line: Pre-crimped PTFE Teflon braided stainless steel
• Oil drain hose: Hose: NBR (Nitrile Butadiene Rubber)
• Flange: 6061-T6 aircraft aluminum
• Fitting: mild steel
• Gasket: Interface N-8092 Nonasbestos
• Bolts: High tensile class 8.8

• -4 AN Oil feed line

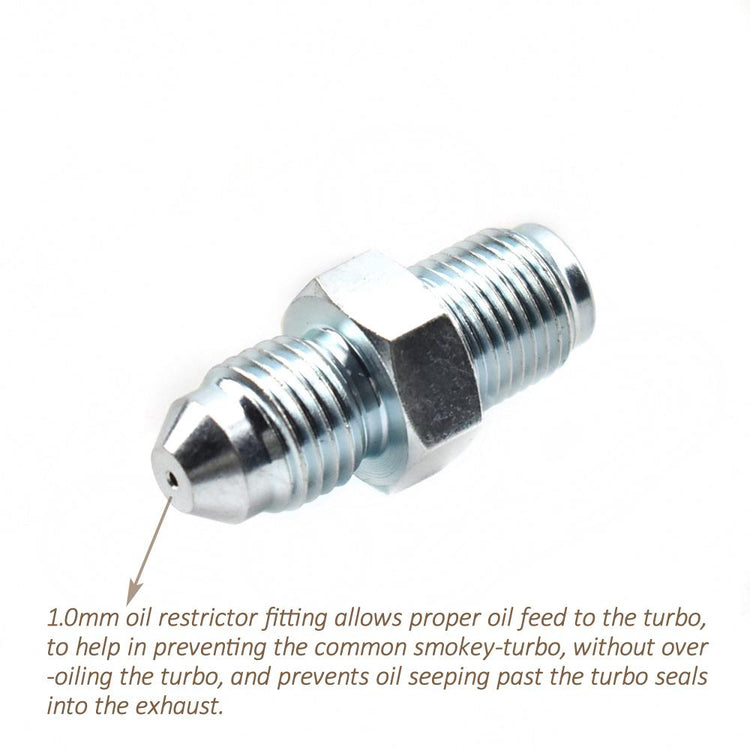

• -4 AN Oil feed fitting (1.0mm restricted port)
• -4 AN Oil fitting to engine oil supply
• Copper crush washer (1mm thickness)
• R type clamp
• Oil drain hose
• Oil drain flange - turbo side
• Oil drain gasket (1mm thickness)
• Oil drain fitting - engine side
• 45 degree swivel fitting
• Clamps
• Bolts
