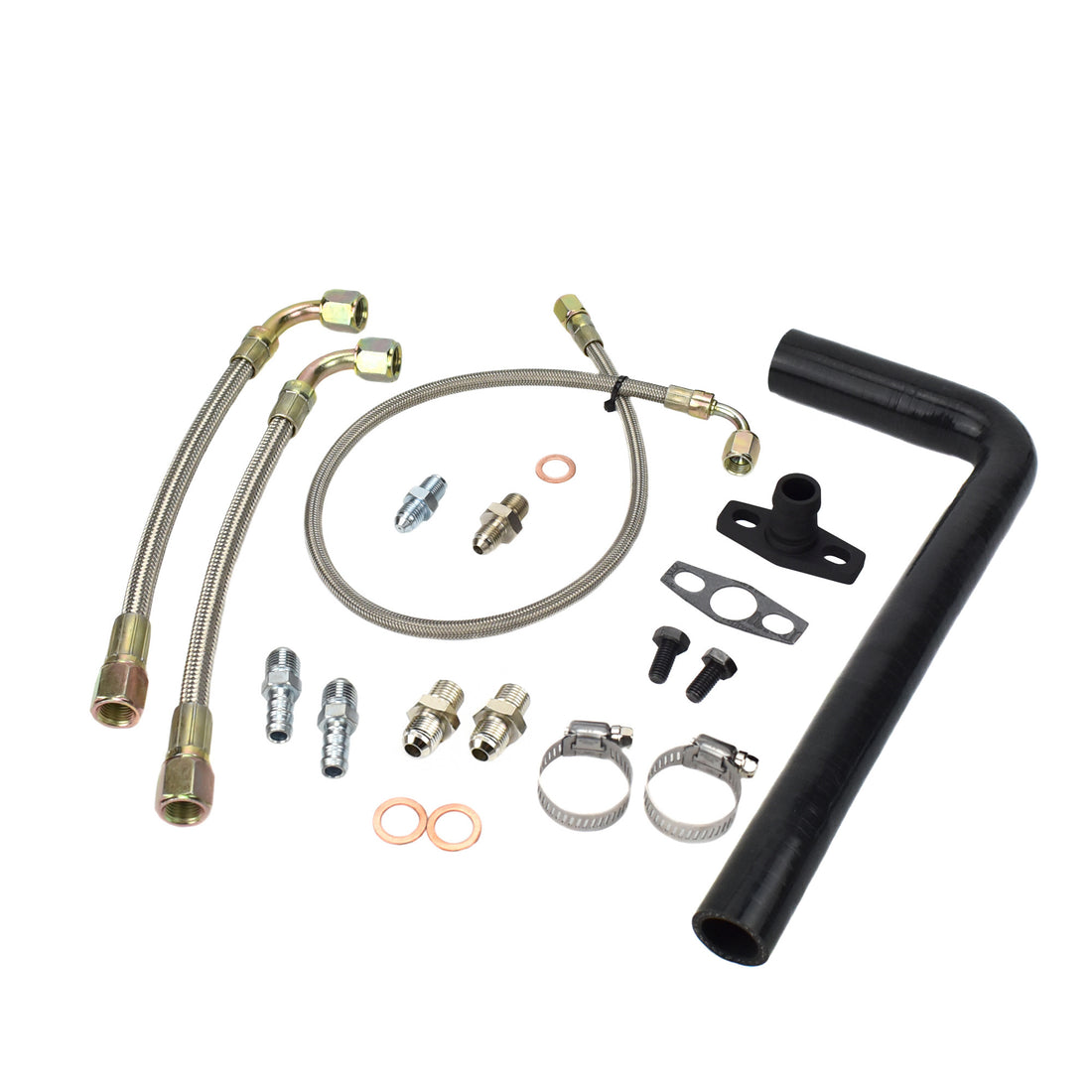

Turbo Oil Water Line Kit Toyota Land Cruiser 1HD with Garrett GT28R

Turbo oil and water line for 1HD with Garrett turbo conversion.

PRODUCT APPLICATION

Toyota 1HD-T 1HD-FT 1HD-FTE with Garrett GT28R ball bearing turbo.

• Oil & water line: Pre-crimped PTFE Teflon braided stainless steel

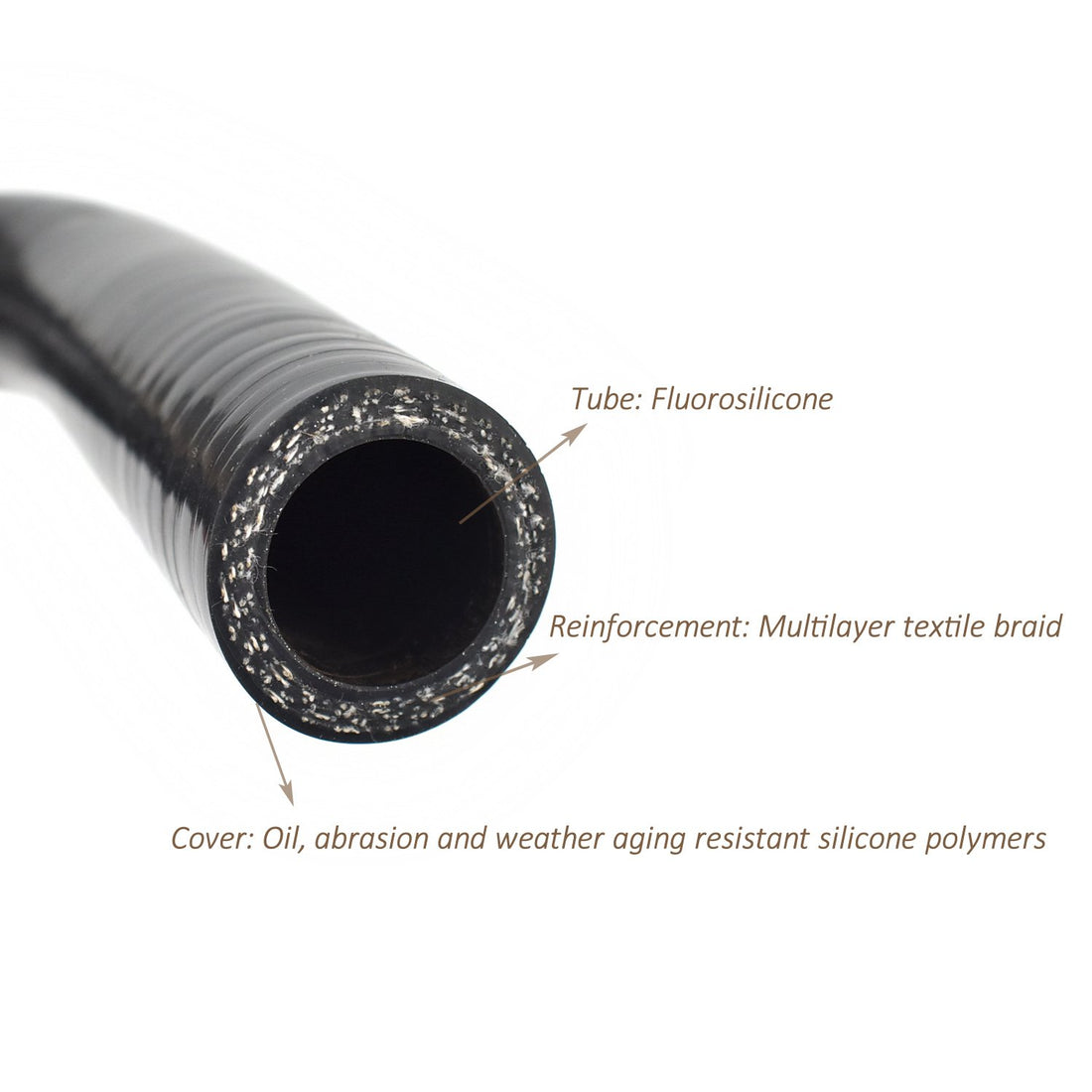

• Oil drain hose: Silicone polymers
• Flange: 6061-T6 aircraft aluminum
• Fitting: mild steel
• Gasket: Interface N-8092 Nonasbestos
• Bolts: High tensile class 8.8

• -4 AN 1/4" Oil feed line

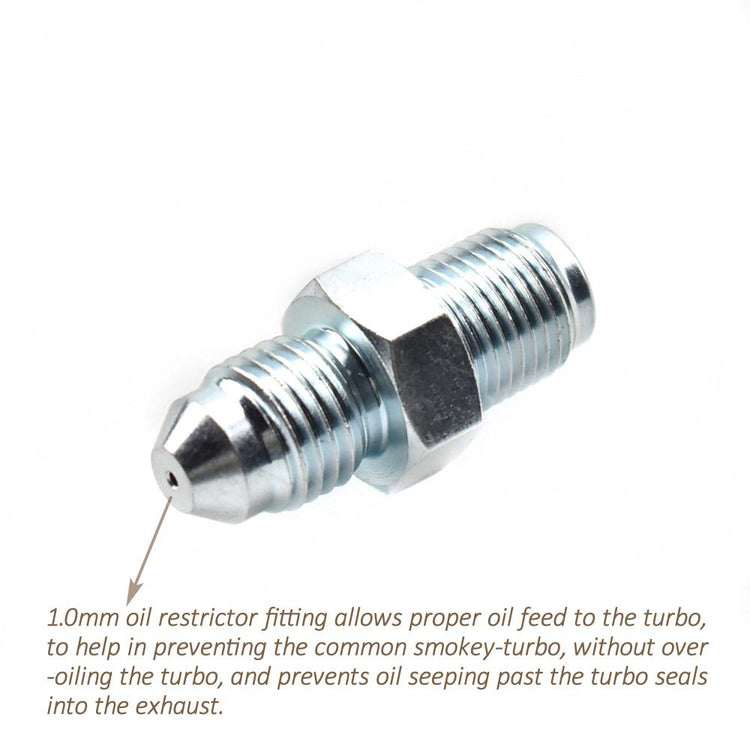

• -4 AN Oil feed fitting (1.0mm restricted port)
• -4 AN Oil fitting to engine oil supply
• Oil drain hose
• Oil drain flange
• Oil drain Gasket (1mm thickness)
• Clamps
• Bolts
• -6 AN 3/8" Water lines
• -6 AN Water fittings to turbo and engine side
• Copper crush washer (1mm thickness)
