Universal Turbo Oil Feed Return Line Kit Garrett G-Series G40 G42 G45

Universal turbo oil feed and return line kit.

PRODUCT APPLICATION

Garrett G-Series such as G40-900 G40-1150 G42-1200 G42-1450 G45-1125 G45-1350 G45-1500 turbo.

• Oil line: Pre-crimped PTFE Teflon braided stainless steel
• Oil drain hose: NBR (Nitrile Butadiene Rubber)
• Flange: 6061-T6 aircraft aluminum
• Fitting: mild steel
• Gasket: Interface N-8092 Nonasbestos
• Bolts: High tensile class 8.8

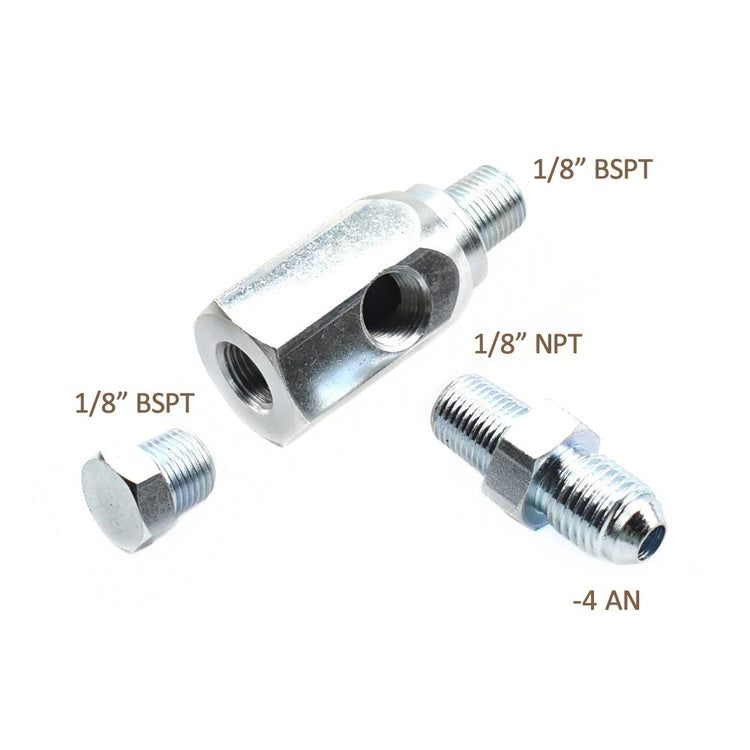

• T-fitting to suit engines with 1/8” BSPT oil pressure switch
• -4 AN 1/4" Oil feed line 104cm long
• -4 AN Oil feed flange (2.0mm restricted port)
• Oil feed flange gasket (1mm thickness)
• 3/4" NBR Oil drain hose 50cm long
• 3/4" Barb to 3/4" BSPT 45 degree elbow fitting
• 3/4" Oil drain flange
• Oil drain flange gasket (1mm thickness)
• Bolts
• Clamps
