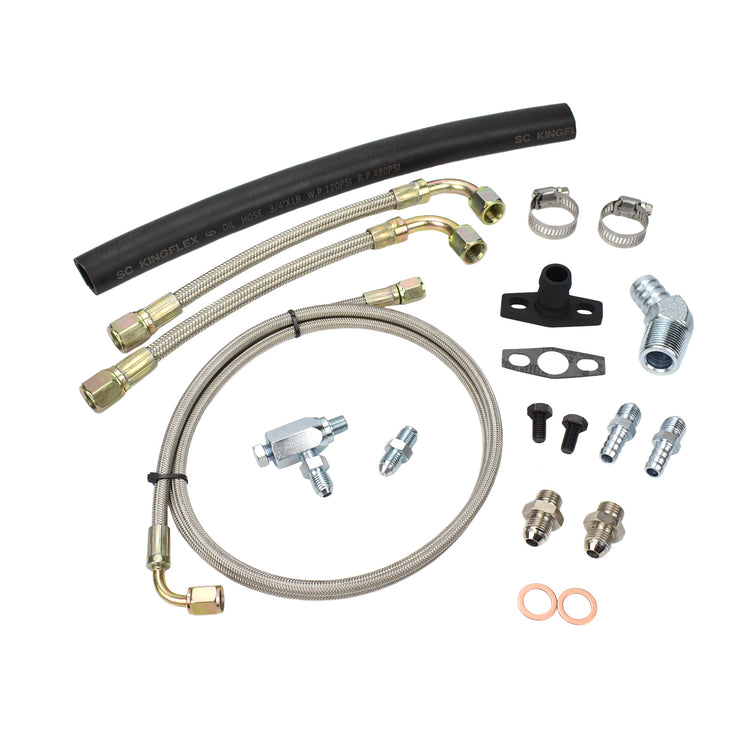

Universal turbo oil & water lines and fittings.
PRODUCT APPLICATION
Garrett G-Series such as G25-550 G25-660 G30-660 G30-770 G30-900 G35-900 G35-1050 ball bearing turbo

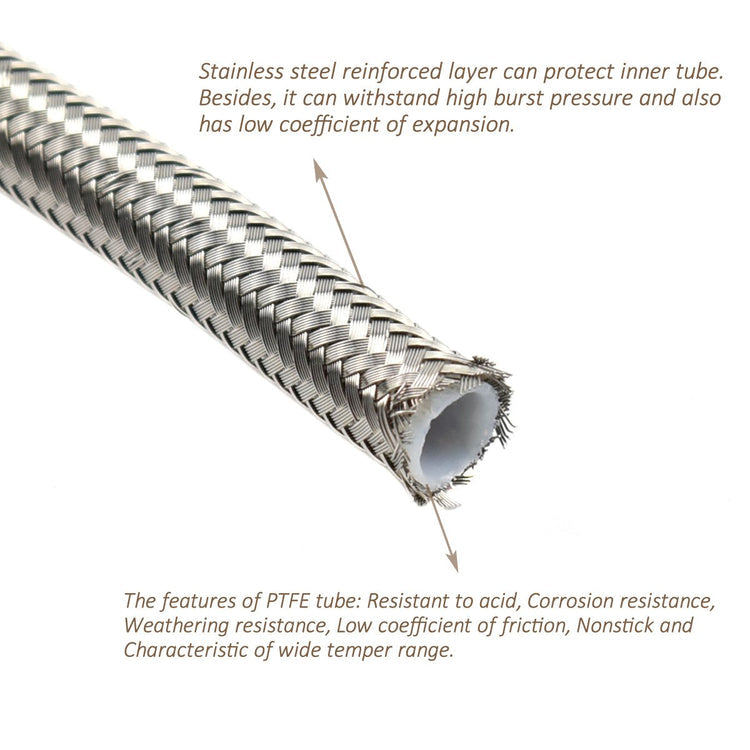

PRODUCT MATERIAL- Oil & water line: Pre-crimped PTFE Teflon braided stainless steel
- Oil drain hose: NBR (Nitrile Butadiene Rubber)
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8

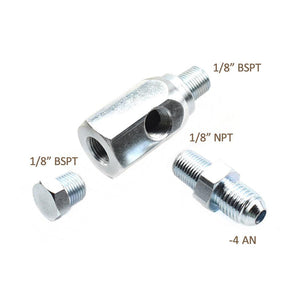

- T-fitting to suit engines with 1/8” BSPT oil pressure switch
- -4 AN 1/4" Oil feed line 104cm long

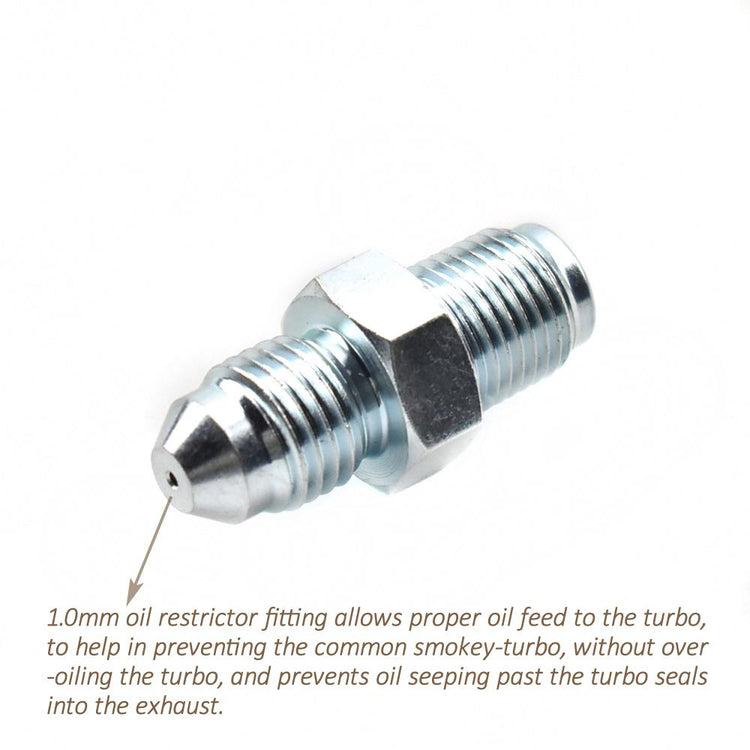

- -4 AN Oil feed fitting (1.0mm restricted port)
- 3/4" Oil drain hose 50cm long
- 3/4" Oil drain flange
- Oil drain flange gasket (1mm thickness)
- Bolts
- Clamps
- 3/4" Barb to 3/4" BSPT 45 degree elbow fitting
- -6 AN 3/8" Water lines 25cm long
- -6 AN Water adapter fitting
- -6 AN to 3/8" Barb fitting
- Copper crush washer (1mm thickness)
