HPD Turbo upgrade kits are an excellent way to gain safe and reliable power and torque for your vehicle.
We use a Garrett turbocharger GT and GTX combined with braided oil and water lines, HPD custom manufactured 3" air intakes and HPD’s custom rear direct fit housing.
EXHAUST:
When we designed and built this turbo kit we designed it as a direct fit kit using HPD's rear housing to suit Garretts core allowing us to run garret GT28 turbochargers for performance and reliability.
This HPD rear housing gives the ability to utilise the factory or aftermarket dump pipes, with the benefit to this it allows the owner to run most turbo GU aftermarket exhaust systems as a direct bolt on or even run the standard OEM the HPD direct fit rear housing also bolt straight onto the factory turbo manifold allowing for a perfect fitment.
INTERCOOLING:
Intercooling your turbo kit is important if you are looking to run more that 8-10psi of boost, however which intercooler to choose depends on a couple of things.
If you intend on towing a large load, live in a hot arid climate or decide to run a larger turbo option, then we suggest you should run our series 1 450 wide front mount intercooler, our series 2 top mount intercooler or extreme top mount intercooler as they are bigger and capable of a larger volume of air with a higher thermal efficiency operating at these more aggressive conditions.
Should you be looking to go from non-intercooled to intercooled and upgrading to a Garrett turbo and not looking to push your vehicle past 110-120kw mark and are running our standard turbo option, then a series 1 intercooler should be a good setup.
Below is a link to the 5 intercoolers offered in this kit so you can make an informed decision on which combination is right for you.
SERIES 1 TOP MOUNT INTERCOOLER - IK-GU42S-T
SERIES 1 FRONT MOUNT INTERCOOLER - IK-GU42W-F
SERIES 1 FRONT MOUNT INTERCOOLER(450mm CORE) - IK-GU42W4-F
EXTREME TOP MOUNT INTERCOOLER - IK-GU42X-T
SERIES 2 TOP MOUNT INTERCOOLER - IK-GU42P-T
TURBOS:
The turbocharger that is supplied as the base option for the GU TD42 direct fit turbo kit is the GTX2860r by Garrett.
We have found that this turbocharger compliments the characteristics of the 4.2ltr TD42 motor very well. Combining a fast spool rate with reliable power and substantial torque we feel like this option will satisfy those customers looking for the next level of power and better towing capability, highway speeds and general 4wd application.
Should you be looking for a little more power, torque and performance the next step up from Garretts GTX28/60r series is the new GTX28/67r Gen ii series. These turbos move some serious air speed and are capable of running from 20-30psi all day. Not only are they capable of higher boost application but they also spool up faster, hold boost longer and have a billet compressor wheel hidden inside. Another new feature is the added provision for a compressor wheel speed sensor and anti-surge slots meaning Better performance across the board. GTX2860 GEN ii - LINK - This turbo option with series 2 intercooler and 3" exhaust system you can expect between 120-140kw (with supporting mods) on standard tyres.
GTX2867 GEN ii - LINK - This turbo option with series 2 intercooler and 3" exhaust system you can expect between 150rwkw+ UP TO 200kw (with supporting mods) on standard tyres. Typical supporting mods are reco injectors, 11mm boost compensated pump and boost controllers.
NOTE: Results may vary from vehicle to vehicle. Information provided here is meant as a guide only as there are many factors that may affect overall power output. Kit Features:

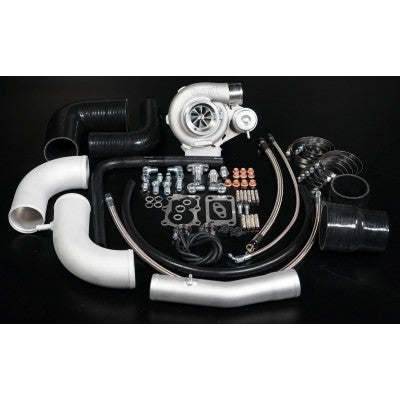

Garrett GT2860R Base Turbo charger (with upgrades available)
Braided oil & water lines
Aluminium mandrel bent intake piping
Optional Upgrades below (intercooler, turbo, exhaust)
HPD turbine housing
1 year warranty
