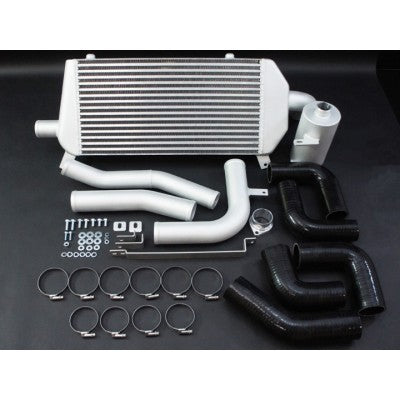

This intercooelr kit is to suit a 105 series chassis that was a factory 1HZ that has been converted to a 1HDFTE Motor. This comprehensive Series 2 HPD intercooler kit has been designed with shorter pipe work which runs directly from the intercooler to the turbocharger and inlet, due to the direct path we provide a replacement TIG welded aluminum radiator overflow bottle. This kit has the option of a transmission cooler for automatic modles. This kit will see and maintain safe power levels up to 200kw’s at the wheels with supporting modifications and tuning.
Kit features:
To suit 105 1HZ to 100 1HDFTE Conversion
Bar & Plate Core 500x275x76mm
Alloy mandrel bent piping
Lasercut mounting brackets
Quality silicone hoses
german made load rated clamps
Winch & bullbar compatible*
Hot side piping 51mmø
Cold side piping 57mmø
Transcooler is required for automatics
Transcooler core 400x110x50mm
