Kinugawa STS Advanced Ball Bearing Turbocharger 3" Anti Surge TD05H-18G 6cm T3 V-Band for Toyota Land Crusier 1HZ Ultimate Fast Spool

Regular price
$1,999.00
Sale price
$1,999.00
Regular price
Sold out
Unit price
per
Tax included.

Product Features
  • Brand: KINUGAWA
  • Accommodation on the vehicle: Equipment Engines
  • Features: Strengthen Engine air intake
  • Manufacturer: Kinugawa Turbo Systems
  • Turbine Housing: 6cm / AR.41
  • Cast / Billet wheel
Product description

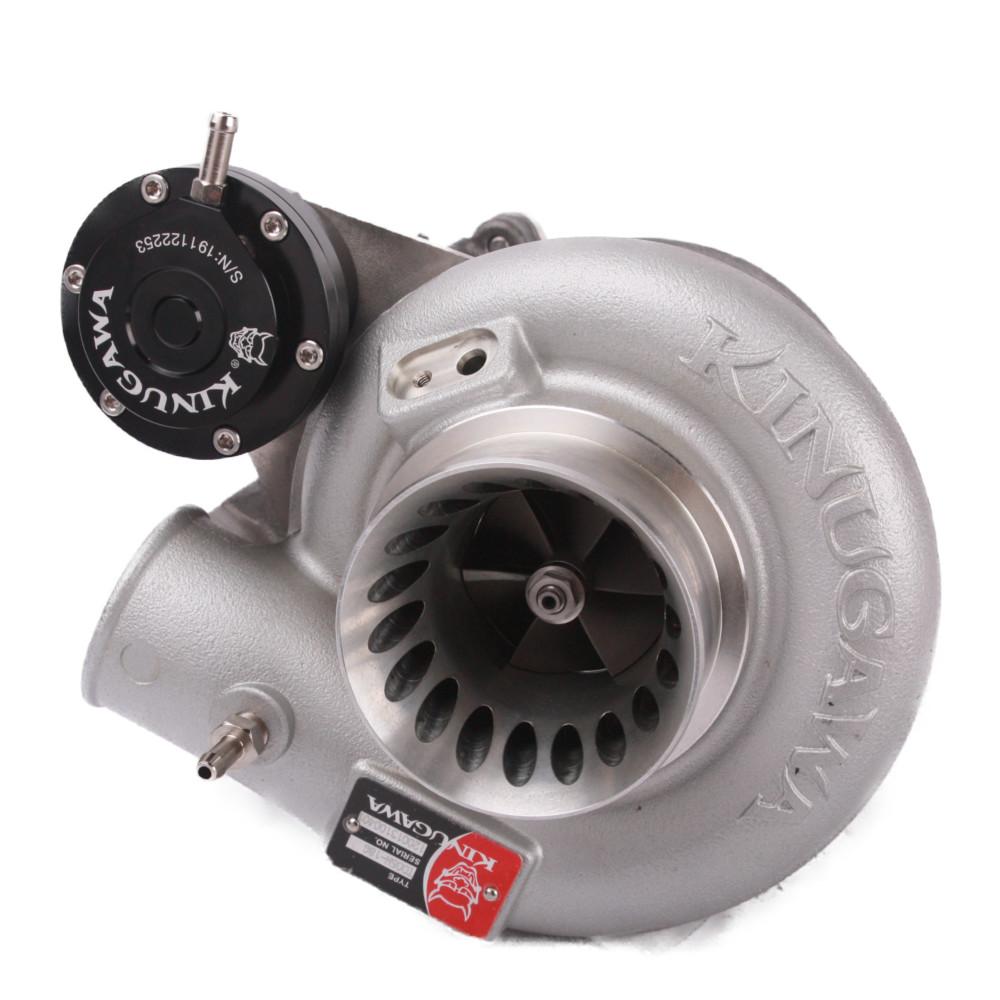

Kinugawa STS Advanced Ball Bearing Tech for Toyota 1HZ diesel td05h-18g spec turbocharger with 3" anti-surge Cover and 6 cm V-Band turbine housing provides ultimate spool time than ever.
Application

- Kinugawa TOYOTA 1HZ 4.2L Diesel

  75/78/79/80/100 series TD05H-18G with 6cm T3

  V-Band Turbine housing, You need an exhaust manifold with T3 flange if you want to install this turbocharger on 1HZ Engine.

CHARR Size
-TD05H-18G
Wheels Spec

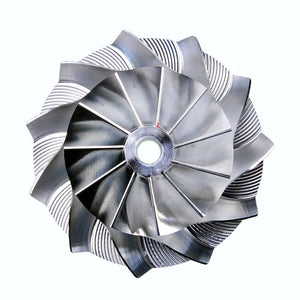

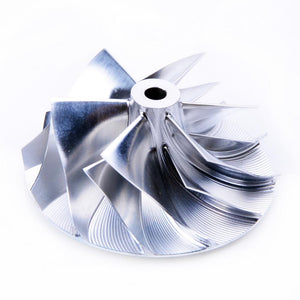

-Compactor wheel: 50.3 / 68.0 mm

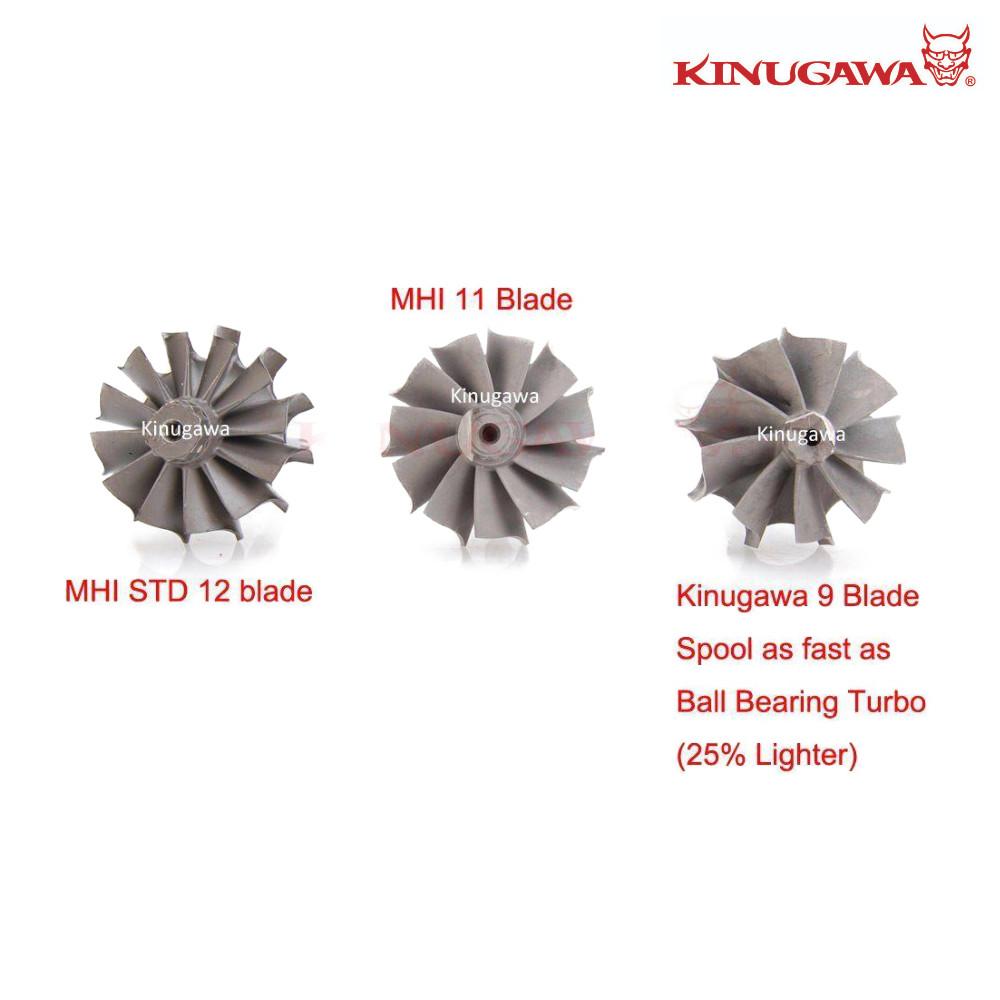

- Turbine wheel: 56 / 49.2 mm
Compressor Housing
- Compressor inlet: 3 " Anti-surge AR 60 with Speed Sensor Port

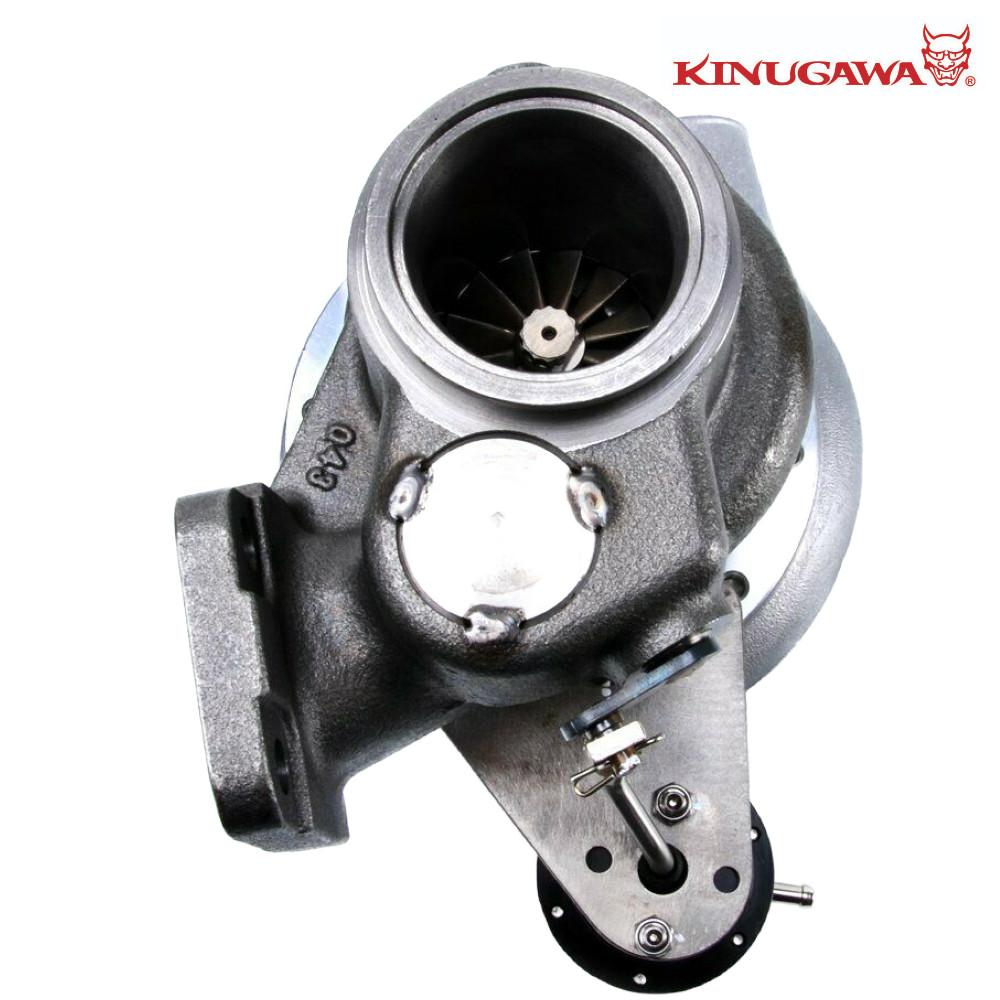

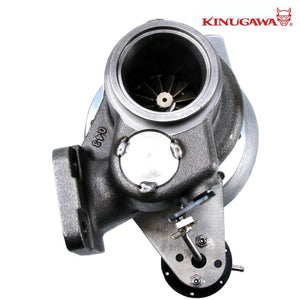

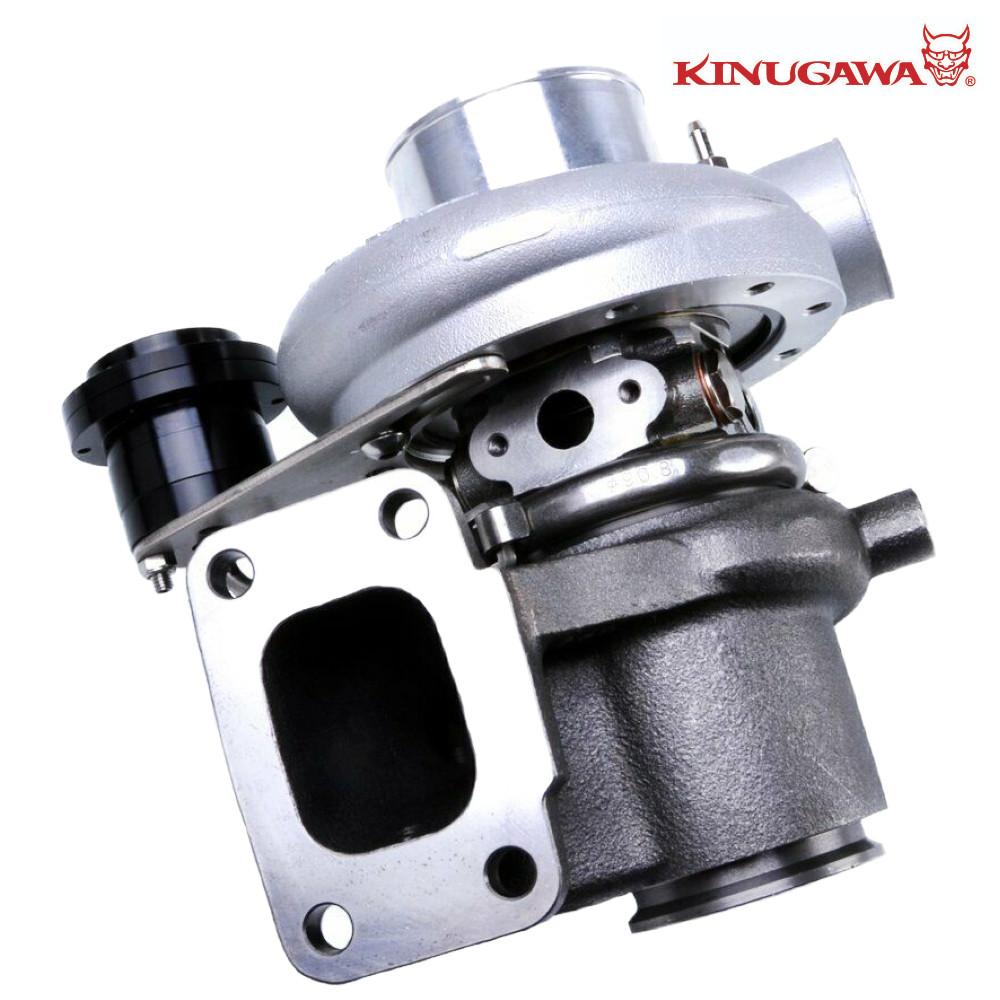

Turbines Housing
- Size of nozzle: 6 cm / ar.41
- Turbine input: T3
- Turbine outlet: 2.5" v-Band internal wastegate
Bearing Type
-Dual Ceramic Ball Bearing system
Cooling Type
-oil and water cooling
Drive Pressure
-  Default 1.0bar The drive will go with the turbo.
-We have 0.5bar, 0.8bar, 1.2bar, 1.5bar, 1.7bar, and 2.0bar drives, Please add a comment to your order if you need to change it.
Boost / HP
-Max l. sec .: 300 ~ 450 liters. from.
-The peak pressure setup is limited: 2.8bar
-Preposed pressure setup: 1.5bar

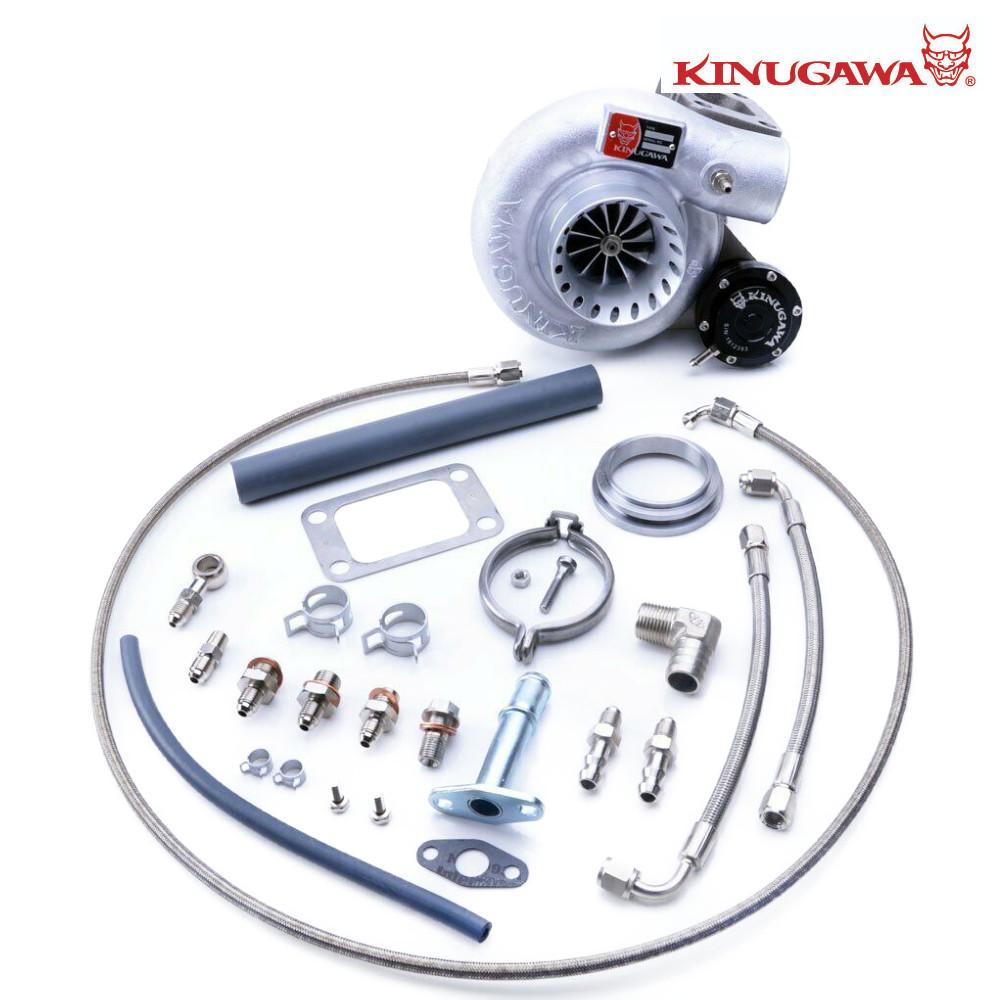

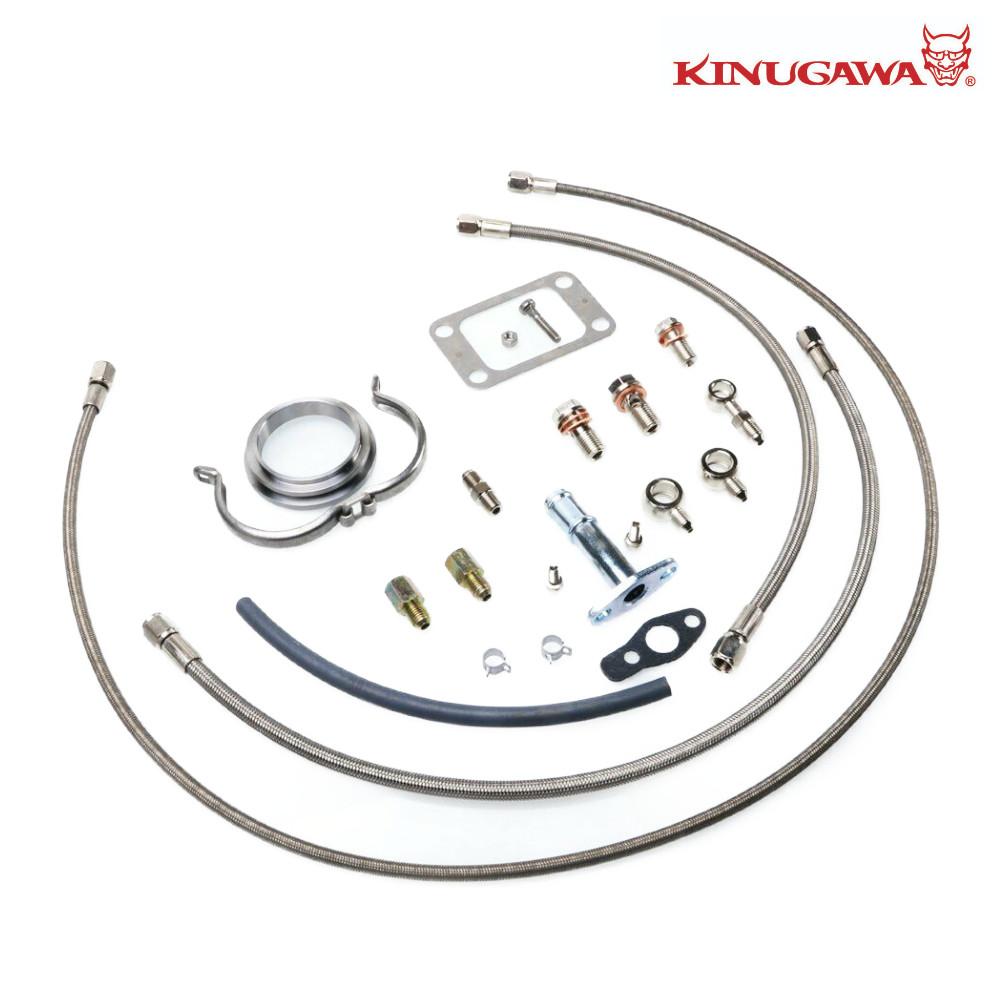

The set includes
-1 x Oil supply set
-1 x water coolant and return set
-1 x T3 gasket
-1 x V-Clamp and V-Band Socket Adapter Kit
Situation code
-Brand New
-Full balance from Schenk MBRS 950110 Germany
Provider
-Kinugawa Turbo Systems
Guarantee
-One year
