Description

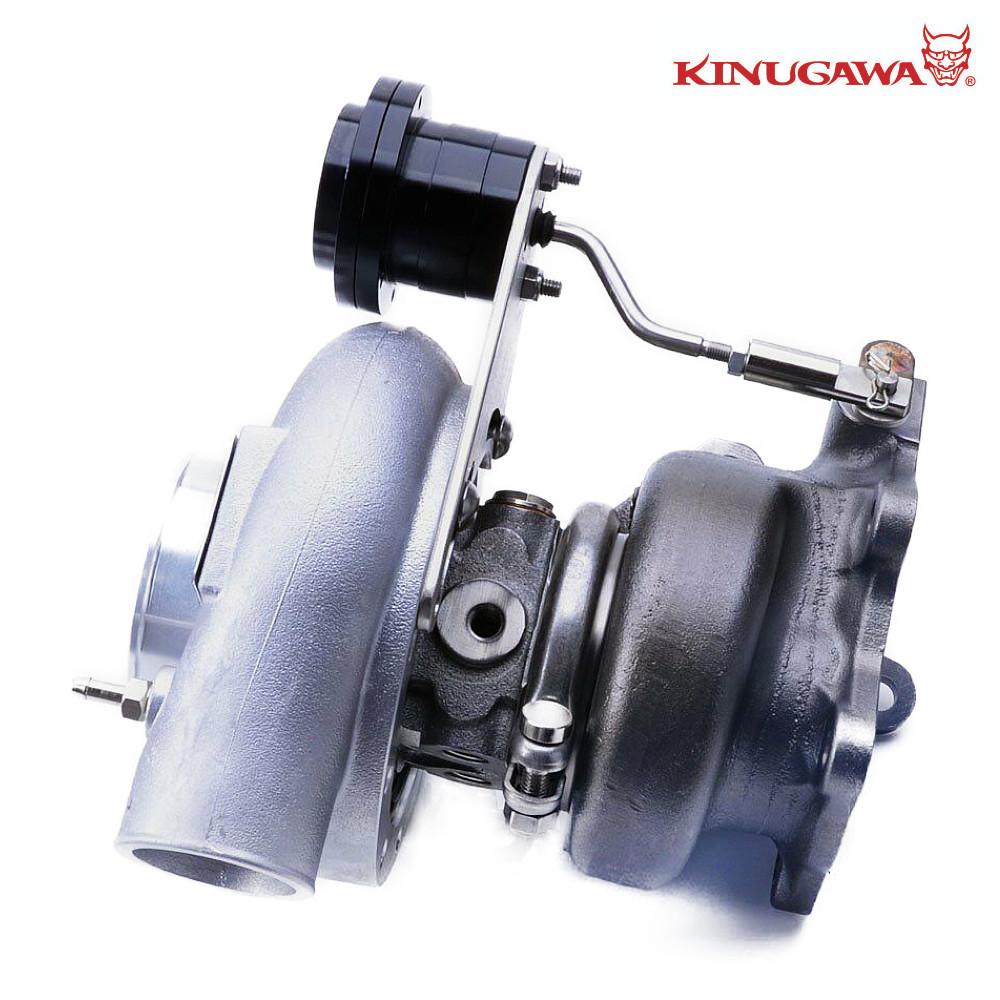

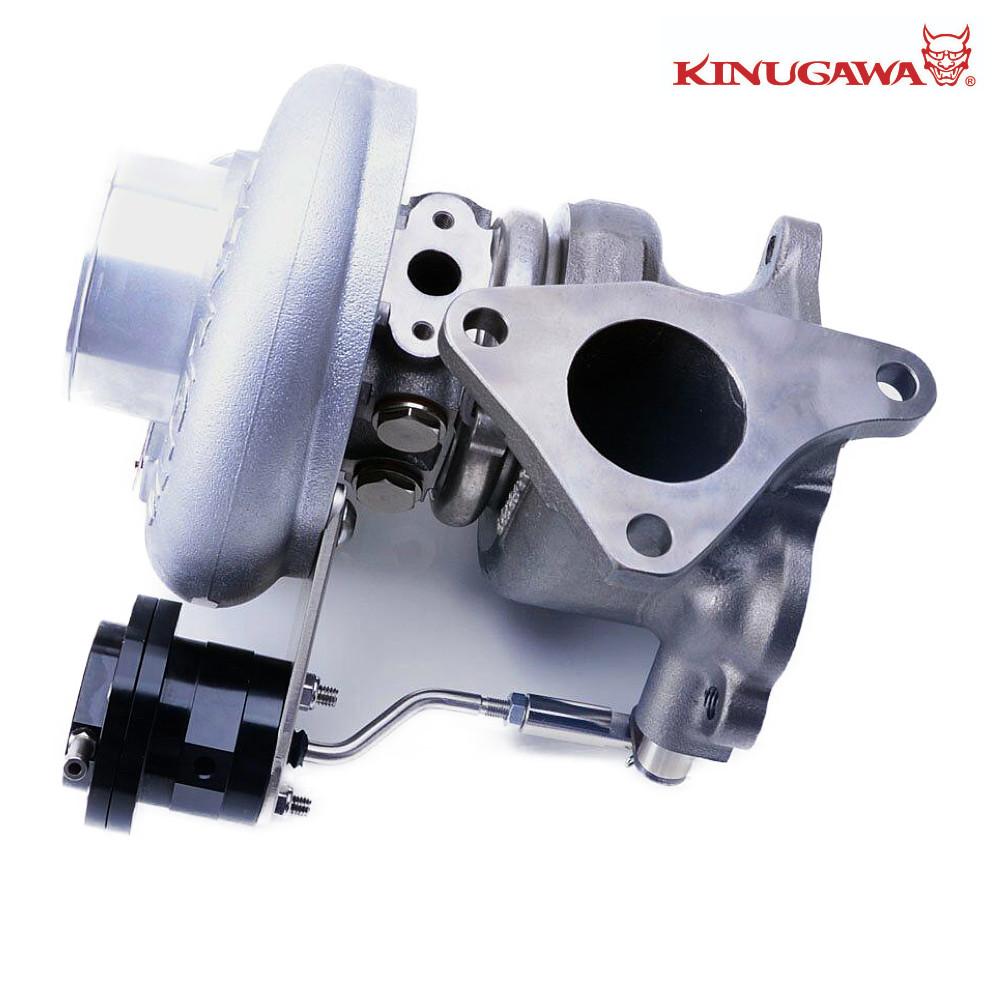

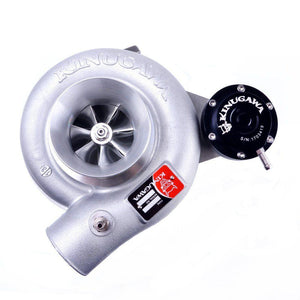

The factory turbocharger is feeling a little tired? Or if you are ready to make a little more power without going way over the top, then you will be pleased with the Kinugawa TD05H-16KXG Turbocharger. This is a great upgrade for those of you looking to make more power while maintaining great low to the mid-range response. This particular turbocharger is capable of producing up to 380 WHP on a healthy engine with excellent throttle response. This is a great option for street and track duties
Application
- 2002-2014 Subaru WRX
- 2004-2016 Subaru WRX STI vehicles
- 2004-2007 Subaru Forester
- It can replace TD04L WRX turbo, for IHI VF30, vf35 ... turbo directly without modification

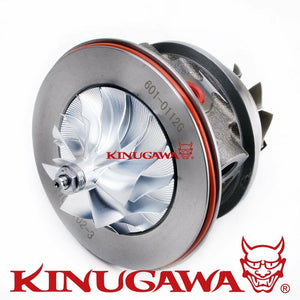

CHRA Size
- TD05-16KX Dual Ceramic Ball Bearing
Wheels Spec

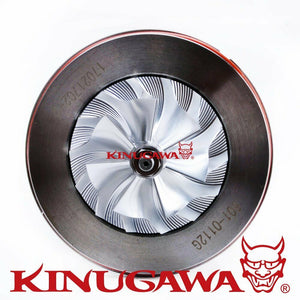

This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16KX billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.
- Compressor wheel: 49.96 / 68 mm 7+7 Point Milling

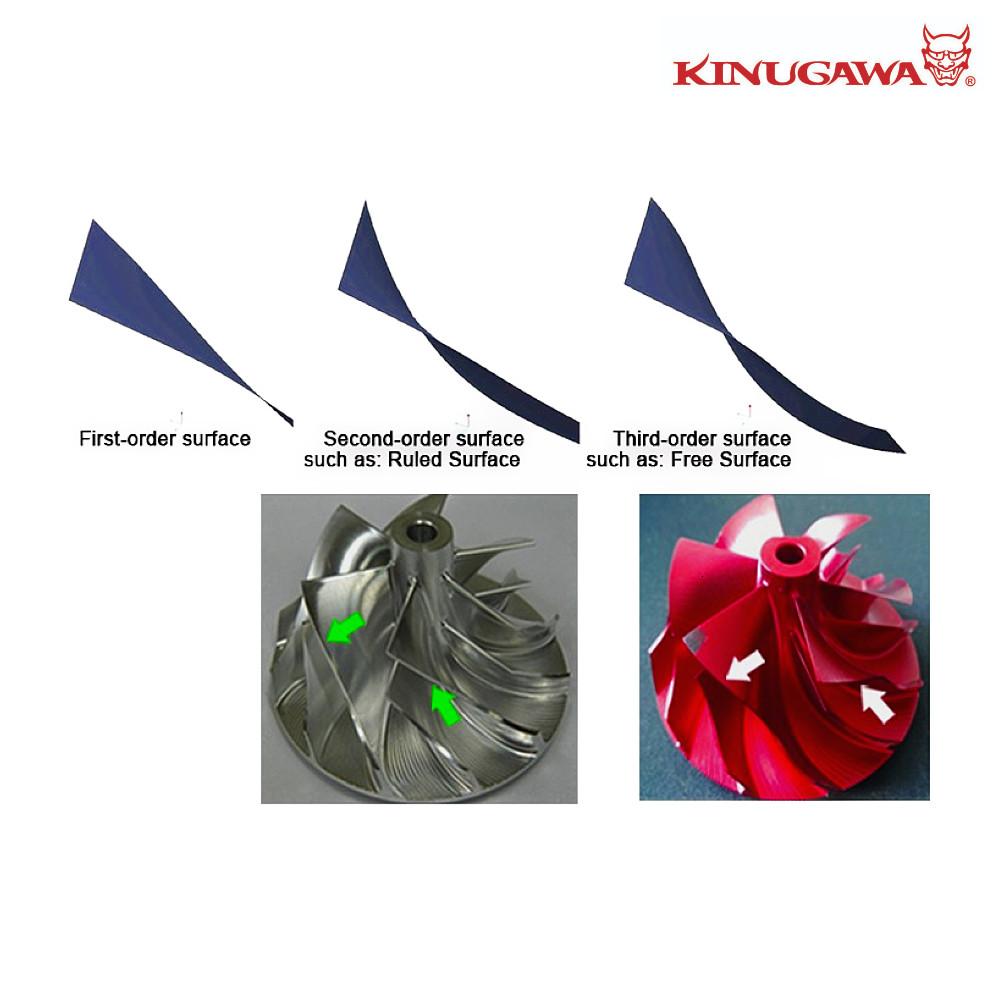

| Ruled Surface | Free Surface | |
| Process | Flank Milling | Point Milling |
| Machining Time | Quick 15 mins.each | Slow 120 mins.each |
| Characters | 1. Ruled Surface can be produced by Flank Milling 2. Low efficiency 3. Only suitable to the very easy design of compressor wheel 4. Mainly for fundamental mechanical engineering such as Centrifugal compressor |
1. Free Surface can be only produced by Point Milling 2. More air pressure and increase much better flow efficiency. 3. Mainly for high efficiency turbochargers. |

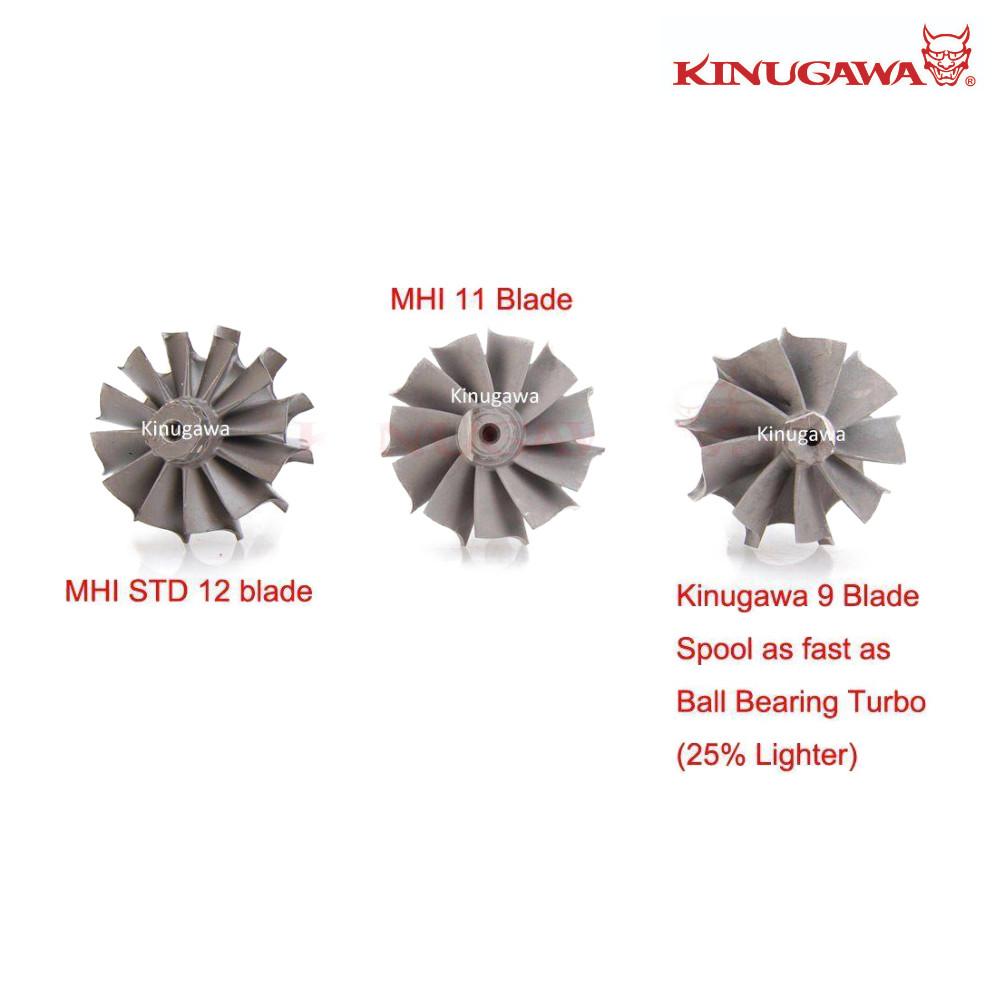

- Turbine wheel: 49 / 56 mm 9 Blades STS
Compressor Housing AR60
- Compressor inlet : 3" hose coupler
- Compressor outlet: 2.0" hose coupler

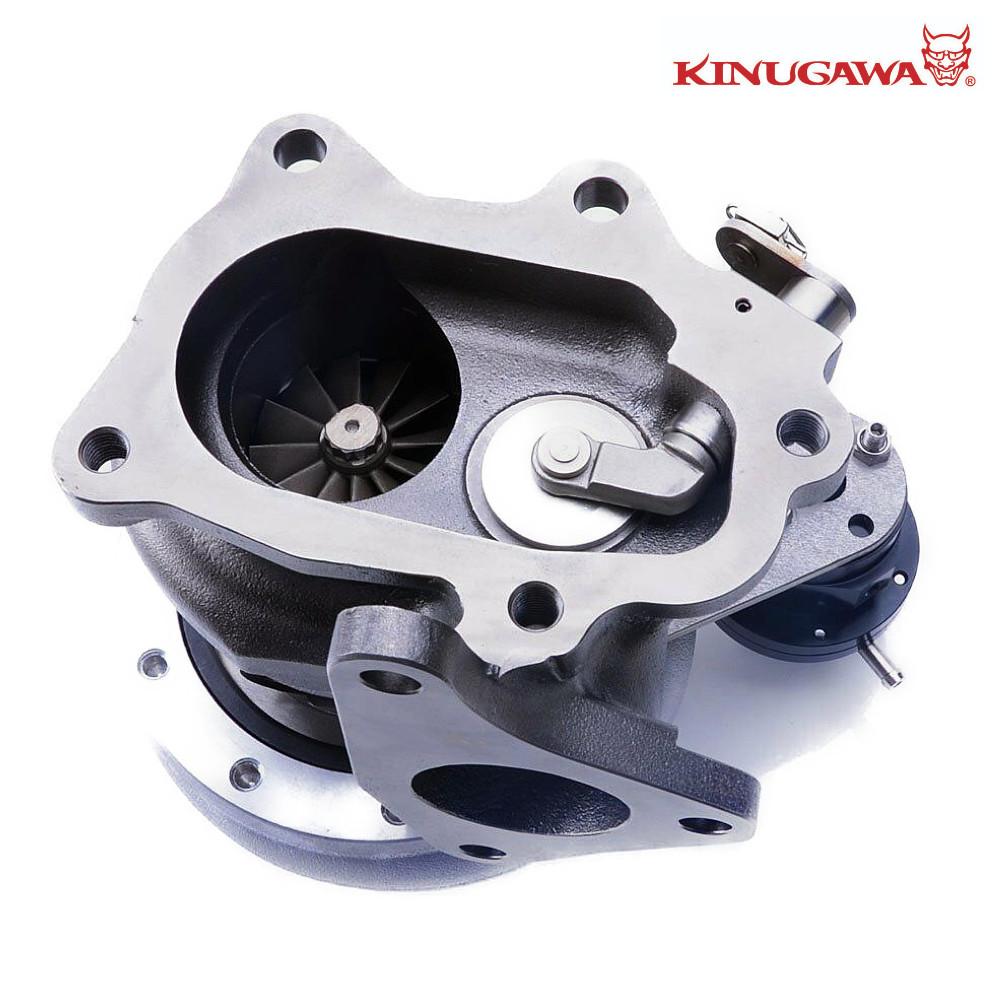

Turbine Housing Hi-Ni Thermal Resistant
- AR.49 / 7cm, AR.57 / 8cm, AR.73 10cm
Bearing Type
- Dual Ceramic Ball Bearing
Cooling Type
- Water and Oil Cooling System
Drive Pressure
- 1.0 bar is a default setup
- Available to 0.3bar, 0.5bar, 0.8bar, 1.2bar, 1.5bar, 1.7bar, and 2.0bar, Please add a comment to your order if you must change it.
Boost / HP
- Horsepower: 330~380whp
- The Max boost level is limited: 2.8bar

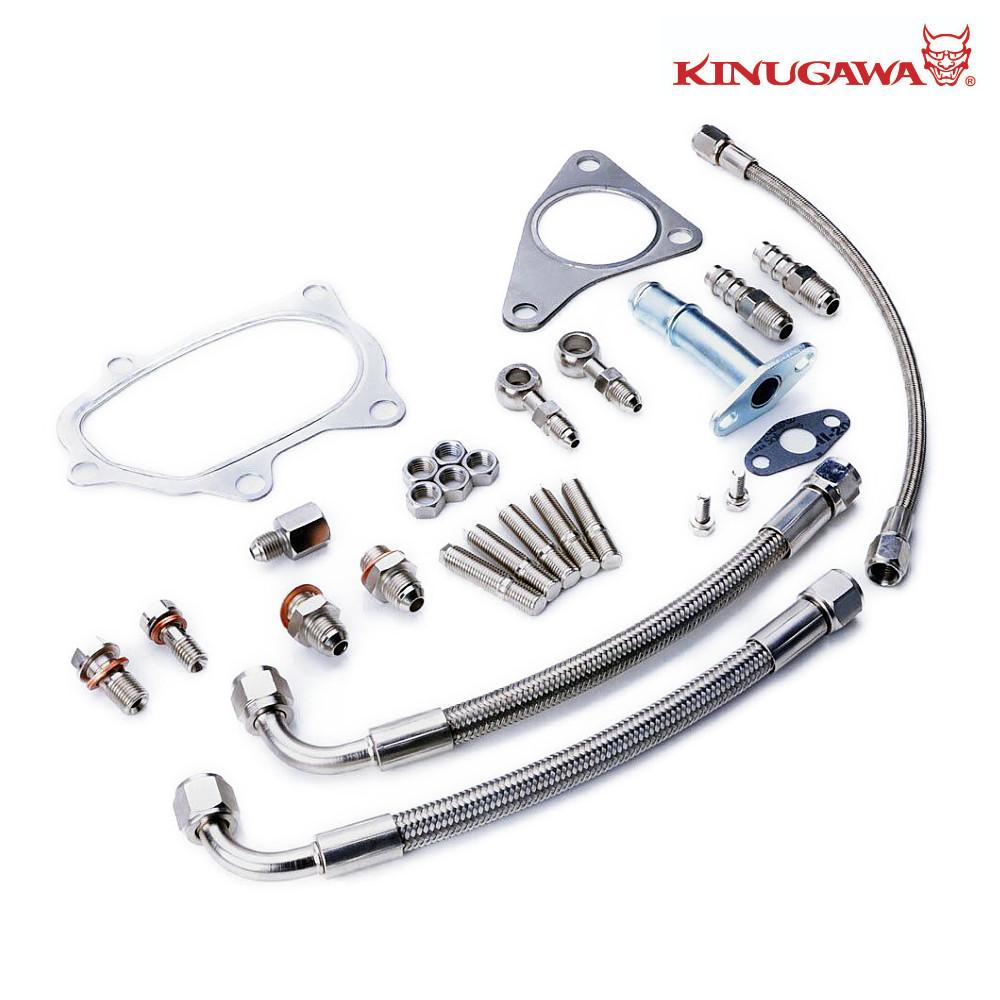

The set includes
- 1 x oil feed line kit
- 1 x water coolant feed and return line kit
- 1 x oil return pipe kit
- 1 x turbine inlet and outlet gasket set
- 5 x stud and nut set
Situation code
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
Guarantee
-One year
