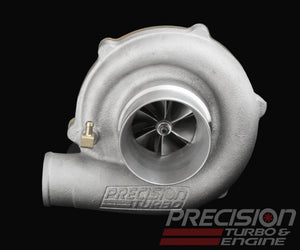

Precision Turbo and Engine is proud to introduce our line of direct-fit upgrade replacement turbochargers with the unique CEA� (Competition Engineered Aerodynamics) 2618-forged aluminum compressor wheel. These turbochargers are specifically designed to out-perform turbos of the same size from other suppliers while delivering greater efficiency and less turbo lag.
PTE's Direct Replacement Performance Upgrade Turbochargers feature the following:
� Exclusive CEA� (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
� Liquid-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
� Higher efficiency and faster transient response for maximum power and performance
� 55mm inducer compressor wheel
� Compressor cover options:
��- "B" compressor cover 2.8" inlet/2.0" outlet
��- "E" compressor cover 3.0" inlet/2.0" outlet
��- "S" compressor cover 4.0" inlet/2.5" outlet
��- "Ported S" compressor cover 4.0" inlet/2.5" outlet
� 56.5mm, 84 trim turbine wheel
� Turbine housing options:
��- T25 .64, .86 A/R wastegated
��- T3 .82, or 1.06 A/R with 4 bolt (3.0") discharge
��- T3 .48 A/R with 5 bolt discharge (with wastegate hole)
��- Mitsubishi .48 A/R
� Wastegate actuator optional, but not included
