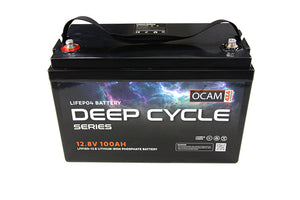

100Ah 12.8V LiFePo4 Lithium Deep Cycle Battery
3 Year Warranty
Making sure that you choose the right battery is essential to getting the best out of your camping and outdoor experience.
OCAM Lithium Deep Cycle Batteries offer superior performance and are designed to handle the most extreme Australian conditions. Here are some of the factors to consider when you're choosing an auxiliary battery:
- What appliances and/or accessories do I intend to run?
- What size battery do I need.., i.e., how many Ah?
- Will I install an inverter to operate 240V appliances or is it only to run a fridge and some lighting?
Whichever way you decide to go, our team can help you design a system that's right for you and deliver reliable performance all the time.
OCAM lithium-ion batteries are built using A-grade cells. They are a reliable energy source protected by a high-end BMS. Not only do they deliver a higher energy density and voltage capacity than a lead-acid battery, the OCAM lithium LiFePO4 batteries store 2-3 times the energy of an AGM battery of the same or similar size.
PICK UP & PHONE ENQUIRIES WELCOME
Despatched within 24hrs of payment being received
| CELL: | ||
| Type | LiFePO4 Battery | |
| Cell model | LFP48174133 - 3.2V 100AH | |
| Nominal capacity | 100Ah |
Discharge: 0.2C |
| Minimum capacity | 93Ah | Discharge: 0.2C Cut-off Voltage: 2.5V |
| Nominal voltage | 3.2V | |
| Internal impedance | ≤5mΩ | |
| Dimensions | 48.5 x 176 x 135mm | |
| Cell weight | Approx. 2.15kg | |
| BATTERY PACK: | ||
| Pack method | 4S1P | |
| Nominal capacity | 100Ah | Discharge: 0.2C Cut-off Voltage: 10V |
| Minimum capacity | 93Ah | Discharge: 0.2C Cut-off Voltage: 10V |
| Nominal voltage | 12.8V | |
| Energy | 1280Wh | |
| Charge voltage | 14.6V | |
| Discharge cut-off voltage | 10V | |
| Charge method | CC/CV | |
| Standard charge current | 19A | |
| Max. charge current | 100A | |
| Standard discharge current | 19A | |
| Max. continuous discharge current | 100A | |
| Lifecycle | 2000 times | |
| Internal impedance | ≤60mΩ | |
| Dimensions | 331(L) x 171(W) x 220(H) mm | |
| Weight | Approx. 10.5kg | |
| Working temperature range | Charge: 0°C--45°C Discharge -20°C--60°C |
|
| Storage temperature | -10°C--45°C | |
| PCM Parameters: | ||
| Charge current | ≤100A | |
| Discharge current | ≤100A | |
| Over-charge | Over-charge detect voltage | 3.90±0.05 V |
| Over-charge delay time | 0.5-2S | |
| Over-charge reset voltage | 3.60±0.10 V | |
| Over-discharge | Over-discharge detect voltage | 2.00±0.10 V |
| Over-discharge delay time | 10-400mS | |
| Over-discharge reset voltage | 2.70±0.10V | |
| Over-current | Over-current detect Current | 300±50 A |
| Over-current delay Time | 5-60ms | |
| Reset | Release load | |
| Short circuit | Detect status | External short circuit |
| Reset | Release load | |
| Resistance | ≤20mΩ | |
