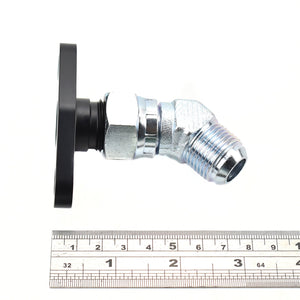

This kit easy to connect to steel braided type lines with -10 AN hose ends. With -10AN swivel fitting so you can aim the 10AN in whatever direction you need. Very convenient.
PRODUCT APPLICATION
Holset HX30 HX35 HX40 HX45 HX50 HX55
PRODUCT MATERIAL
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8

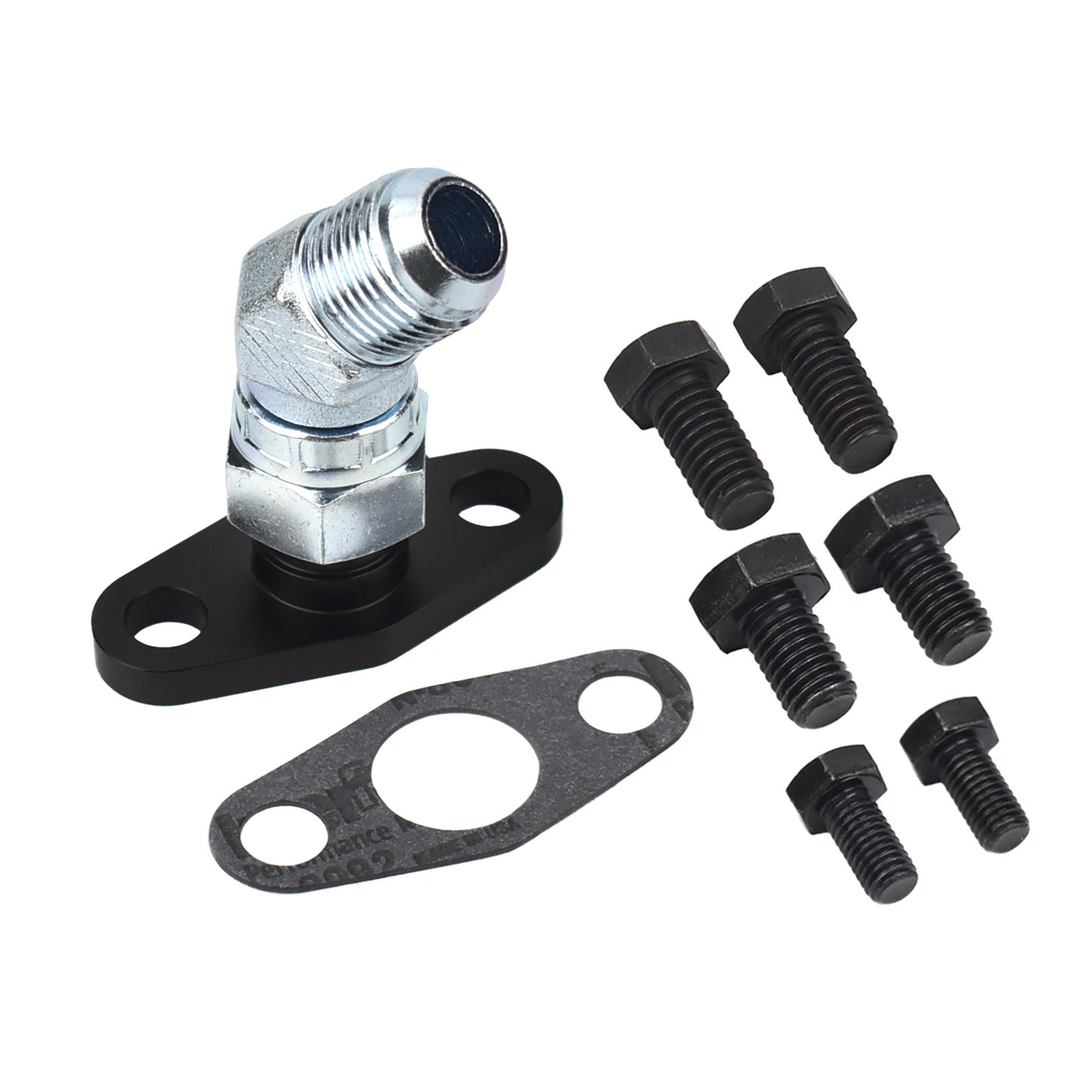

KIT INCLUDES
- -10 AN Flange
- -10 AN Female to -10 AN Male swivel fitting 45 degree
- Gasket (1mm thickness)
- Bolts
