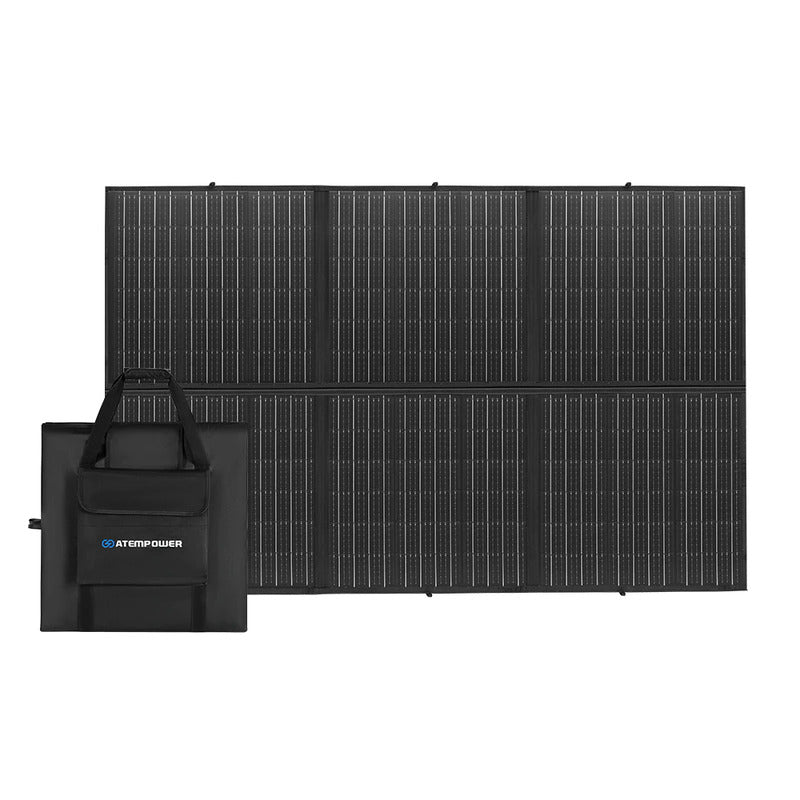

12V 300W Folding Solar Panel Blanket Mat Complete Kit With Dual USB
Whilst on your travels or camping trips, a solar blanket is a flexible decision. Made from poly/cotton canvas, this 300W solar blanket can be packed down to 1/6 of its full size and weighs only 10kg, which makes it ideal for camping, caraving, and most outdoor activities.
And all cables are terminated with Anderson plugs for easy and secure connection. A-grade monocrystalline solar cells feature energy conversion efficiency of 23.5% for an efficient power output when your electronic device drains.
This solar blanket features auto-optimization function for immediate reconnection when sunlight returns after charging interruption, and comes with a lithium compatible MPPT controller which can adjust the voltage to get a boost of current during times of peak demand and helps you get 20% more energy than a PWM controller. With ATEM POWER, you are full equipped to rediscover the fun of off-road.
Features

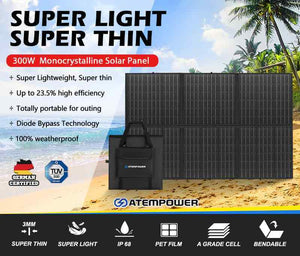

- Monocrystalline Solar Cell: A-Grade monocrystalline solar cells feature the fastest charging speed possible with an energy conversion efficiency of up to 23.5%.

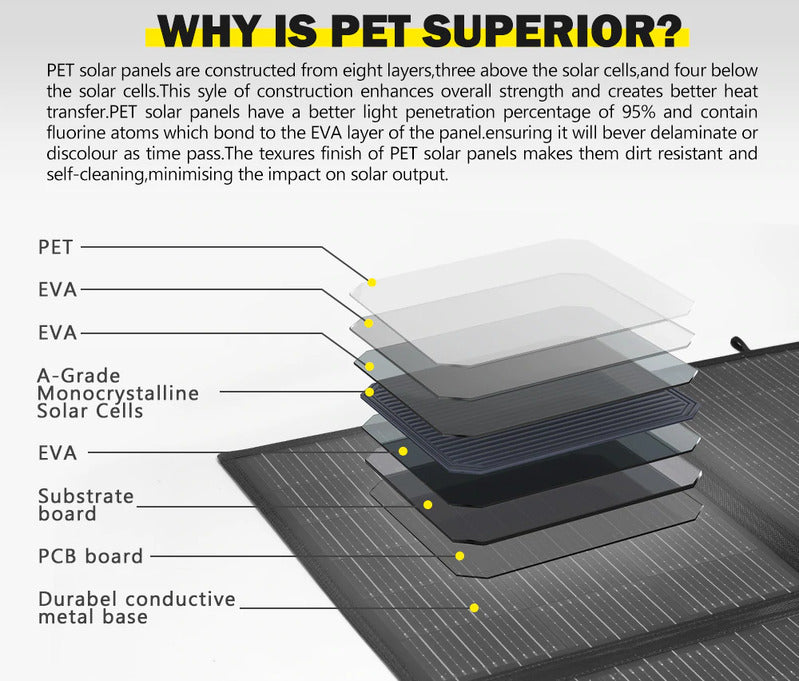

- Premium PET Films: These films feature light penetration rate of 95%, which can greatly increase energy conversion efficiency of this ATEM POWER solar panel.
- Superior Portability: Made from poly/cotton canvas, this super thin foldable solar panel is only 10kg and can be packed down to 1/6 of its full size.
- User-Friendly Design: This ATEM POWER portable solar panel is designed with 6 stitched loops which are quite handy if you make up hooks when it gets windy.
- Plug & Play Connection: All cables are terminated with Anderson plugs for easy and secure connection.
- Hassle Free Reconnecting: Auto-optimization function achieves immediate reconnection when sunlight returns after charging interruption.
- Upgraded Controller: This solar blanket comes with a lithium compatible MPPT controller which helps get 20% more energy than a PWM controller.
- Ultimate Protection: The overcharging cut-off technology ensures ultra reliable performance of this solar blanket.

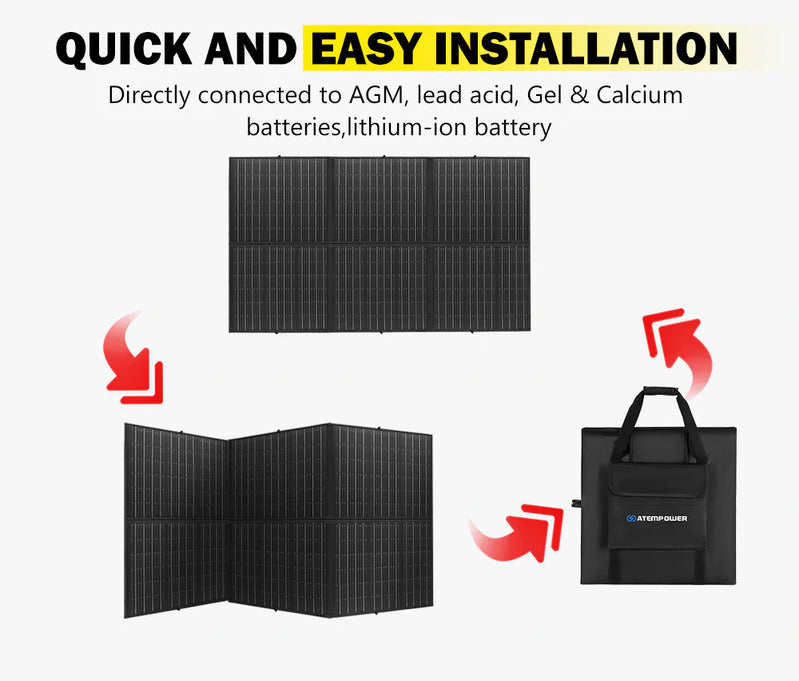

- Lithium Compatibility: Ideal for camping, caravanning, RVing, this solar blanket can be connected to AGM, lead acid, Gel, Calcium & LiFePO4 batteries.
- Multiple Functionality: The controller features USB port to charge portable devices directly, including smartphones, tablets, digital cameras, etc.
Features
- A Grade Cell: This battery is composed of A grade cells, and the terminals of the cells are bolted that deliver higher amperage loads and better current conductivity.
- Longer Lifespan: This LiFePO4 battery can deliver up to 2,000 rounds — several times the life of a lead-acid counterparts.
- Higher Usable Capacity: AGM are recommended to be discharged to 50% of the capacity while ATEM POWER LiFePO4 batteries can be discharged to 80-90%.
- High Quality BMS: It allows 200A continuous discharge and provide voltage/ temperature monitoring and smart balancing to add rigid strength to each cell.
- High Power Output: It has been designed to allow sufficient discharge amp rating to power high power appliances such as a microwave or coffee machine.
- Run in Parallel or Series: Designed to allow for up to 2 batteries in series or 2 batteries in parallel to achieve desired voltage and amp-hour capacity of the bank.
- Faster Charging: Lower internal resistance allows this lithium battery to accept charge at a greater rate, allowing it to be charged and ready to use much faster.
- Low Self-Discharge: This lithium LiFePO4 battery has a low self discharge rate, meaning it can be left standing for months and not run out of juice.
- Impeccably Lightweight: It provides 200AH that doubles the power of a lead acid battery with 1/3rd of that weight when towing or mobility is in the consideration.
- Safe & Smooth: This LiFePO4 battery is thermal stable and eliminates the risk of explosion and can operate efficiently at a temperature range of -20℃~70℃.
PICK UP & PHONE ENQUIRIES WELCOME
Despatched within 24hrs of payment being received
Maximum Power(Pmax) | 300W |
Max Power Voltage | 18.3V |
Max Power Current | 16.39A |
Open-Circuit Voltage | 21.05V |
Short-Circuit Current | 19.67A |
Cell Efficiency | Up to 23.5% |
Maximum System Voltage | 1000VDC |
Temperature Range | -40°C to +85°C |
Power Tolerance | ± 2% |
Standard Test Conditions | 1000W/m2, AM1.5, 25°C |
Solar Cell | Mono |
Product Dimension(Folded) | 550*550*40 mm |
Product Dimension(Open) | 1665*1090*5 mm |
Total Weight | 10.36kg |
SKU | VASPBAG-3S |
Brand | ATEM POWER |
Shipping Weight | 10.360000kg |
Shipping Width | 0.550m |
Shipping Height | 0.040m |
Shipping Length | 0.550m |
Shipping Cubic | 0.012100000m3 |
