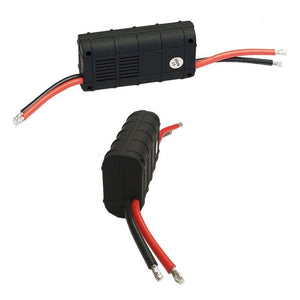

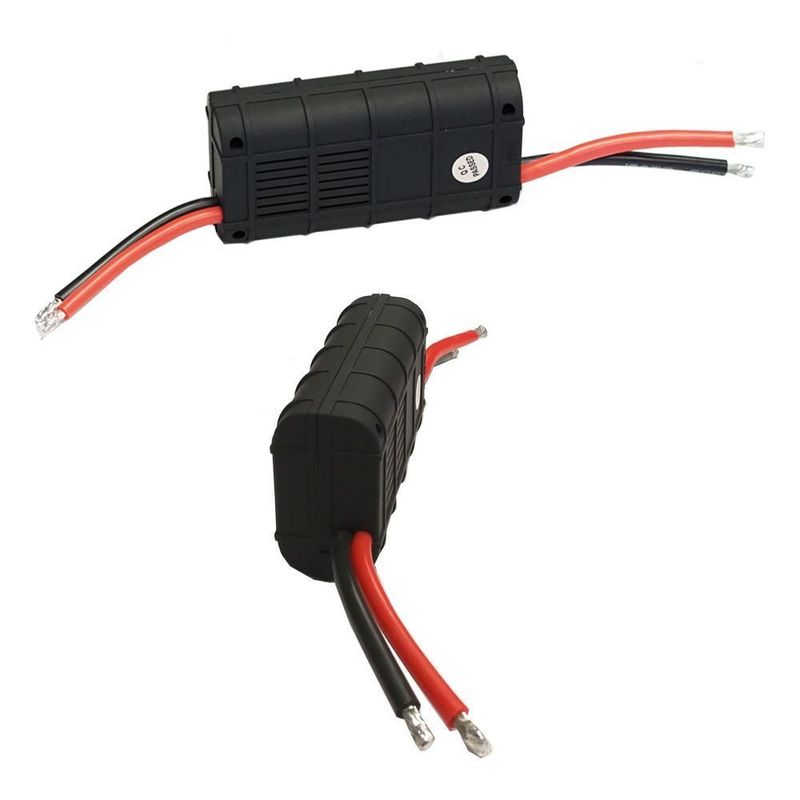

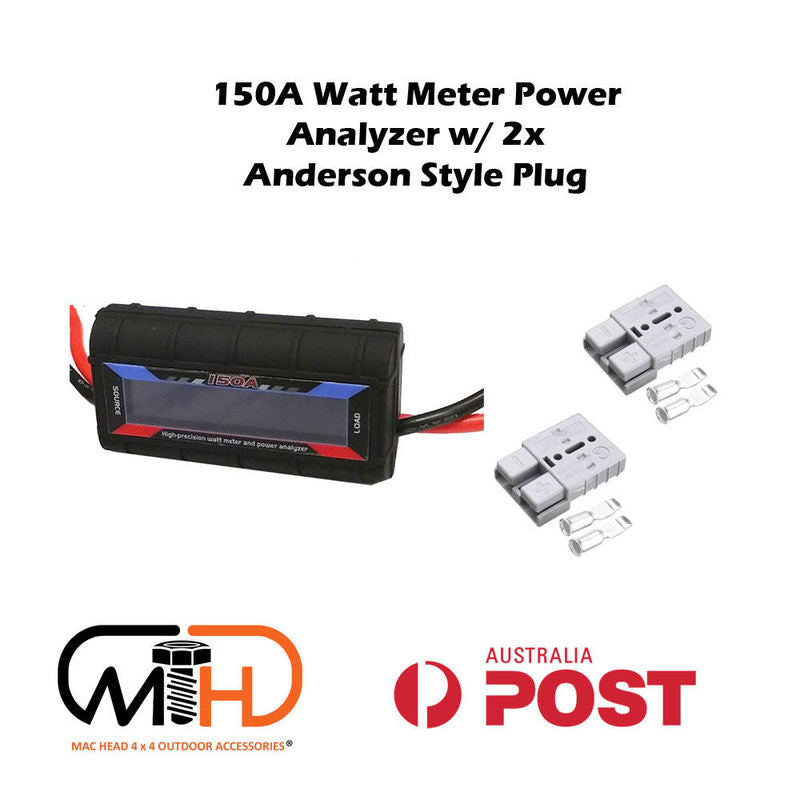

150A Watt Meter Power Analyzer Digital LCD Solar Volt Amp Anderson Style Plug AU

150A Watt Meter Power Analyzer Digital LCD Solar Volt Amp Anderson Style Plug AU

Features

• Prevents peak currents damaging battery, ESC, motors, wiring and
• Verifies sufficient operating voltage under load
• Individual cell balancing.Set cutoff voltages, check battery capacity health
• Confirms proper battery charger operation (connect between your battery and charger)
• Detect receivers and actual operating current so as to make sure whether an UBEC is needed

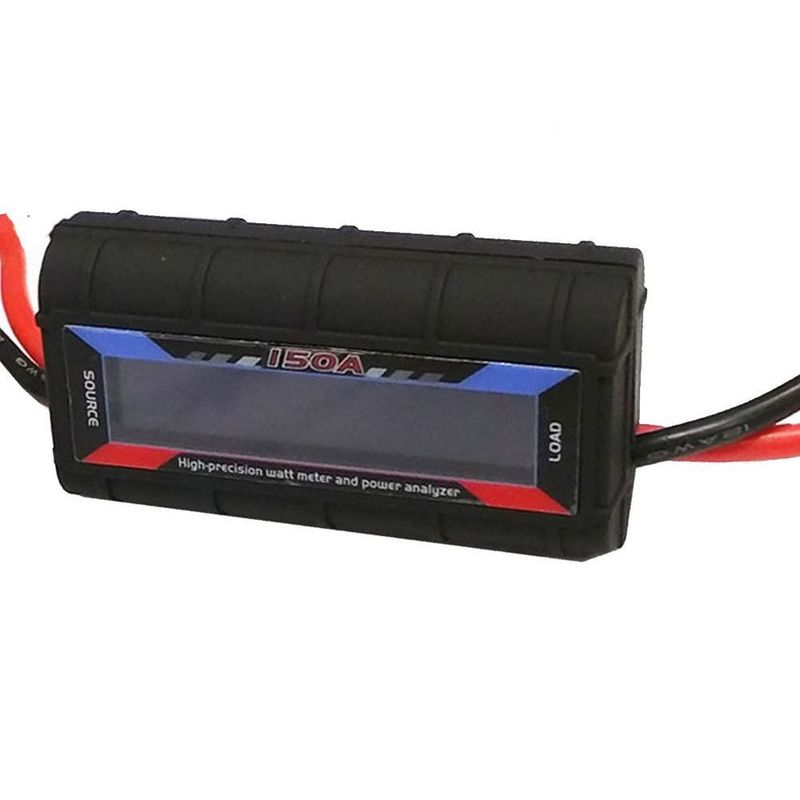

• Blue backlit LCD display
• 2x Anderson Style Plug included

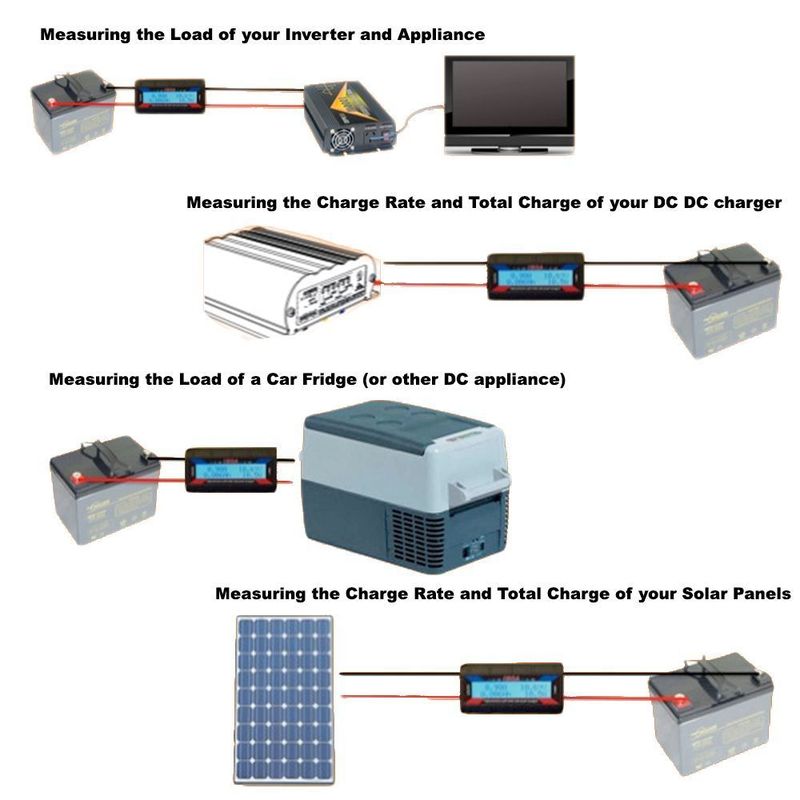

• These meters are easily plugged in, in-line, to measure:
• Amp Hours(Ah) - Total charge Ah delivered from source to load
• Amp Peak (Ap) - Highest amp value delivered (Typically startup cycle for inverters, compressors, fridges etc.)
• Amp(A) - Amps being delivered at that point in time
• Voltage - Source voltage, and minimum source voltage. Good for measuring voltage at lowest point of charge ( E.G. Minimum overnight voltage of car fridge battery)
• Power(Watts) - Peak watts, watts being delivered at that point in time

Specifications

• Operates from 4.8-60V
• 0V with optional auxiliary battery
• Measures: 0 to 130 Amps (resolution 0.01A)
• Measures: 0 to 60V (resolution 0.01A)
• Measures: 0 to 6554W (resolution 0.1W)
• Measures: 0 to 65 Ah (resolution 0.001 Ah)
• Measures: 0 to 6554 Watt Hours (resolution 0.1 Wh)
• Dimensions: 85 x 42 x 25mm
• Weight: 85g
• Color: Black
