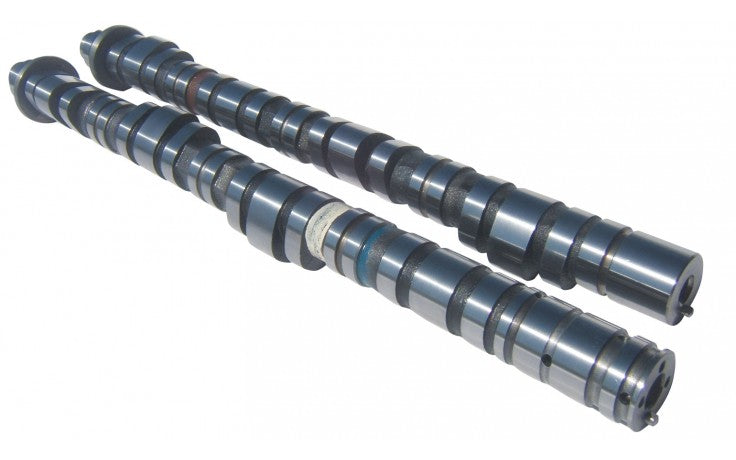

Stage 2 racing cams to suit well modified 2.0L and 2.4L engines for street/strip and track racing. Primary/Intermediate lobe specifications are 258 & 272/256 & 258 degrees advertised duration. 8.50mm & 9.20mm/7.15mm & 7.40mm lift.
Engine Make: Engine Model: Part Number:
HONDA K20 i-VTEC 179-B
Valve Clearance: Intake: 0.30mm Set HOT at the VALVE
Exhaust: 0.30mm Set HOT at the VALVE
Cam Lift: Intake: 8.12mm Exhaust: 7.35mm
Rocker Ratio: Intake: 1.7 Exhaust: 1.7
Nett Valve Lift: Intake: 13.50mm Exhaust: 12.20mm
Advertised Duration @ 0.10mm Intake: 306 Exhaust: 302
Duration @ 1.00mm VALVE LIFT Intake: 260 Exhaust: 244
Timing @ 1.00mm VALVE LIFT IVO: EVO: 46 BBDC
IVC: EVC: 18 ATDC
Suggested Centre Lines: Intake: VARI Exhaust: 104
VALVE Lift @ TDC Intake: Exhaust: 2.46
