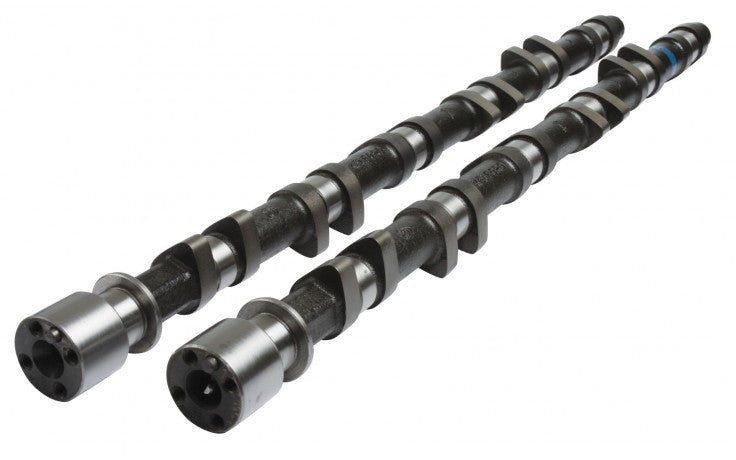

274/270 Degree split lobe high performance cams to suit a range of motorsport applications. These are especially effective with engines running E85 fuel.
Engine Make: Engine Model: Part Number:
NISSAN RB26DETT 182-S
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
Exhaust: 0.30mm Set COLD at the CAM
Cam Lift: Intake: 10.80mm Exhaust: 10.80mm
Rocker Ratio: Intake: 1 Exhaust: 1
Nett Valve Lift: Intake: 10.55mm Exhaust: 10.50mm
Advertised Duration @ 0.10mm Intake: 274 Exhaust: 274
Duration @ 1.00mm VALVE LIFT Intake: 236 Exhaust: 236
Timing @ 1.00mm VALVE LIFT IVO: 8 BTDC EVO: 54 BBDC
IVC: 48 ABDC EVC: 2 ATDC
Suggested Centre Lines: Intake: 110 Exhaust: 116
VALVE Lift @ TDC Intake: 1.88mm Exhaust: 1.18
