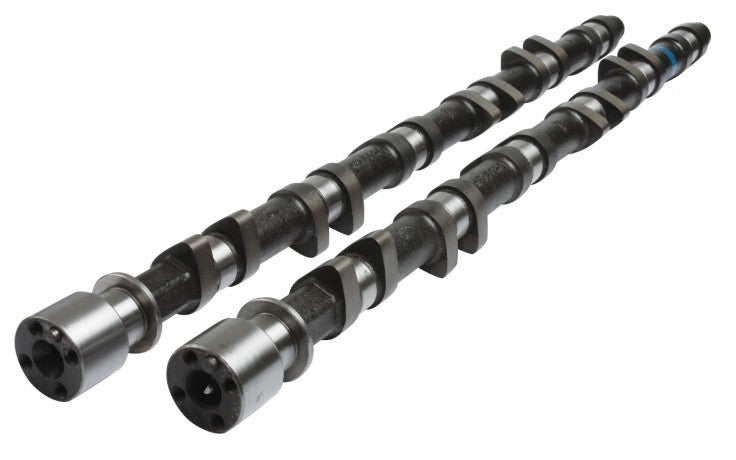

292 Degree split lobe drag racing cams. These suit high boost alcohol engines.
Engine Make: Engine Model: Part Number:
NISSAN RB26DETT 182-SG
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
Exhaust: 0.30mm Set COLD at the CAM
Cam Lift: Intake: 11.35mm Exhaust: 11.40mm
Rocker Ratio: Intake: 1 Exhaust: 1
Nett Valve Lift: Intake: 11.10mm Exhaust: 11.10mm
Advertised Duration @ 0.35mm Intake: 292 Exhaust: 300
Duration @ 1.00mm VALVE LIFT Intake: 254 Exhaust: 260
Timing @ 1.00mm VALVE LIFT IVO: 16 BTDC EVO: 70 BBDC
IVC: 58 ABDC EVC: 10 ATDC
Suggested Centre Lines: Intake: 111 Exhaust: 120
VALVE Lift @ TDC Intake: 2.66mm Exhaust: 1.93
