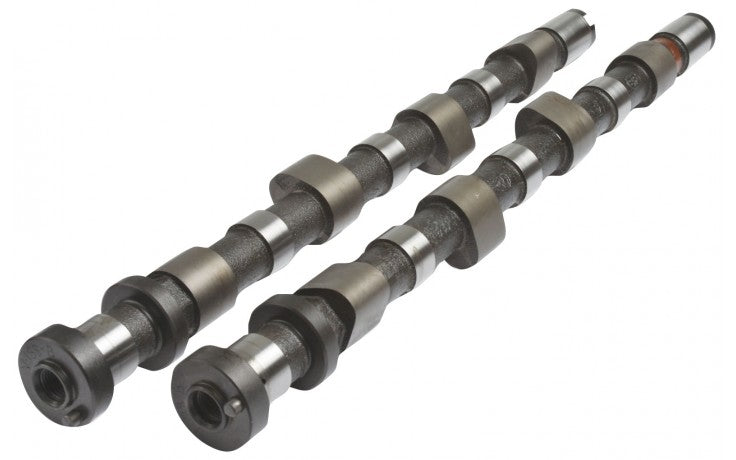

Ultimate drift spec cams featuring maximum lobe area and low duration for fast spool and lots of top end power. Requires KVS93 valve springs. KVS93-BT valve springs are required if running over 2 bar boost.
Engine Make: Engine Model: Part Number:
NISSAN SR20DET S13 TURBO 188-B
Valve Clearance: Intake: Set at the
Exhaust: Set at the
Cam Lift: Intake: 7.74mm Exhaust: 7.42mm
Rocker Ratio: Intake: 1.55 Exhaust: 1.55
Nett Valve Lift: Intake: 12.00mm Exhaust: 11.50mm
Advertised Duration @ 0.10mm Intake: 268 Exhaust: 272
Duration @ 1.00mm VALVE LIFT Intake: 226 Exhaust: 230
Timing @ 1.00mm VALVE LIFT IVO: 5 BTDC EVO: 50 BBDC
IVC: 41 ABDC EVC: 0 TDC
Suggested Centre Lines: Intake: 108 Exhaust: 115
VALVE Lift @ TDC Intake: 1.52mm Exhaust: 1.06
