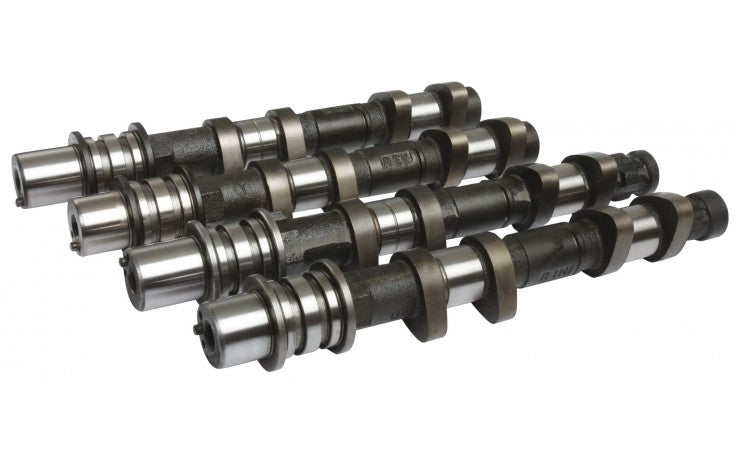

Race and Rally camshafts. High lift, low duration design for great throttle response. Must have shimless buckets and aftermarket ECU.
Engine Make: Engine Model: Part Number:
SUBARU EJ20 WRX Version 5-6 non AVCS 199-J
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
Exhaust: 0.25mm Set COLD at the CAM
Cam Lift: Intake: 10.90mm Exhaust: 10.45mm
Rocker Ratio: Intake: 1 Exhaust: 1
Nett Valve Lift: Intake: 10.70mm Exhaust: 10.20mm
Advertised Duration @ 0.25mm Intake: 264 Exhaust: 260
Duration @ 1.00mm VALVE LIFT Intake: 225 Exhaust: 222
Timing @ 1.00mm VALVE LIFT IVO: 2.5 BTDC EVO: 44 BBDC
IVC: 42.5 ABDC EVC: 2 BTDC
Suggested Centre Lines: Intake: 110 Exhaust: 113
VALVE Lift @ TDC Intake: 1.28mm Exhaust: 0.83
