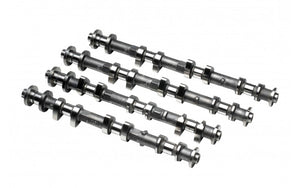

276/276 Degrees advertised duration, 11.00mm/10.97mm lift. Stage 3 racing cams to suit well built racing engines. Suitable for many types of motorsport applications.
Engine Make: Engine Model: Part Number:
NISSAN VR38 R35 GTR 231-C
Valve Clearance: Intake: 0.30mm Set COLD at the CAM
Exhaust: 0.33mm Set COLD at the CAM
Cam Lift: Intake: 11.30mm Exhaust: 11.30mm
Rocker Ratio: Intake: 1 Exhaust: 1
Nett Valve Lift: Intake: 11.00mm Exhaust: 10.97mm
Advertised Duration @ 0.30mm Intake: 276 Exhaust: 276
Duration @ 1.00mm VALVE LIFT Intake: 236 Exhaust: 236
Timing @ 1.00mm VALVE LIFT IVO: 12 ATDC EVO: 53 BBDC
IVC: 68 ABDC EVC: 3 ATDC
Suggested Centre Lines: Intake: 130 Exhaust: 115
VALVE Lift @ TDC Intake: 0.23mm Exhaust: 1.28
