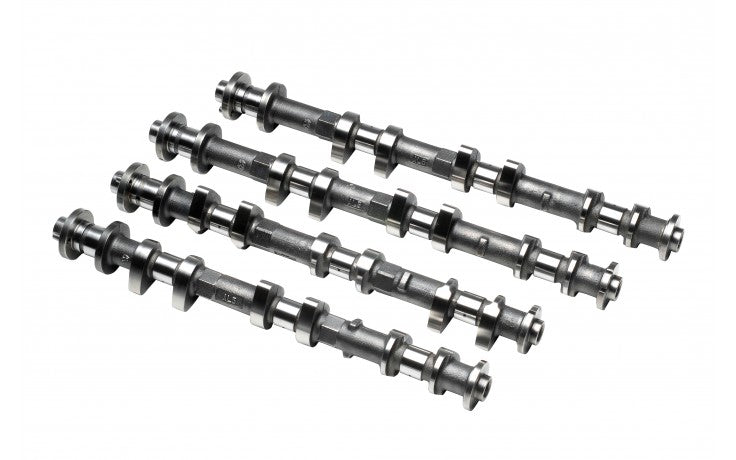

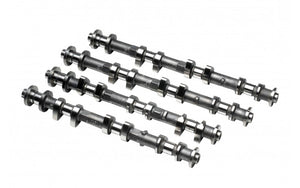

Serious race cams to suit drag racing engines using E85 or methanol fuel. The lobe designed to suit high RPM, high boost applications.
Engine Make: Engine Model: Part Number:
NISSAN VR38 R35 GTR 231-D
Valve Clearance: Intake: 0.30mm Set COLD at the CAM
Exhaust: 0.33mm Set COLD at the CAM
Cam Lift: Intake: 10.90mm Exhaust: 10.90mm
Rocker Ratio: Intake: 1 Exhaust: 1
Nett Valve Lift: Intake: 10.60mm Exhaust: 10.57mm
Advertised Duration @ 0.30mm Intake: 284 Exhaust: 290
Duration @ 1.00mm VALVE LIFT Intake: 240 Exhaust: 244
Timing @ 1.00mm VALVE LIFT IVO: 10 ATDC EVO: 60 BBDC
IVC: 70 ABDC EVC: 4 ATDC
Suggested Centre Lines: Intake: 130 Exhaust: 118
VALVE Lift @ TDC Intake: 0.38mm Exhaust: 1.37
