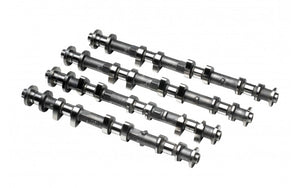

Split lobe design cams, to promote swirl and maximise efficiency. Suits street, track and endurance racing applications.
Engine Make: Engine Model: Part Number:
NISSAN VR38 R35 GTR 231-S6
Valve Clearance: Intake: 0.30mm Set COLD at the CAM
Exhaust: 0.33mm Set COLD at the CAM
Cam Lift: Intake: 10.90mm Exhaust: 10.88mm
Rocker Ratio: Intake: 1 Exhaust: 1
Nett Valve Lift: Intake: 10.60mm Exhaust: 10.55mm
Advertised Duration @ 0.30mm Intake: 274 Exhaust: 274
Duration @ 1.00mm VALVE LIFT Intake: 232 Exhaust: 232
Timing @ 1.00mm VALVE LIFT IVO: 10 ATDC EVO: 51 BBDC
IVC: 62 ABDC EVC: 1 ATDC
Suggested Centre Lines: Intake: 126 Exhaust: 115
VALVE Lift @ TDC Intake: 0.38mm Exhaust: 1.17
