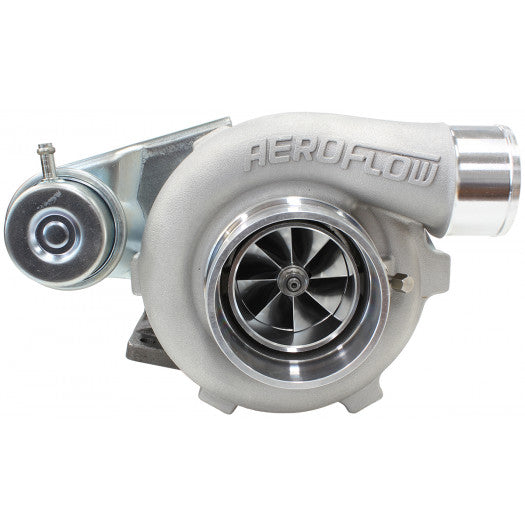

BOOSTED 4849.72 V BAND FLANGE V BAND OUTLET G25-550 IWG

BOOSTED 4849.72 V BAND FLANGE V BAND OUTLET G25-550 IWG

Regular price
$1,001.00
Sale price
$1,001.00
Regular price
$1,178.00
Sold out
Unit price
per
Tax included.

Recommended horsepower rating: 300-550HP
Recommended engine displacement: 1.8L to 3L

Dual ceramic ball bearing
Billet aluminium compressor wheel
Ported shroud compressor housing cover
Speed sensor port included in compressor cover (sold separately, AF8050-1010)
Inlet flange single layer gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit
Turbine inlet gasket sold separately AF9557-0001
Recommended turbo drain adapter AF463-01 or AF463-05
M14x1.5mm coolant fittings sold separately

Compressor
Inducer: 48mm
Exducer: 60mm
Extended Tip: 73.79mm
A/R: 0.70

Turbine
Inducer: 54mm
Exducer: 49mm
A/R: 0.72

Compressor Inlet: 3" Slip fit
Compressor Outlet: 2" Slip fit
Turbine Inlet Flange: Vband
Turbine Outlet Flange: Vband
Wastegate: Internal wastegate with 8.7psi actuator
