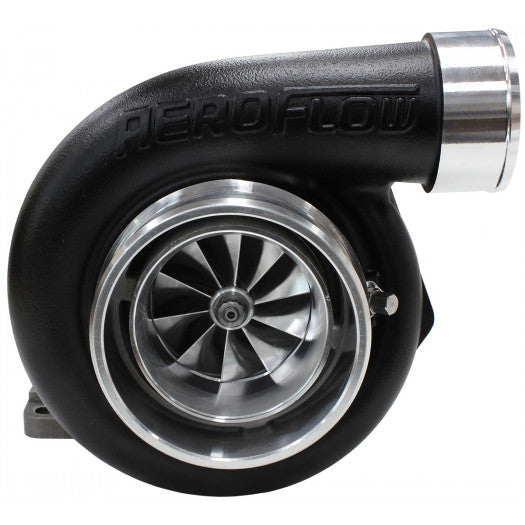

BOOSTED 6662.63 T3 FLANGE V-BAND OUTLET GTX3582 BLACK

BOOSTED 6662.63 T3 FLANGE V-BAND OUTLET GTX3582 BLACK

Regular price
$1,813.60
Sale price
$1,813.60
Regular price
$2,133.65
Sold out
Unit price
per
Tax included.

Recommended horsepower rating: 450-850HP
Recommended engine displacement: 2L to 4.5L

Dual ceramic ball bearing
Billet aluminium compressor wheel
Ported shroud compressor housing cover
Speed sensor port included in compressor cover (sold separately, AF8050-1010)
External wastegate sold separately
Inlet flange single layer gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit
Turbine inlet gasket sold separately AF9557-0005
Recommended turbo drain adapter AF463-01 or AF463-05
M14x1.5mm coolant fittings sold separately
V-Band sold separately AF8080-1000

Compressor
Inducer: 66mm
Exducer: 82mm
Extended Tip: 87.5mm
A/R: 0.72

Turbine
Inducer: 68mm
Exducer: 62.3mm
A/R: 0.63

Compressor Inlet: 4" Slip fit
Compressor Outlet: 2.5" Slip fit
Turbine Inlet Flange: T3
Turbine Outlet Flange: V-Band
Wastegate: External wastegate
