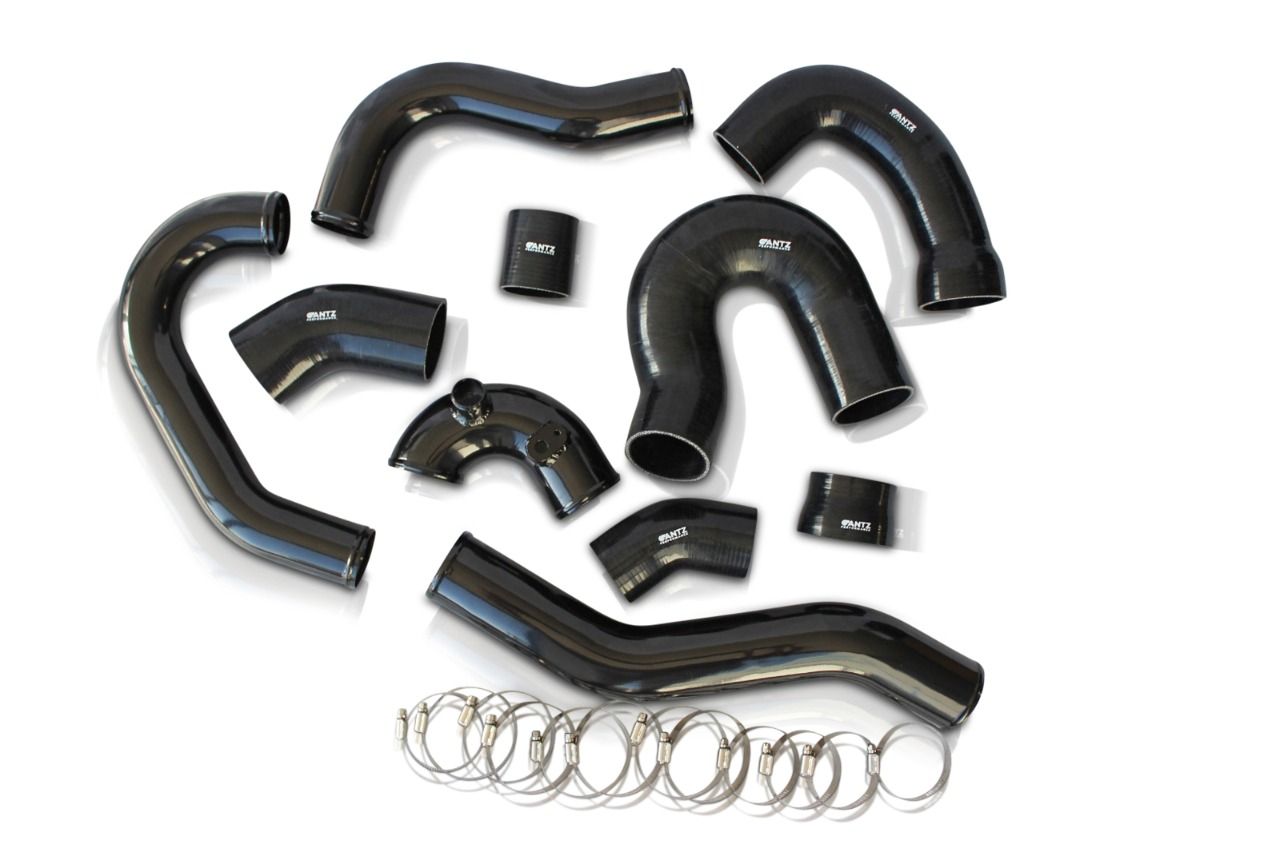

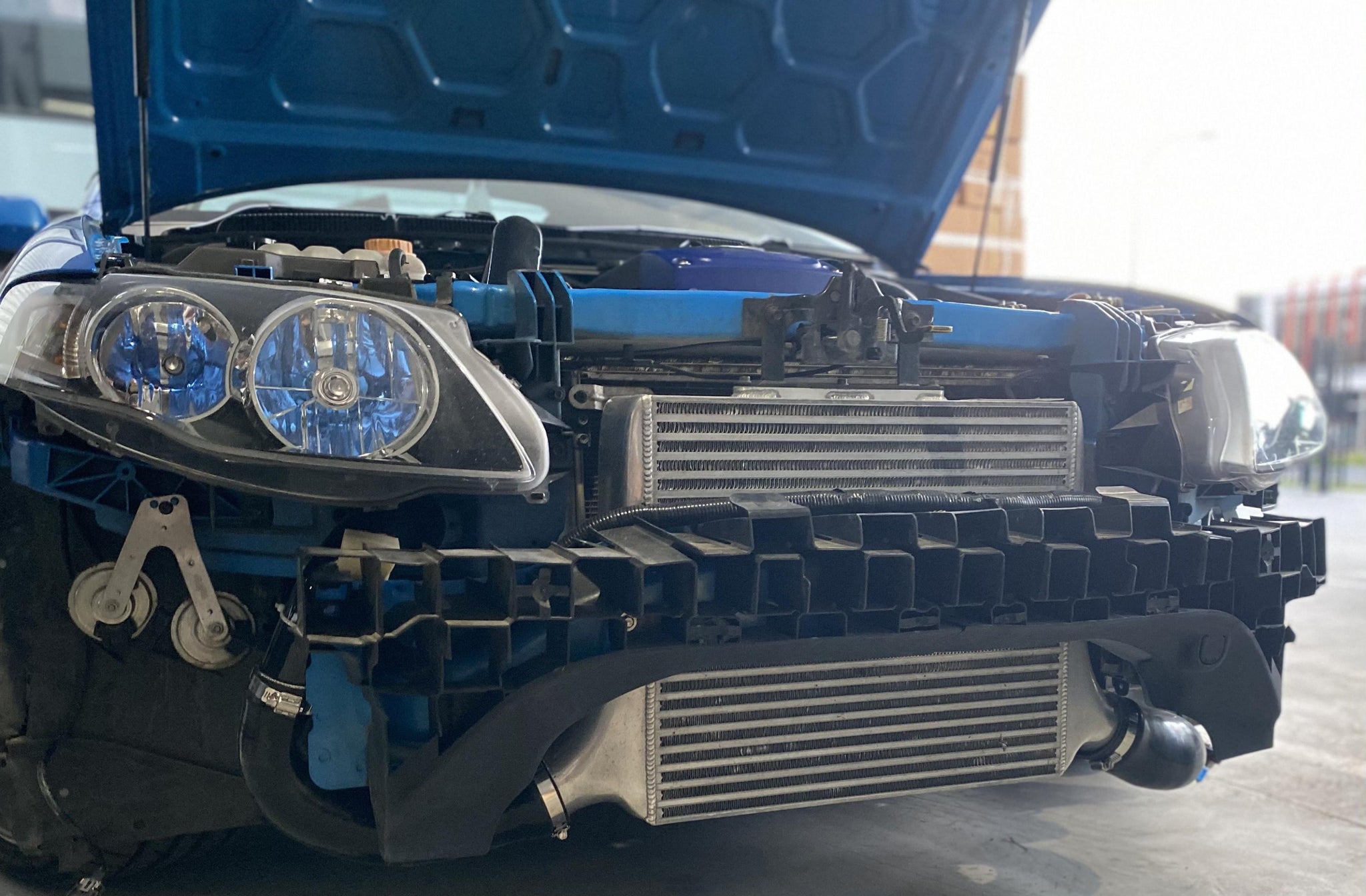

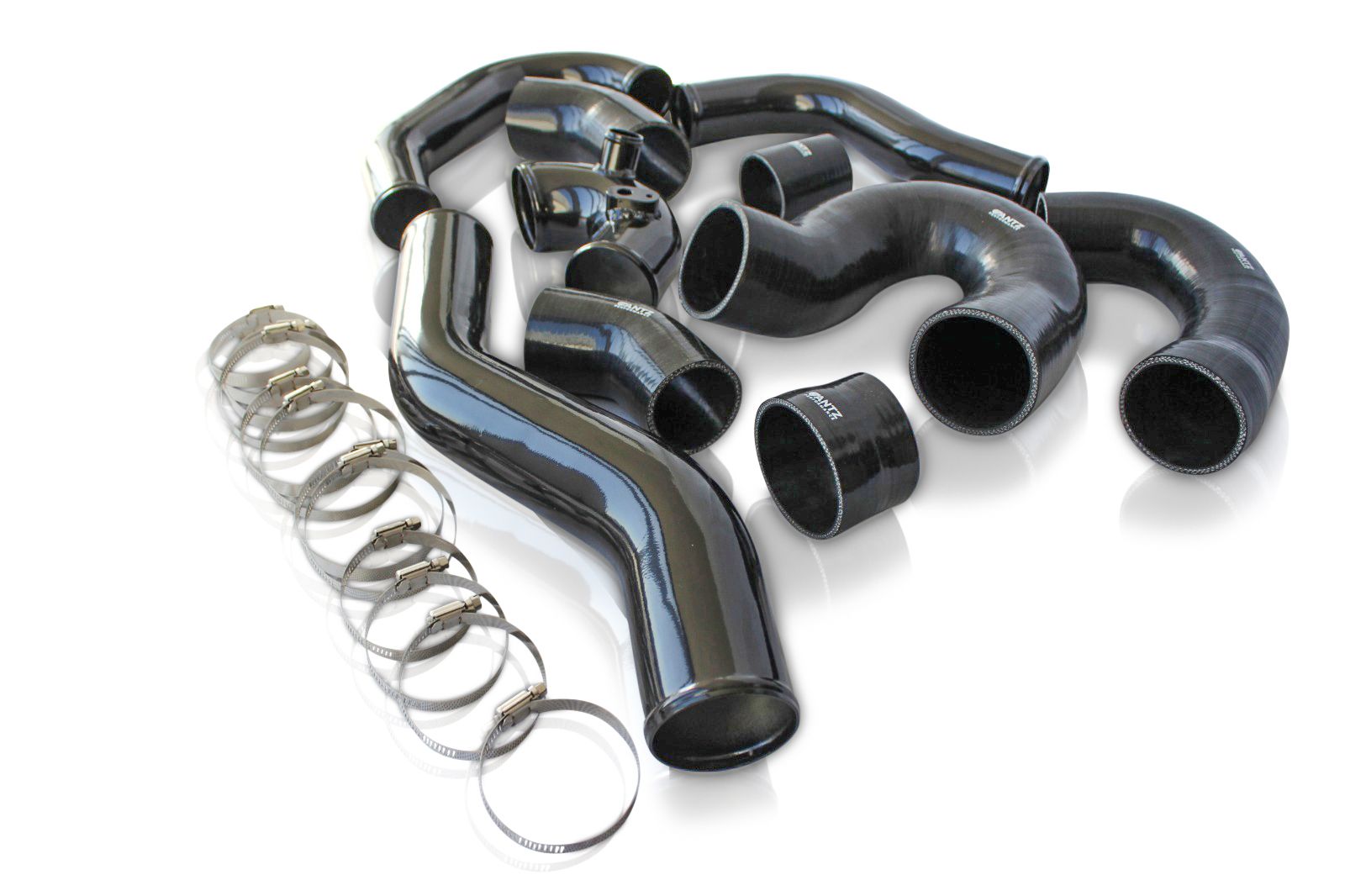

This stage 3 race edition piping kit is a replacement for the factory fg xr6 turbo models, compatible with most stage 3 intercoolers on the market with 3″ inch inlet and outlets.

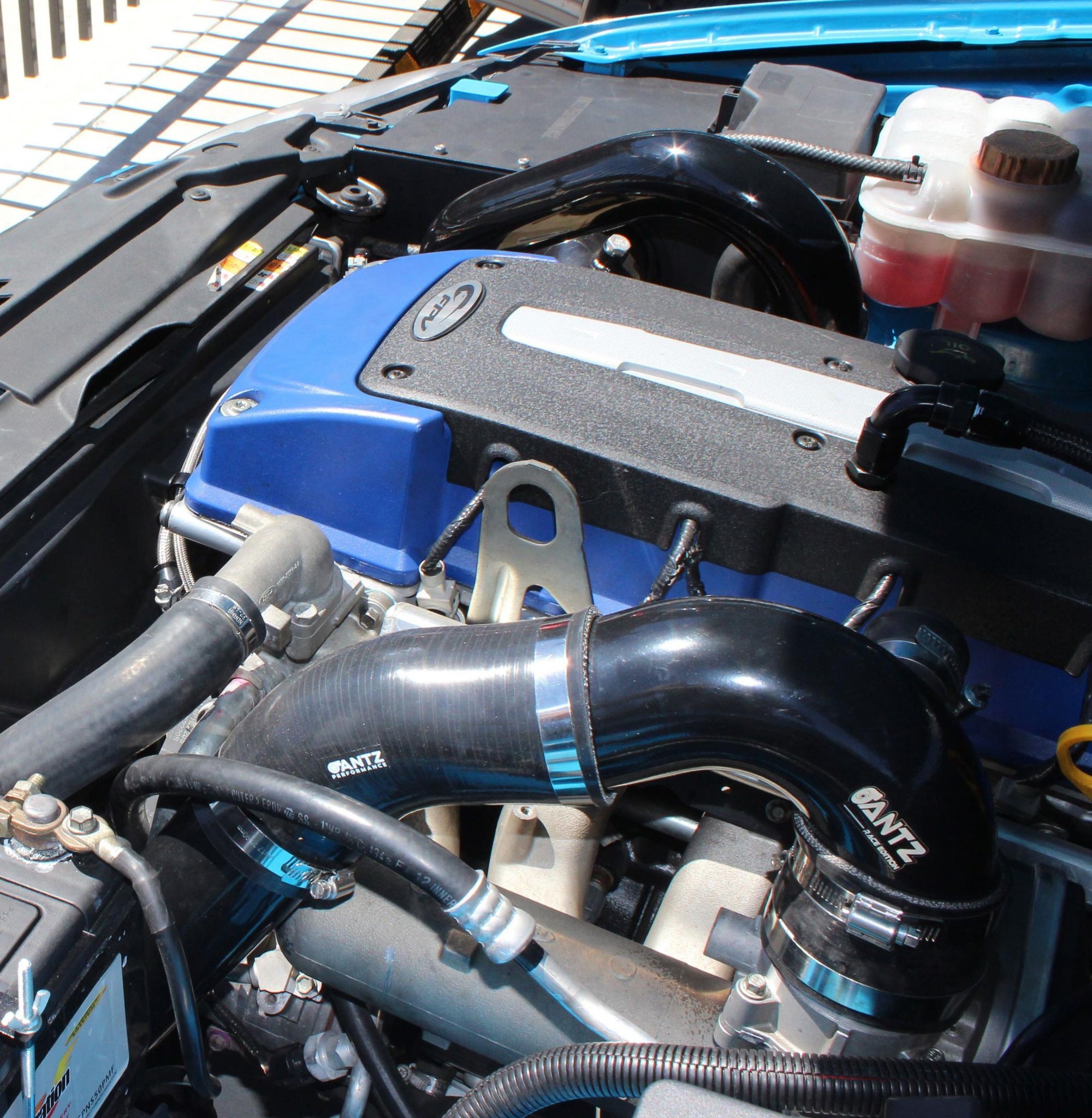

Our stage 3 piping kit is a full replacement piping kit from the throttle body elbow to the turbo charger.
The throttle body elbow is also included.
Utilizing a 64-76mm hot side and a 76mm cold side setup.
Completely constructed from CNC mandrel bent piping, finished in a gloss black powder coat.
Black silicon joiners constructed to a 4ply thickness to prevent ballooning on high boost applications.
Silicon joiner included to a 2.5″ turbocharger outlet for most aftermarket turbochargers.
