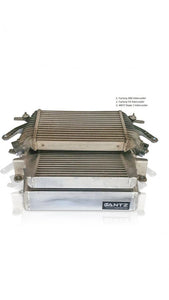

Lets face it, ‘Street’ size intercoolers are a minor upgrade over your stock intercooler, so much so; we recommend to go straight to a race core (aka Stage 2 intercooler).

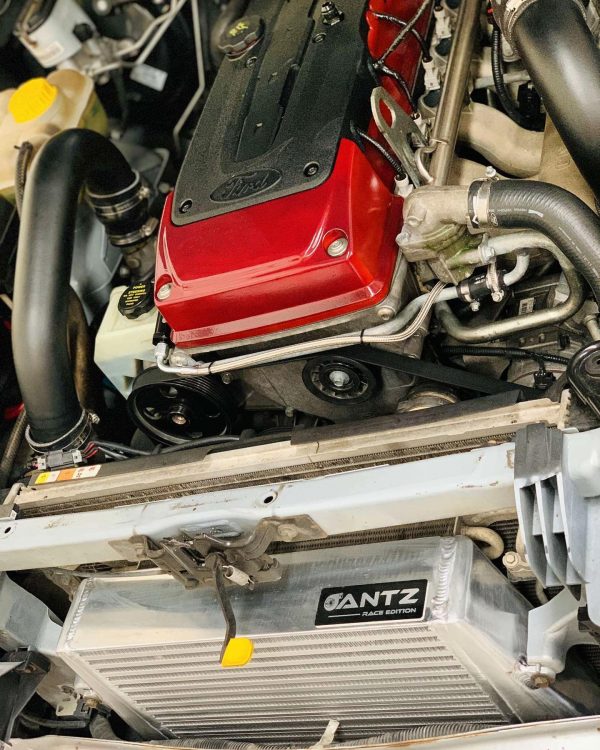

We have used our FG race edition intercooler on a FG F6 ute producing 486rwkw (approx 650rwhp) on a mainline dyno, results supporting effective and efficient cooling capabilities.
So for those hunting a true intercooler upgrade on a budget, this is a great way to gain performance without breaking the bank.
Features:
- Aftermarket intercooler piping is required for use with this intercooler as factory piping will not fit (Aftermarket piping is supplied with this bundle).

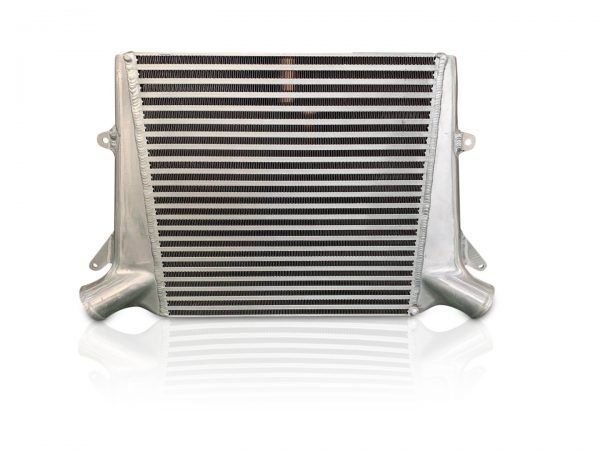

- Dimensions of bar & plate core: 410 x 400 x 90mm.
- Tig welded construction
- Raw aluminium finish
- 2.5″ (64mm) inlet and outlet.
- Proven to effectively reduce air temperatures for a high performance application.

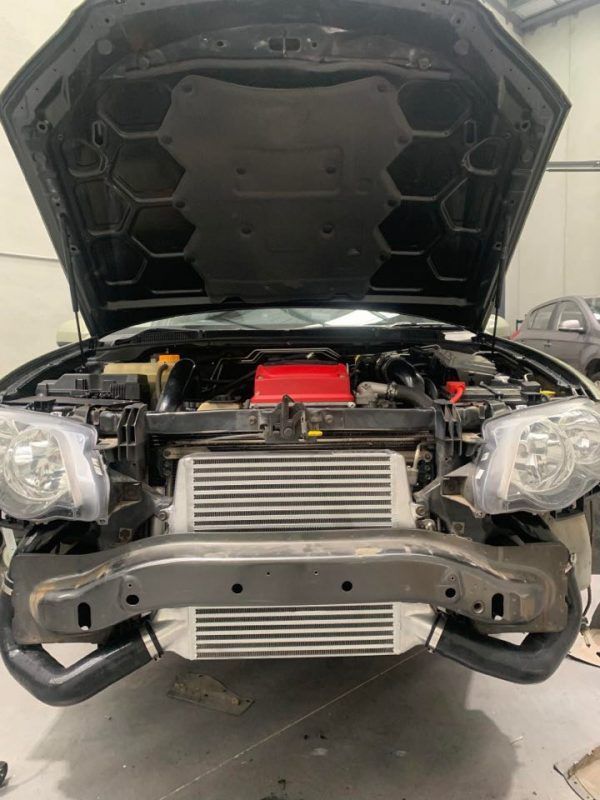

- Utilises factory intercooler mounting points for an easy installation and fitment
- (Fitting guide provided on our fitting section)
- Intercooler core is approximately 10kg.
- Piping kit includes a 2.5″ (64mm) hot side piping and a 2.75″ (70mm) cold side aluminium piping.
Please note: As for most Stage 2 intercoolers on the current market, minor cutting is required. Please see fitting guide.

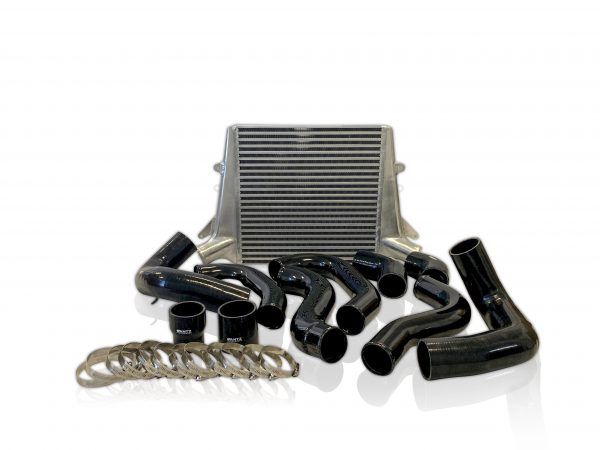

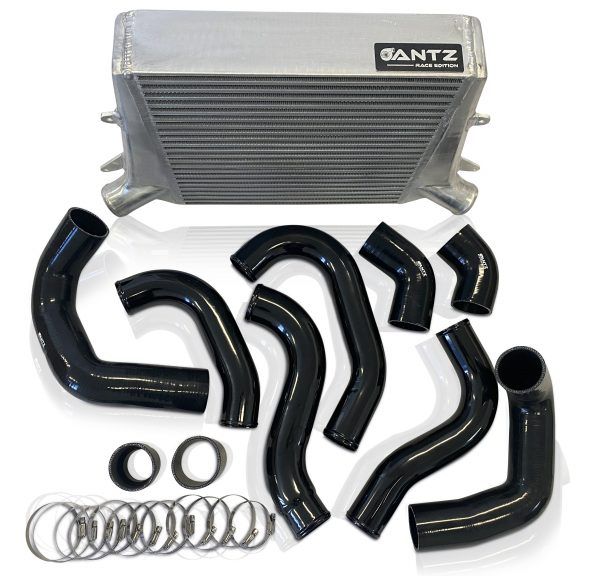

Bundle includes:
- FG/FGX Stage 2 Intercooler Core
- FG/FGX Stage 2 Intercooler piping kit
- FG/FGX Throttle Body elbow kit (not pictured)
Total weight of bundle approximately: 15kg
