Ford Mustang GT 2015-2019 32mm Transmission Oil Cooler LARGE

Ford Mustang GT (2015 -2020) Elite Series Trans Oil Cooler Kit - 32mm

PRODUCT DETAILS

• The latest internally turbulated tube & fin technology

• World-class TIG welding by our passionate fabricators

• State-of-the-art controlled atmosphere brazing process

• All items CAD designed to meet ISO9001 International standards for repeatability

• Race-proven performance backed by comprehensive wind tunnel testing

• Pressure tested and guaranteed

• 1 Year-manufactured warranty
• 100% Australian made

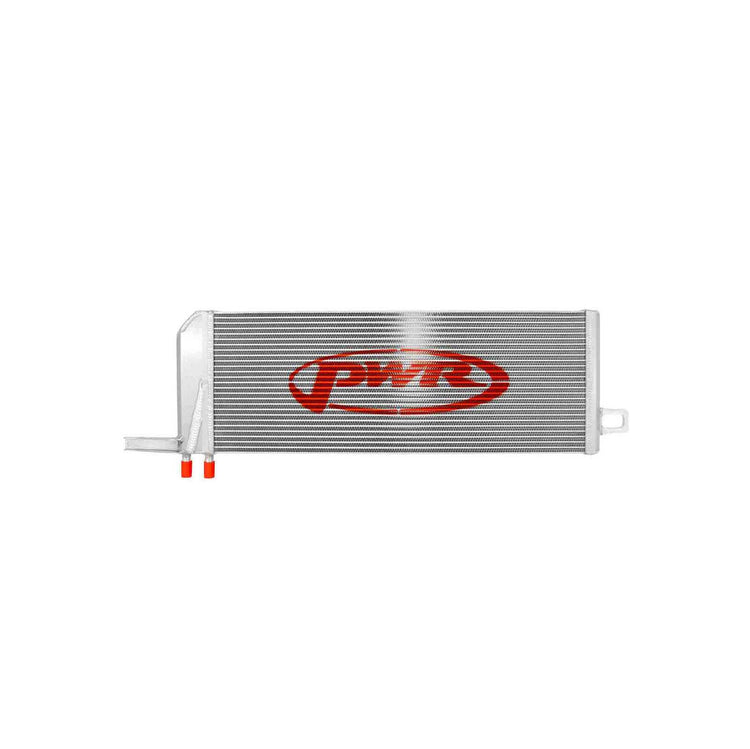

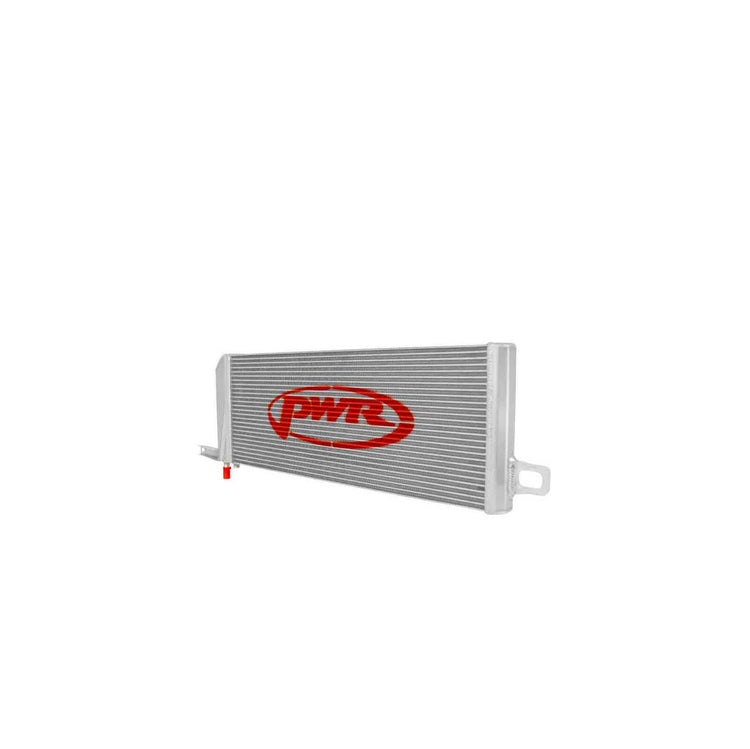

PWR’s new factory replacement Mustang Transmission oil cooler is a direct replacement and fits into the existing mounts and lines. It has been specifically designed to combat the factory transmission oil cooler’s overheating issues. The heat rejection characteristics of the unique tube and fin design reject an average of 6.82kW more heat than the OE cooler which equates to an average oil outlet temperature of 23.8°C lower than OE. PWR internally turbulated tube & fin oil coolers feature the latest in oil cooler technology as depended on by the world’s most elite motorsport categories. Oil passes through a fine, yet strong turbulation fin within the tube and coupled with a revolutionary closemesh fin & louver angle on the air side, provides maximum cooling efficiency tailored to track conditions. With these characteristics, each PWR oil cooler will deliver the highest level of quality, consistent durability, strength and performance exceeding the highest levels of customer expectation.

SPECIFICATIONS

• OEM Fit

• Light Weight Tube and Fin Core

• Internal Turbulator

• Billet Bracketry


WHAT'S INCLUDED

• 1 x Transmission Cooler


COMPATIBILITY

• FORD Mustang GT (2015-2020)


PWR can custom-make to your requirements. Please let us know if you would like thermo fan mounts, fan shrouds, temp switch bosses, in-tank auto cooler, external trans cooler mounts, ground welds, machined logo etching or any other custom configuration. Call us today on 07 55 471 600 or email info@pwr.com.au for a quote.
