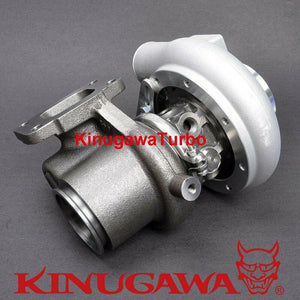

Kinugawa 3" Non Anti-surge Turbocharger TD05H-16KX Point Milling for Nissan Patrol Safari TD42 GU GR GQ Low Mount Ultimate Spool

Regular price: $1,519.00
Sale price: $1,519.00
Regular price
Unit price: per

Tax included.

Model

Compressor Wheel

Turbine Wheel

Quantity must be 1 or more

Product Features

Brand: KINUGAWA
Accommodation on the vehicle: Strengthen / Replace Turbo Chargers & Parts
For car makes / model: Nissan Patrol Safari TD42T Engine GR GU Y60 / GU Y61
Features: Strengthen Engine air intake
Manufacturer: Kinugawa Turbo Systems
Compressor Wheel: Billet Wheel

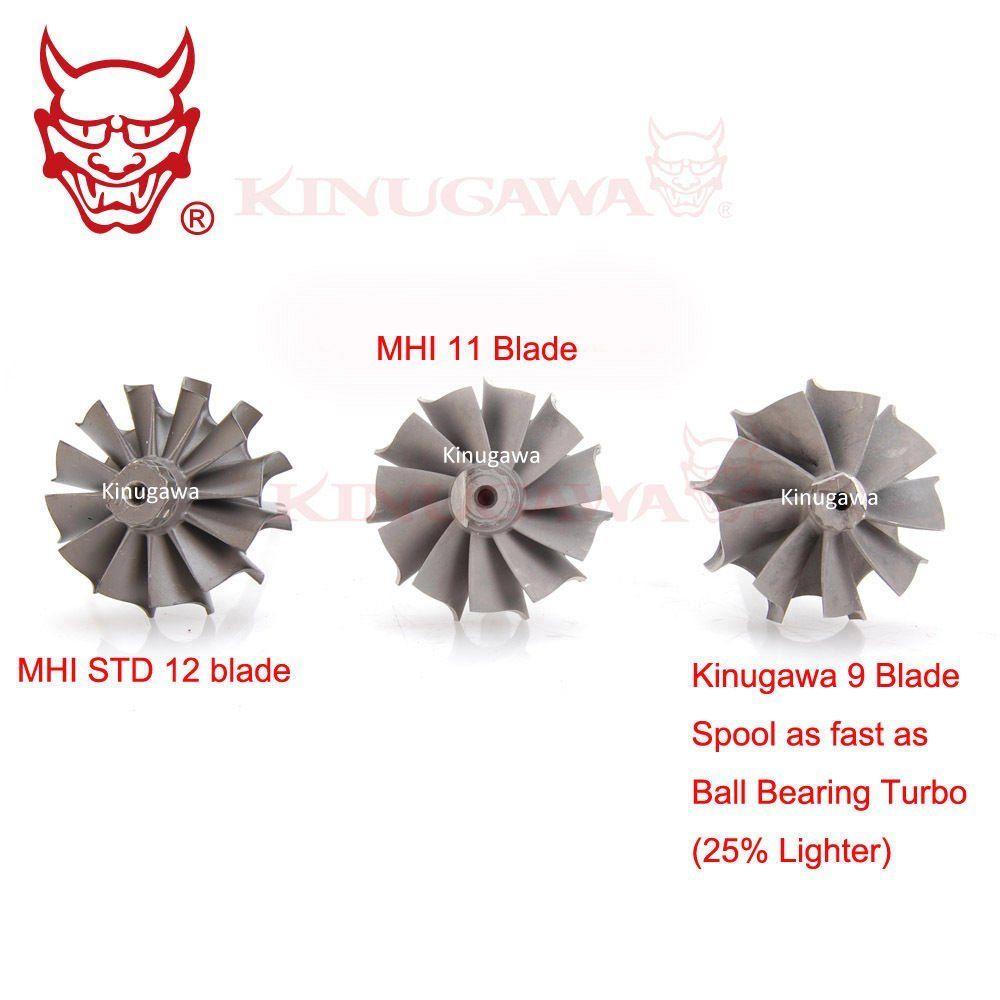

Turbine Wheel: 12 Blades STD or 9 Blades Wheel STS (High Flow)

Product description

Kinugawa TD05H-16KX Journal Bearing with adjustable actuator AND 9 blades STS high flow turbine wheel

Application

Nissan Patrol 2012 TY61, GU, Y61 Cab Chassis 4.2 D 4x4 AWD Diesel 4.2L 6cyl 91kW TD42 4169cc 91kW (Diesel)
Nissan Patrol 2012 TY61, GU, Y61 Cab Chassis 4.2 D 4x4 AWD Diesel 4.2L 6cyl 114kW TD42T 4169cc 114kW (Diesel)
Nissan Patrol 2011 TY61, GU, Y61 Cab Chassis 4.2 D 4x4 AWD Diesel 4.2L 6cyl 91kW TD42 4169cc 91kW (Diesel)
Nissan Patrol 2011 TY61, GU, Y61 Cab Chassis 4.2 D 4x4 AWD Diesel 4.2L 6cyl 114kW TD42T 4169cc 114kW (Diesel)
Nissan Patrol 2010 TY61, GU, Y61 Cab Chassis 4.2 D 4x4 AWD Diesel 4.2L 6cyl 91kW TD42 4169cc 91kW (Diesel)
Nissan Patrol 2010 TY61, GU, Y61 Cab Chassis 4.2 D 4x4 AWD Diesel 4.2L 6cyl 114kW TD42T 4169cc 114kW (Diesel)
Nissan Patrol 2009 TY61, GU, Y61 Cab Chassis 4.2 D 4x4 AWD Diesel 4.2L 6cyl 91kW TD42 4169cc 91kW (Diesel)
Nissan Patrol 2009 TY61, GU, Y61 Cab Chassis 4.2 D 4x4 AWD Diesel 4.2L 6cyl 114kW TD42T 4169cc 114kW (Diesel)
Nissan Patrol 2008 TY61, GU, Y61 Cab Chassis 4.2 D 4x4 AWD Diesel 4.2L 6cyl 91kW TD42 4169cc 91kW (Diesel)
Nissan Patrol 2008 TY61, GU, Y61 Cab Chassis 4.2 D 4x4 AWD Diesel 4.2L 6cyl 114kW TD42T 4169cc 114kW (Diesel)
Nissan Patrol 2007 TY61, GU, Y61 Cab Chassis 4.2 D 4x4 AWD Diesel 4.2L 6cyl 91kW TD42 4169cc 91kW (Diesel)
Nissan Patrol 2007 TY61, GU, Y61 Cab Chassis 4.2 D 4x4 AWD Diesel 4.2L 6cyl 114kW TD42T 4169cc 114kW (Diesel)
Nissan Patrol 2007 Y61, GR_, GU Station Wagon 4.2 D AWD Diesel 4.2L 6cyl 114kW TD42T 4169cc 114kW (Diesel)
Nissan Patrol 2006 TY61, GU, Y61 Cab Chassis 4.2 D 4x4 AWD Diesel 4.2L 6cyl 91kW TD42 4169cc 91kW (Diesel)
Nissan Patrol 2006 TY61, GU, Y61 Cab Chassis 4.2 D 4x4 AWD Diesel 4.2L 6cyl 114kW TD42T 4169cc 114kW (Diesel)
Nissan Patrol 2006 Y61, GR_, GU Station Wagon 4.2 D AWD Diesel 4.2L 6cyl 114kW TD42T 4169cc 114kW (Diesel)
Nissan Patrol 2005 TY61, GU, Y61 Cab Chassis 4.2 D 4x4 AWD Diesel 4.2L 6cyl 91kW TD42 4169cc 91kW (Diesel)
Nissan Patrol 2005 TY61, GU, Y61 Cab Chassis 4.2 D 4x4 AWD Diesel 4.2L 6cyl 114kW TD42T 4169cc 114kW (Diesel)
Nissan Patrol 2005 Y61, GR_, GU Station Wagon 4.2 D AWD Diesel 4.2L 6cyl 114kW TD42T 4169cc 114kW (Diesel)
Nissan Patrol 2004 TY61, GU, Y61 Cab Chassis 4.2 D 4x4 AWD Diesel 4.2L 6cyl 91kW TD42 4169cc 91kW (Diesel)

Nissan Patrol 1997 MQ, MK, GQ Cab Chassis 4.2 D (Y60) AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1997 Y60, GR, GQ SUV 4.2 D All-wheel Drive AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1996 MQ, MK, GQ Cab Chassis 4.2 D (Y60) AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1996 Y60, GR, GQ SUV 4.2 D All-wheel Drive AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1995 MQ, MK, GQ Cab Chassis 4.2 D (Y60) AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1995 Y60, GR, GQ SUV 4.2 D All-wheel Drive AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1994 MQ, MK, GQ Cab Chassis 4.2 D (Y60) AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1994 Y60, GR, GQ SUV 4.2 D All-wheel Drive AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1993 MQ, MK, GQ Cab Chassis 4.2 D (Y60) AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1993 Y60, GR, GQ SUV 4.2 D All-wheel Drive AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1992 MQ, MK, GQ Cab Chassis 4.2 D (Y60) AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1992 Y60, GR, GQ SUV 4.2 D All-wheel Drive AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1991 MQ, MK, GQ Cab Chassis 4.2 D (Y60) AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1991 Y60, GR, GQ SUV 4.2 D All-wheel Drive AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1990 MQ, MK, GQ Cab Chassis 4.2 D (Y60) AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1990 Y60, GR, GQ SUV 4.2 D All-wheel Drive AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1989 MQ, MK, GQ Cab Chassis 4.2 D (Y60) AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1989 Y60, GR, GQ SUV 4.2 D All-wheel Drive AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1988 MQ, MK, GQ Cab Chassis 4.2 D (Y60) AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)
Nissan Patrol 1988 Y60, GR, GQ SUV 4.2 D All-wheel Drive AWD Diesel 4.2L 6cyl 85kW TD42 4169cc 85kW (Diesel)

CHRA Size

-TD05H-16KX Journal Bearing

Wheels Spec

Kinugawa for SUBARU TD05H-16KX Journal Bearing Turbocharger with adjustable actuator AND STS (Superior Turbine Strike) 9 blades high flow turbine wheel, this twin-scroll edition features a ball-bearing cartridge, billet compressor wheel, and 10cm^2 housing. Because billet compressor wheel the overall weight of the wheel is lighter than competing turbochargers and allows for maximum air ow throughout the unit with the help of point milling on each blade. A unique wheel and blade design, featuring a 20% larger wheel with 17% longer blades than the factory turbocharger.

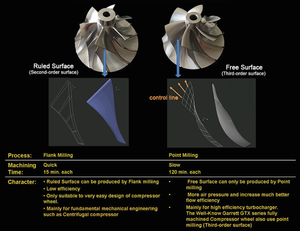

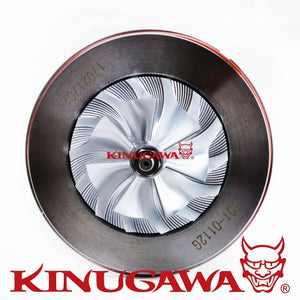

- Compressor wheel: 49.6 / 68.0 mm Free Surface

	Ruled Surface	Free Surface
Process	Flank Milling	Point Milling
Machining Time	Quick 15 mins.each	Slow 120 mins.each
Characters	1. Ruled Surface can be produced by Flank Milling 2. Low efficiency 3. Only suitable to the very easy design of compressor wheel 4. Mainly for fundamental mechanical engineering such as Centrifugal compressor	1. Free Surface can be only produced by Point Milling 2. More air pressure and increase much better flow efficiency. 3. Mainly for high efficiency turbochargers.

- Turbine wheel: 56 / 49.2 mm

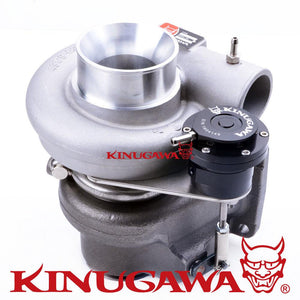

Compressor Housing

- Compressor inlet: 3" Non-Anit-Surge Cover

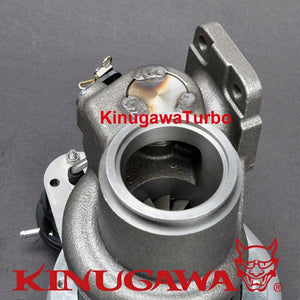

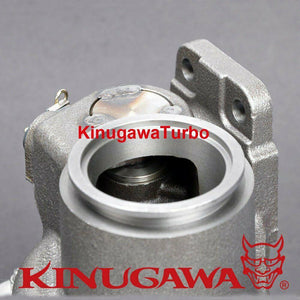

Turbine Housing

T3 inlet with 2.5" V-band outlet AR 6cm

Bearing Type

- Journal Bearing

- 360 Performance Thrust Bearing

Cooling Type

-Oil and Water Cooling System

Drive Pressure

- 1.0 bar default setting.

-We have 0.5bar, 0.8bar, 1.2bar, 1.5bar, 1.7bar, and 2.0bar spring settings, Please add a comment to your order if you need to change it.

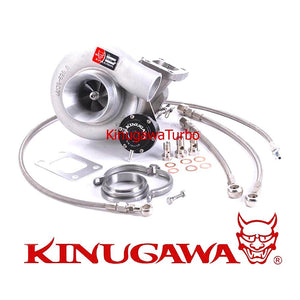

The set includes

-1 x Oil supply set

-1 x water supply and return pipe set

-1 x Return Oil Pipeline

-1 x turbine inlet gasket and v-band outlet adapter

-1 x Balance Report with Anti-Counterfeit Tag

Situation

-Brand New

-Full balance from SCHENK MBRS 110 Germany

Provider

-Kinugawa Turbo Systems

Guarantee

-One year
