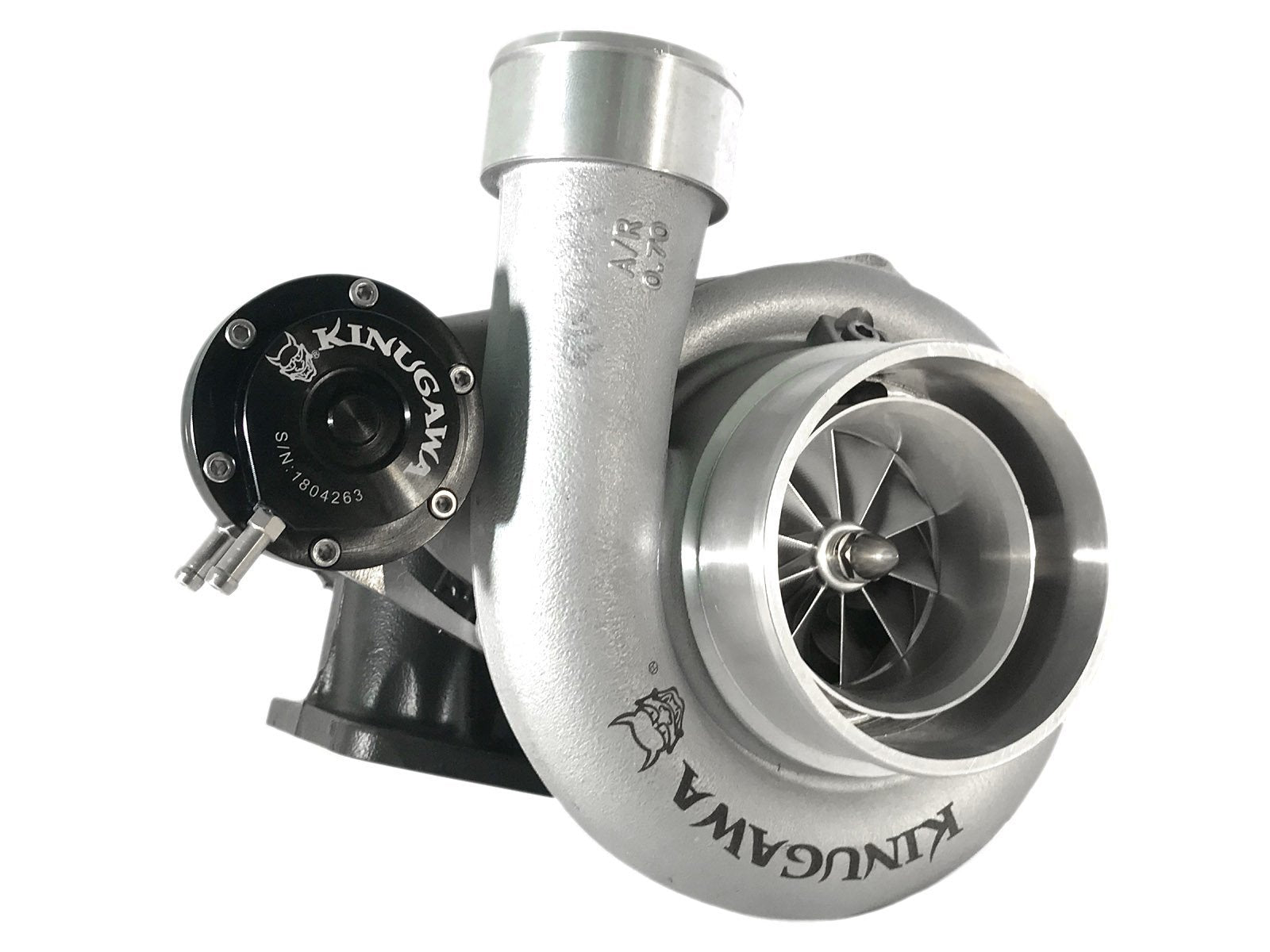

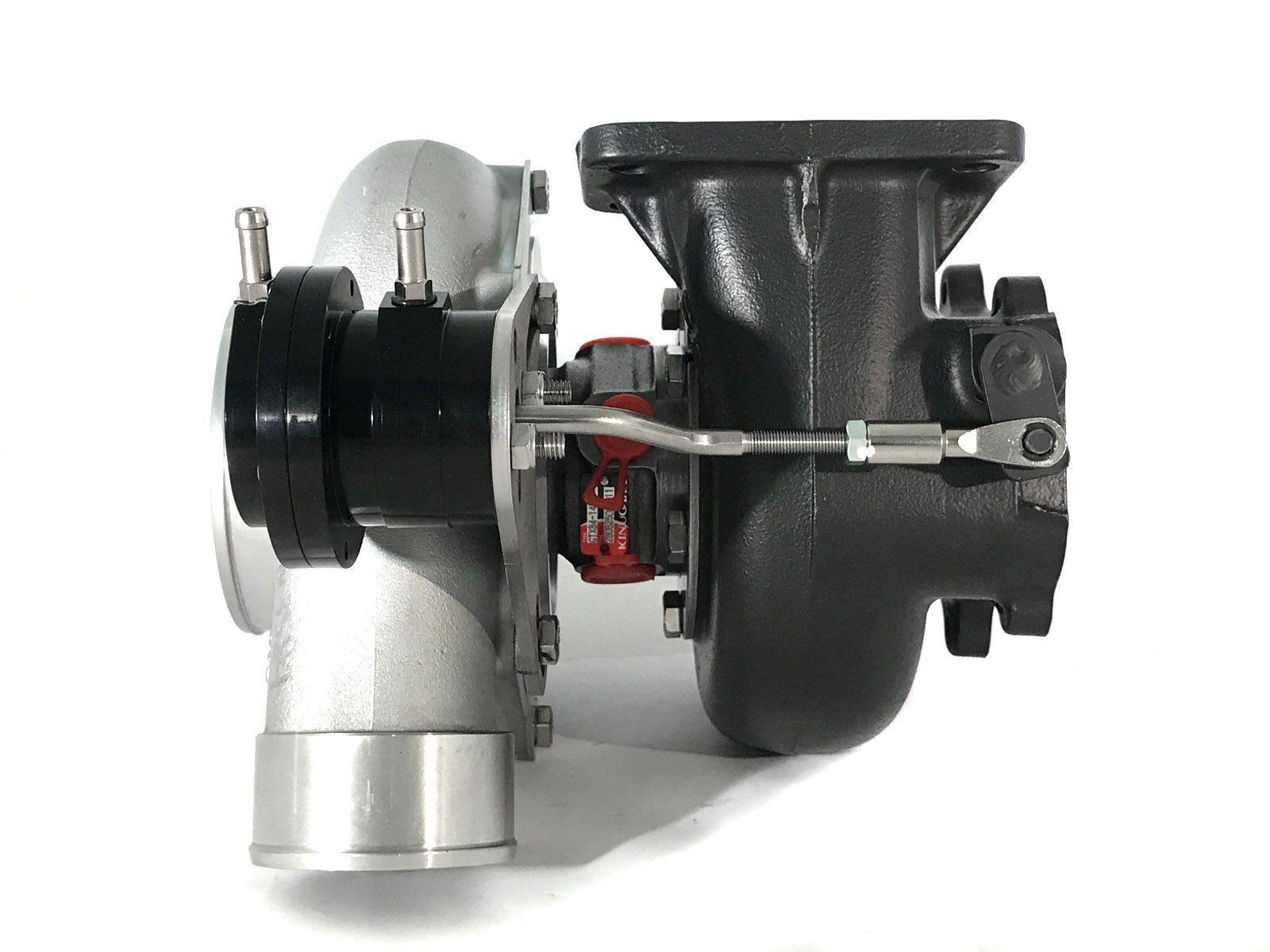

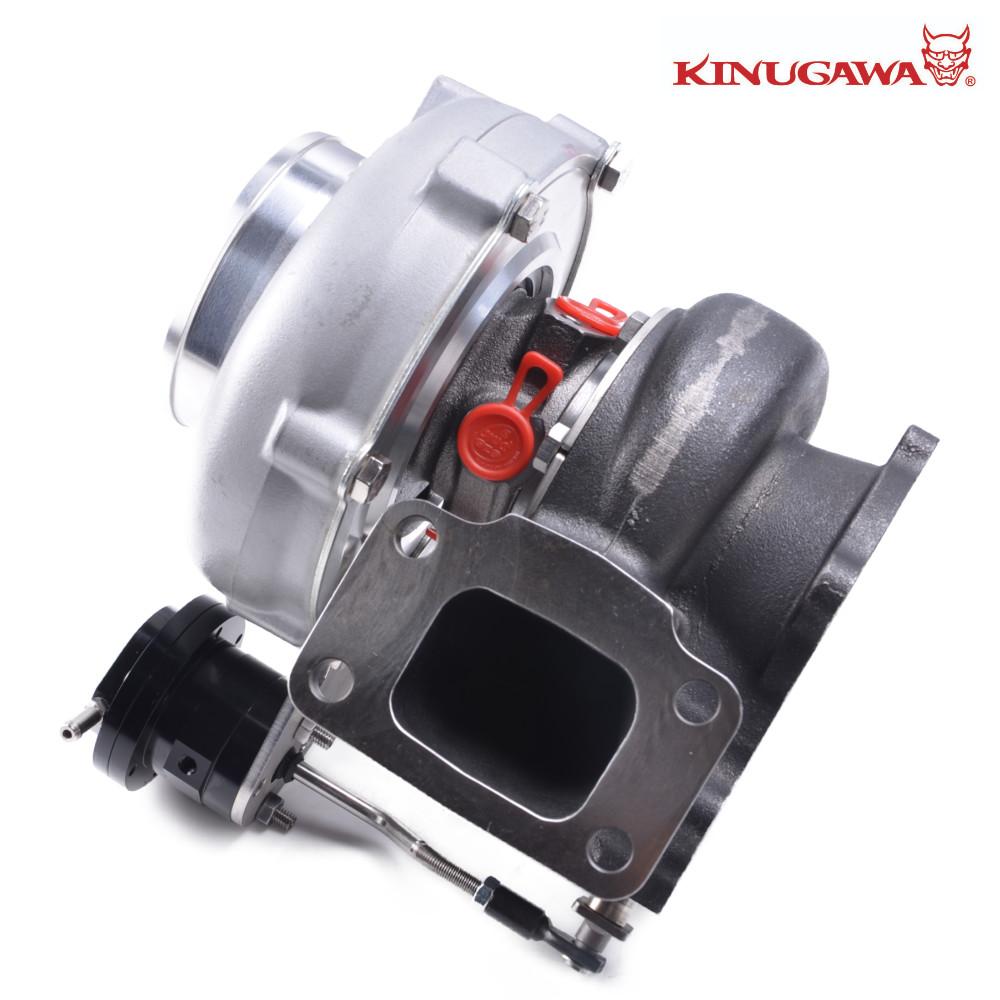

APPLICATION

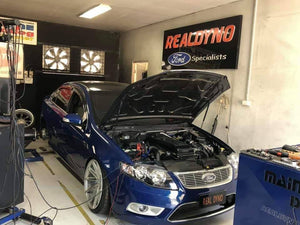

- Bolt-on replacement for the GT3582 turbo found on the BA/BF and FG/FGX Ford Falcon XR6 Turbo 4L.
- Universal T3 V-band Internal Wastegate Type
WHEEL SPEC
-Compressor wheel : 67mm / 84mm Gen 2
(10+0 point milling Billet Wheel with Extend Tip)
- Turbine wheel: 62.3 mm / 68 mm Gen 2 (9 blades aerodynamic design)
COMPRESSOR HOUSING
- compressor inlet OD : 4” / 100 mm
- compressor outlet OD : 2” / 51 mm
- compressor A/R : .70 w/ Anti_Surge

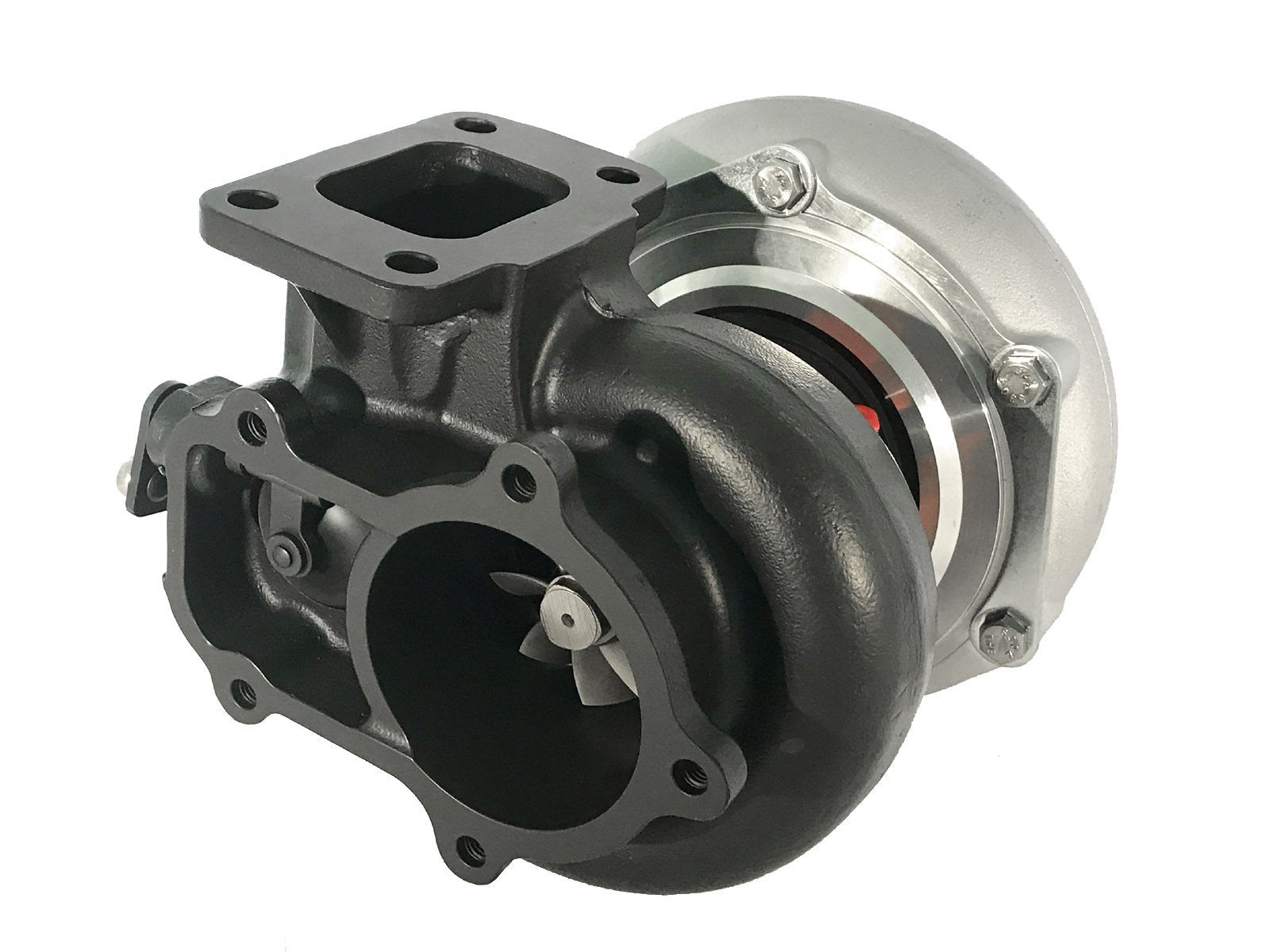

TURBINE HOUSING
- Turbine Inlet: T3

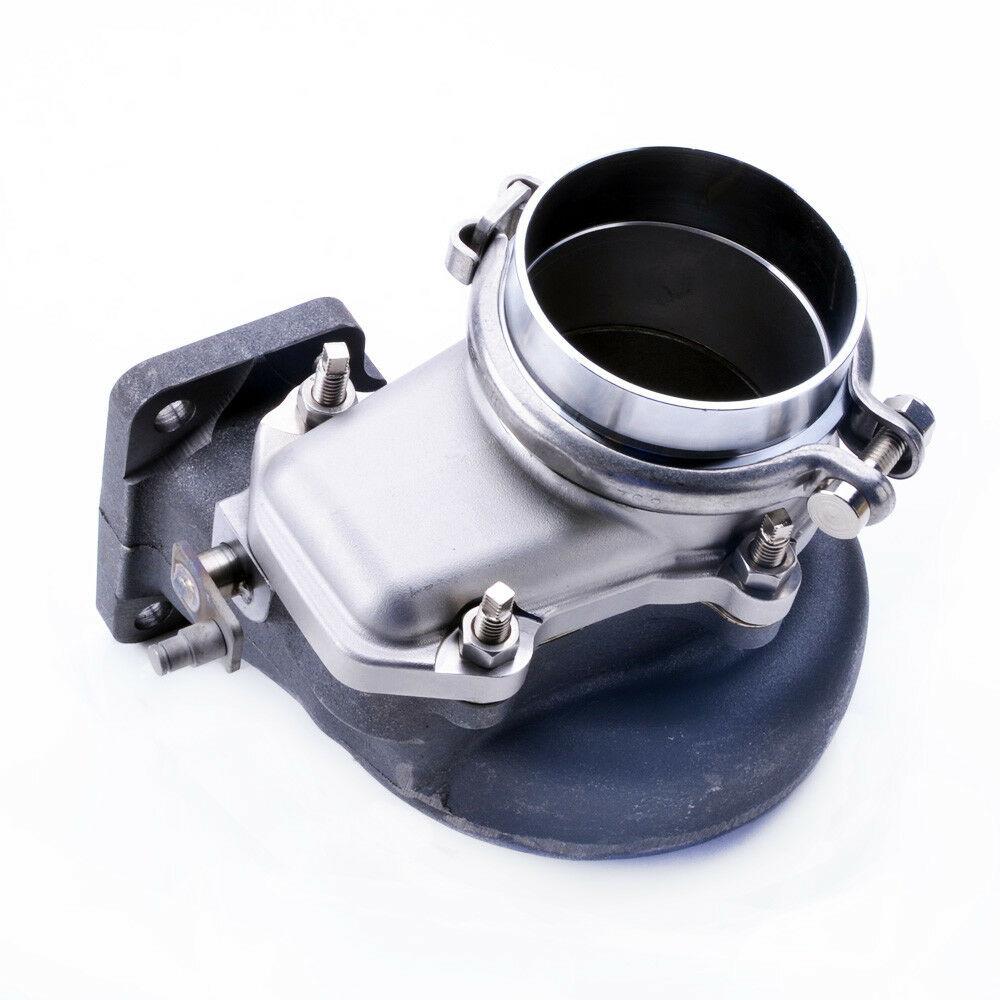

- Turbine Outlet: 5 bolt with V-band Adapter 3" outlet
COOLING/BEARING SYSTEM
- oil and water cooling
- ceramic dual ball bearing

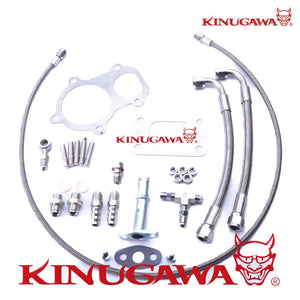

KIT INCLUDES
- 1 x oil feed line kit
- 1 x water feed and return line kit
- 1 x turbine inlet and outlet gasket

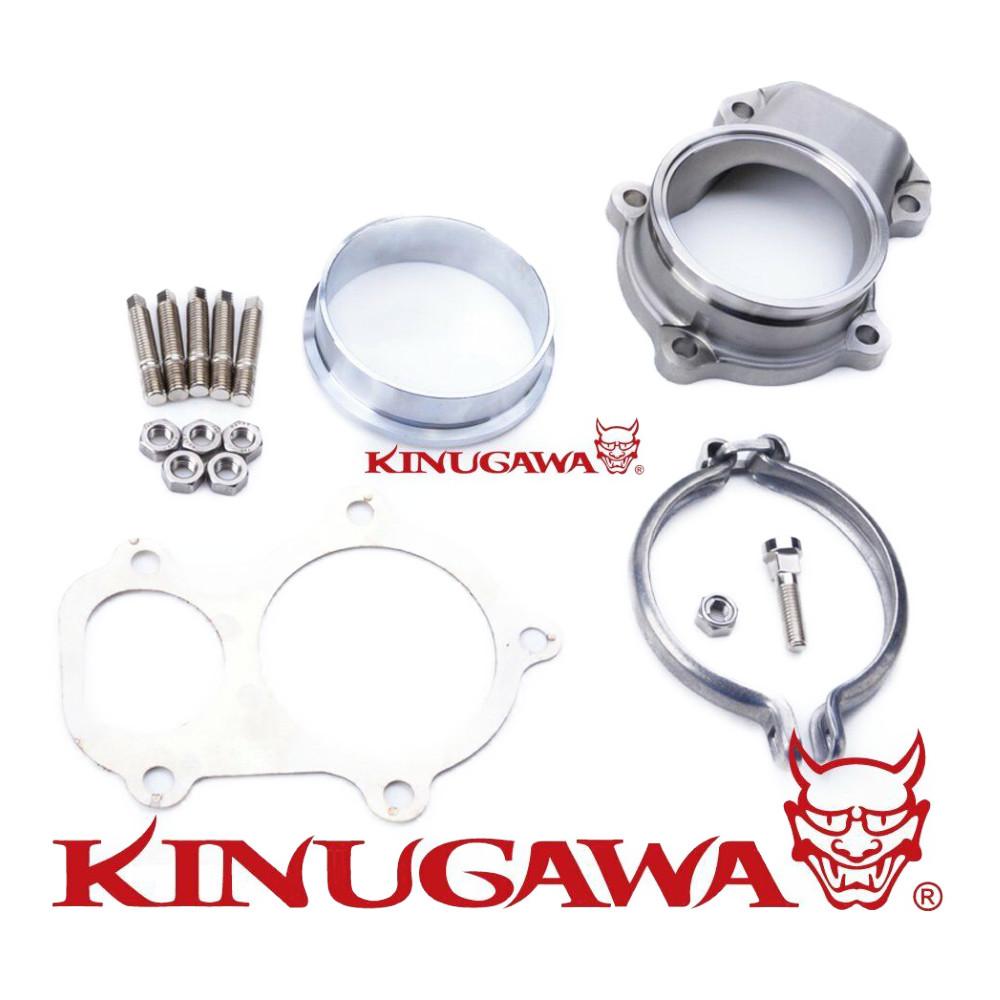

- 1 x turbine outlet v-band adapter kit 3inch
- 1 x oil return pipe kit
- 5 x studs and nut set
- 1 x balance report with anti-counterfeit tag
ITEM SITUATION
- Brand new
WARRANTY
- one year
MANUFACTURE
- Kinugawa Turbo Systems
