Up to 30% more efficient than Standard OEM using the latest tube & fin technology
Heavy-duty core combinations using 42, 55 & 68mm cores
Revolutionary fin pitch from 10-22FPI and louver angles
Thicker wall and high tensile Sheetmetal to handle the harshest of corrugations
Use of subheader plates & expansion joints to further strengthen the core
World-class TIG welding by our passionate fabricators
State-of-the-art controlled atmosphere brazing process
All items CAD designed to meet ISO9001 International standards for repeatability
Proven performance backed by comprehensive wind tunnel testing
Pressure tested and guaranteed
1 Year-manufactured warranty
100% Australian made
When it comes to keeping cool in the hot Australian climate, PWR’s range of 4WD High-Performance Radiators will handle the extreme conditions. Whether it’s towing the caravan, camper trailer or driving through the soft sands in the top end, you can travel with ease. The PWR range is designed to fit in the original mounting position requiring no modification and allow the original plastic shroud and brackets to bolt directly to the unit.
SPECIFICATIONS
Aluminium
Polished Sheet Metal Tanks
719 x 610 x 70mm
Rolled Dimple Tube and Fin
Factory Size Outlets
Radiator Cap Sold Separately
WHAT'S INCLUDED

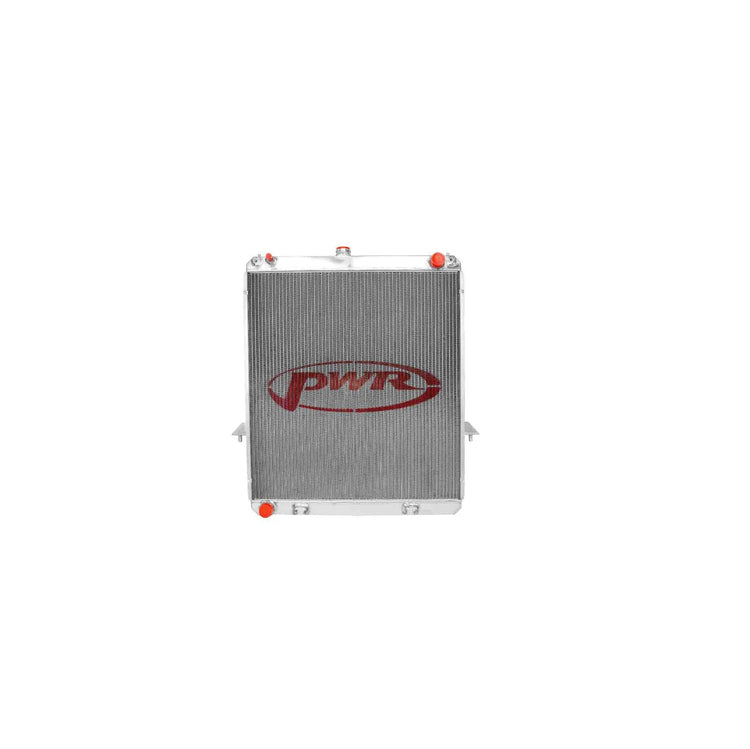

1 x Rolled Dimple Tube and Fin Radiator
COMPATIBILITY
NISSAN Patrol Y61 GU3 4.2TD and 3.0TD Diesel Engine (2003 - 2016) - Due to a thicker design radiator, trimming of the plastic shroud is required around the bottom corners to allow the radiator to seat properly in lower pins. Trimming of the shroud is also required around the top hose area.
ADDITIONAL ITEMS
Radiator Cap Small 16psi No Lever - SKU: 10233
PWR can custom-make to your requirements. Please let us know if you would like thermo fan mounts, fan shrouds, temp switch bosses, in-tank auto cooler, external trans cooler mounts, ground welds, machined logo etching or any other custom configuration. Call us today on 07 55 471 600 or email info@pwr.com.au for a quote.
