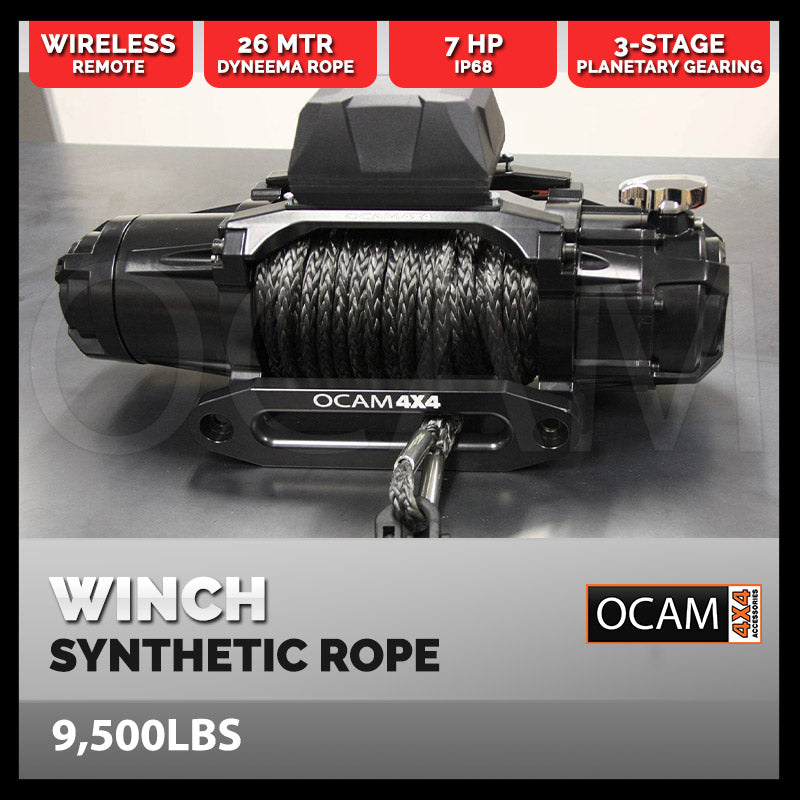

OCAM Premium Electric Fast Winch (9500LBS/4310KGS) 26M Synthetic Dyneema® SK-75 Rope Wireless Remote 4WD 12V
4-YEAR WARRANTY
The OCAM Premium Fast Winch is loaded with a powerful 7HP high-speed IP68 rated motor, heavy-duty casing and genuine Dyneema® SK-75 synthetic rope. The solenoid is IP-68 rated. All fitting screws are #304 stainless steel. All to ensure optimum operation.
Backed by a 4-year warranty, this premium winch offers seriously reliable pulling power and suits most winch compatible bull bars available in Australia.
Product Highlights:
- Tough on and off-road ability.
- Will guide you through tough swamp conditions and pull you out of danger
- Heavy-duty resistance to harsh weather, reliability against corrosion and moisture
- Pulling power to drag your vehicle out!
- Dual remote modes; wired and wireless function!
Why choose Dyneema® SK-75 synthetic rope over steel cable?
- Over 1.5X stronger
- Less than 15% of the weight of steel
- At least 7X stronger when comparing weight to weight
- It floats in water
- The UHMwPE (Ultra-High Molecular weight Polyethylene) fibres are stronger than steel with high abrasion and friction-resistance.
- Should the rope break during recovery, synthetic is much safer. Unless a steel cable is dampened, the build-up of force will inevitably spring back on breaking. Whereas, the "very low" stretch properties of Dyneema® SK-75 means it will just fall rather than spring back. Synthetic rope can be respliced and recovery can continue, which is impossible with steel.
- It reduces the weight of your vehicle's front-end by at least 10K
Why choose genuine Dyneema® SK-75 Syntethic Rope over any other brand?
- Manufactured by DSM in the Netherlands, it is the most reliable, safest and longest-lasting rope available
-
It's "high-modulus" synthetic fibres are scientifically engineered to overcome the 4 major challenges of winch rope; Abrasion, Bending Fatigue, Compression, Creep Fatigue:
- Abrasion: Running through a fairlead causes abrasion and degrades the fibres. Over a period of time, the fibres will eventually break. A rope made with Dyneema® SK-75 fibres has over 4X longer abrasion lifetime compared to a rope made with generic HMPE and far more than polyester
- Bending fatigue happens each time a rope is flexed under tension. The fibres of a rope will stress when running through a fairlead. With Dyneema rope, bending causes less damage and the number of cycles before failure is far greater than steel or any other synthetic fibre.
- Compression Fatigue happens when a rope becomes slack and the fibres actually compress. The molecular properties engineered into Dyneema® SK-75 prevent compression fatigue. Ropes with Dyneema are not affected by compression fatigue.
- Creep Fatigue - all synthetic ropes will elongate under load and over time at higher temperatures. When combined with abrasion, creep fatigue leads to failure and breakage. Dyneema® SK-75 has 2-4X longer creep lifetime than generic HMPE.
- Dyneema is the worlds strongest fibre and the most trusted and safest brand for towing ropes. "Feel secure only with Dyneema".
PICK UP & PHONE ENQUIRIES WELCOME
Despatched within 24hrs of payment being received.
Despatched within 24hrs of payment being received.
Specifications
| Rated Line Pull: | 9500LBS (4307KG) |
| Motor: | 7 HP Series Wound (12V), High Speed, IP68 Rated |
| Clutch (free spooling): | Sliding Ring Gear |
| Colour & Finish: | Black, Powder Coated |
| Remote Control: | Handheld 3.8M Length + Wireless Function |

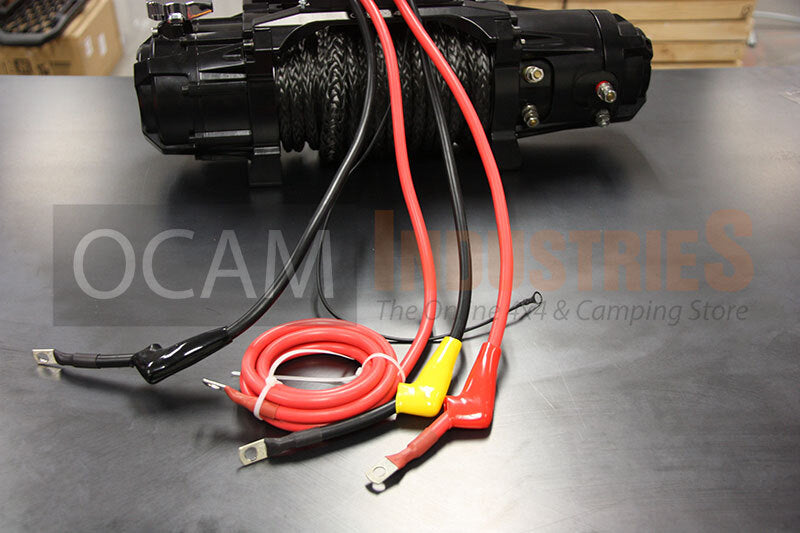

| Battery Leads: | 2 x 1.8M Heavy-Duty Leads |
| Gear Train: | 3-Stage Planetary |
| Gear Reduction Ratio: | 150:1 |
| Braking Action: | Automatic (In The Drum) |
| Drum Size: | Diameter 63.5mm (2.5"), Length 228mm (9") |
| Synthetic Rope: | Dyneema® SK-75, 9.5mm x 26M, Dark Grey |

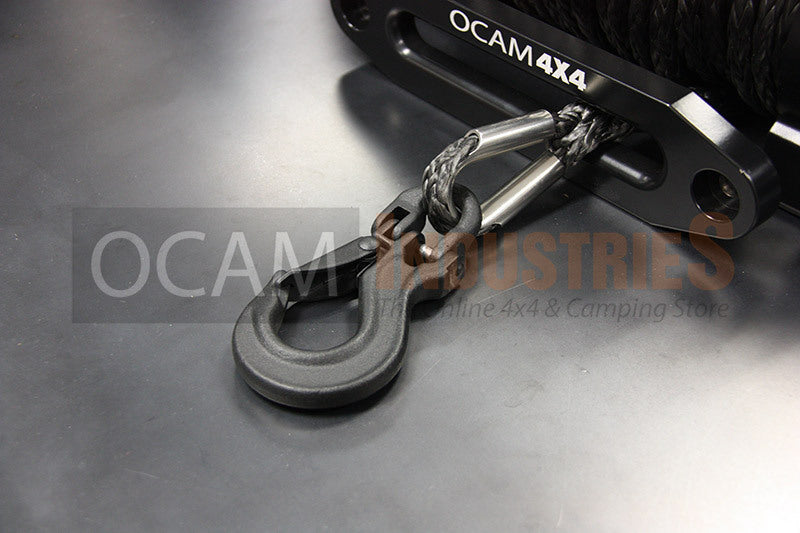

| Hook: | 8/10" Black Powder Coated |
| Fairlead: | Hawse Black Aluminium |
| Overall Dimensions: | 540 x 160 x 218mm (21.3x6.3x6.6") |
| Mounting Bolt Pattern: | 254 x 114.3mm (10x4.5") |
| Battery Leads: | 1.8m long |
| Net Weight: | 27KG |
| Gross Weight: | 28.5KG (Includes Packaging) |
| Vehicle Battery Requirement: | 650CCA Minimum Recommended For Winching |
| Warranty: | 4 Years |
|
Line Pull (LBS/KGS) |
Line Speed M/MIN (F/PM) |
Motor (AMPS) |
| 0 | 20 (65.6) | 60 |
| 2375 (1079) | 5.1 (16.7) | 186 |
| 4750 (2159) | 3.2 (10.5) | 265 |
| 7125 (3238) | 2.5 (8.2) | 355 |
| 9500 (4310) | 1.7 (5.6) | 430 |
|
Layer |
Rated Line Pull (LBS/KGS) |
Total Rope On Drum (M/FT) |
| 1 | 9500 (4310) | 5.57 (18.27) |
| 2 | 7716 (3507) | 12.44 (40.79) |
| 3 | 6496 (2953) | 20.5 (67.5) |
| 4 | 5609 (2549) | 28 (92) |
