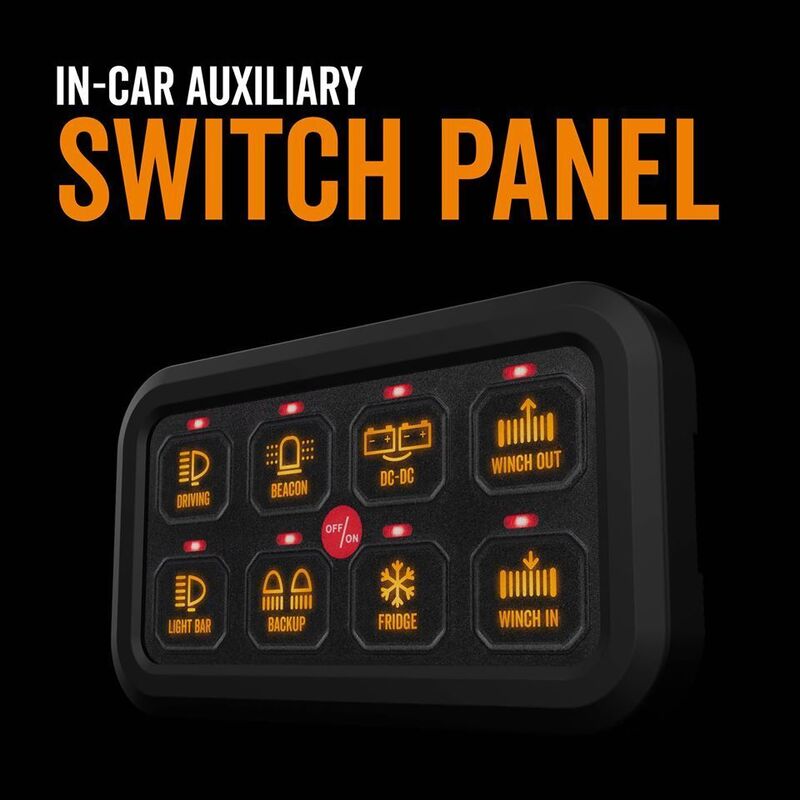

Roadpower Switch Panel 8 Way 60A Continuous On/Off or Momentary Programmable With 2 High Beam Inputs
For a user-friendly interface and high-quality unit, Roadpower is an outstanding in-car auxiliary switch panel.
- Control up to 8 switchable components, including auxiliary lighting, winch systems and battery setups.
- Soft amber backlit buttons that support on/off or momentary functions
- Simple DIY installation, the Roadpower RSP8000 is versatile and customisable
- 70 included switch decals to suit most applications.
FEATURES
- 8 User Programmable Switches
- 70 User Selectable Switch Decals
- Simple DIY Installation
- Master On/Off Override
- Red LED Switch Status Indicator
- Amber Backlit Switch Panel
- LED Fuse Indicator
- Optional High Beam Output
- Solid State Power Module
- 8 x 25A Outputs
- 2 x High Beam Circuits
PICK UP & PHONE ENQUIRIES WELCOME
Despatched within 24hrs of payment being received.
Specifications
| High Beam Active Switches | 0 or 2 (1&5) |
|---|---|
| High Beam Input | Positive or Negative Switched |
| Backlit Color | Amber |
| LED Indicator Color | Red |
| Backlit Dimming | Automatic/Bright/Dim |
| Current Draw Panel Bright | 0.08amp |
| Current Draw Panel Dim | 0.05amp |
| Per Circuit Output | 25A Max Without External Relay |
| Maximum Output | 60A Continuous |
| Master On/Off Switch | Yes |
| Warranty | 2 Years |
| Brand | Roadpower |
| Standby Current | <100mA |
| Voltage Input | 10-30V DC |
| Temperature Rating | -40°C to +105°C |
KEY SPECIFICATIONS
| SKU | RSP8300 |
| Brand | Roadpower |
| Shipping Weight | 0.500000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.100m |
| Shipping Length | 0.400m |
| Shipping Cubic | 0.008000000m3 |
| Unit Of Measure | ea |
