Roof Rack Brackets For Isuzu MU-X 2013-06/2021 4WD 4X4 MUX

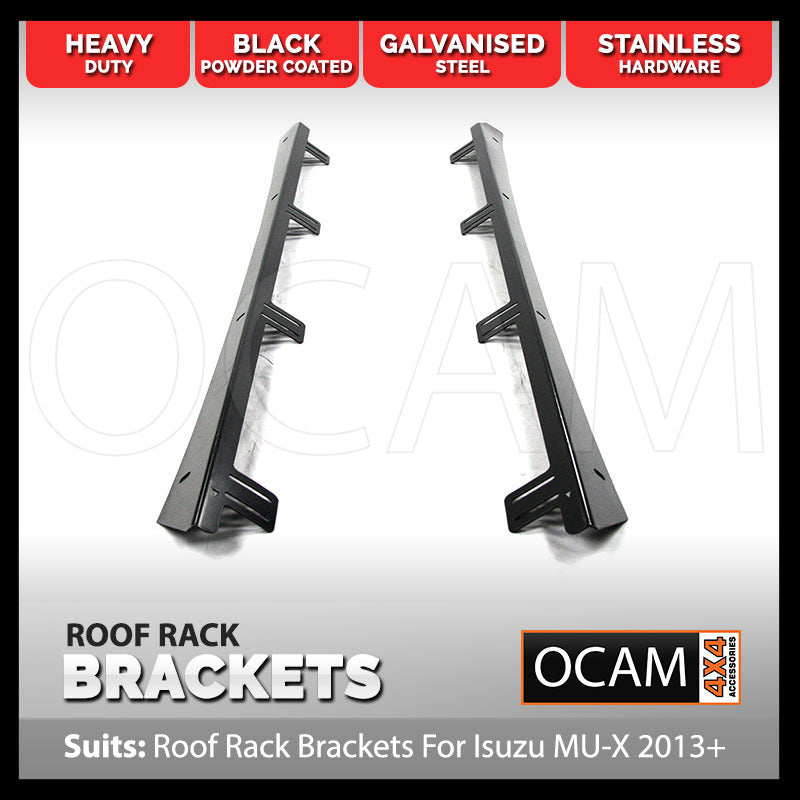

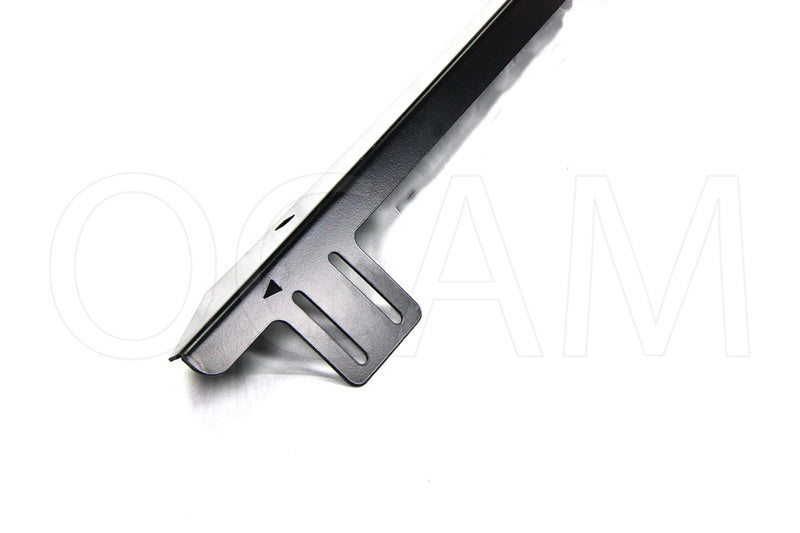

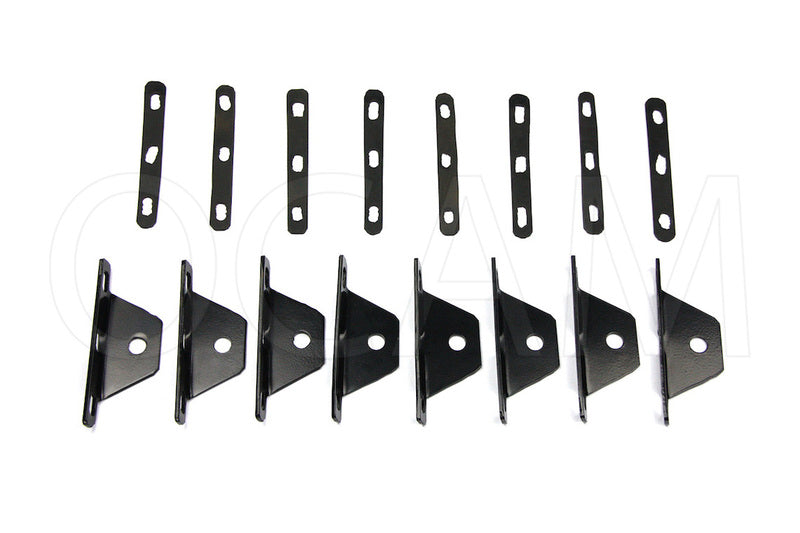

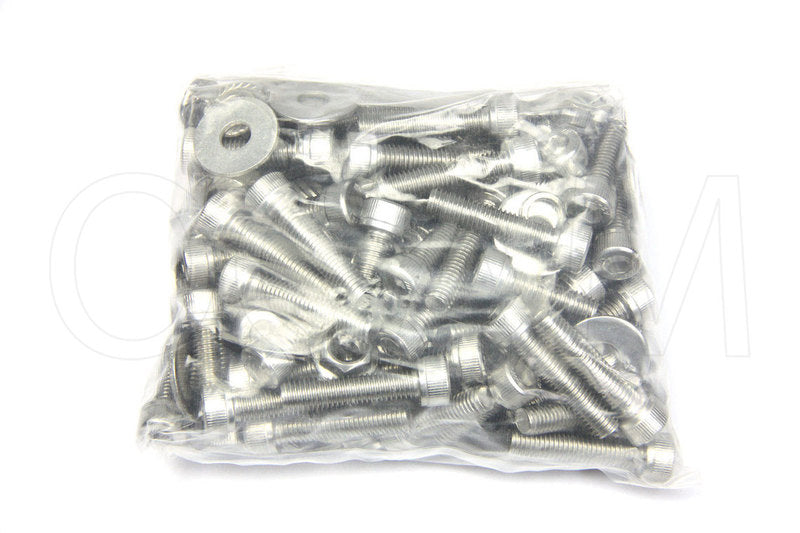

This set of black powder coated thick steel solid construction brackets includes rubber stripping to protect the roof channel and all nuts, bolts, screws and washers for mounting the brackets to your roof.

FITTING NOTES:

• All MU-X models come with threaded mounting points in the roof. Removal of interior roof lining is not required.
• For LS-M and LS-U, the threaded mounting points to which you will secure the roof rack are located in the cavity immediately below the top layer of the roof channel. Drilling is required to gain access.
  • Remove the black moulding in the roof channel.
  • Using the images provided in this listing as your guide for drilling locations and mounting positions, use a 2-3mm drill bit to create a pilot hole for each mounting point. Drill very slowly and use caution not to hit the thread below. In case you do, use a tap to re-thread.
  • Next, use a 9mm drill bit to create a hole for the mounting bolts.
  • Note: The front and rear mounts require 2 mounting holes. Whereas the 2 middle mounts require only 1 single hole.
• For LS-T, this is not required.  Simply remove the factory roof rails and bolt in.

Please contact our customer service team for any assistance.
