SC303T COMBO BATTERY SHUNT 300A With 2 Tank Inputs
The SC303T combo shunt (Was SC302T) is an innovative combination of shunt and tank level module.
The active combo shunt precisely monitors battery voltage on 12V, 24V, 48V, 60V and 72V systems, battery temperature and continuous currents up to 300A (400A peak). It is suitable for maximal power of 3600W at 12V or 7200W at 24V. It is equipped with one additional battery voltage input (2 in total).

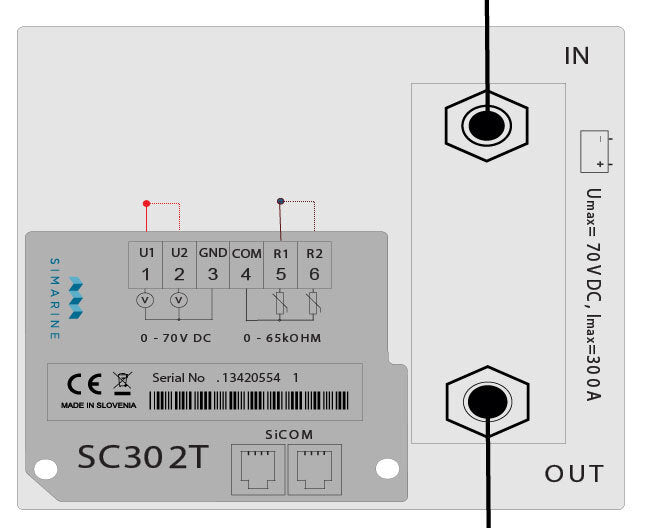

The integrated tank level module has 2 resistance-type inputs for monitoring tank level and temperature sensors.
Additionally, the SC303T module can also be used for monitoring current draw of heavy consumers like inverters, bow and stern thrusters and anchor winches and current generated on generators like shore power chargers, solar panels, hydro- and wind generators.
Its innovative protected architecture allows wiring in either negative (up to 72V) or positive (up to 24V) side.
Specifications
Tehnical data
| Operation | |
| Voltage range | 6 - 35 V |
| Temperature range | -20 - +70 °C |
| Power consumption at 12V | |
| Operating | 1,2 mA |
| Current Measuring | |
| Range | 0,01 - 320 A |
| Accuracy | ± 0,6 % |
| Resolution | 0,01 A |
| Sampling rate | 100 ms |
| Maximal current | |
| Continuous | 300 A |
| Peak current ( <1min ) | 400 A |
| Voltage measuring | |
| Range | 0 - 70 V |
| Accuracy | ± 0,2 % |
| Resolution | 1 mV |
| Temperature sensor NTC 5K | |
| Range | -15 - +80 ∞C |
| Accuracy | ( -10 - +60 ∞C ): 3 % |
| Installation and Dimensions | |
| Dimensions | 120x120x60 mm |
| Connection | M 10 bolts |
| SKU | S005 |
| Brand | Simarine |
| Shipping Weight | 0.800000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.050m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.003000000m3 |
| Unit Of Measure | each |
