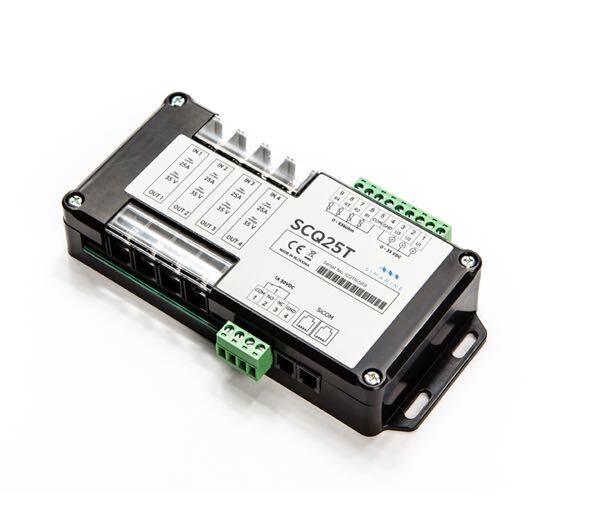

SCQ25T Quadro Shunt with Tank Level Inputs

SCQ25T Quadro Shunt with Tank Level Inputs

The SCQ25T is a highly versatile and innovative combination current measurement, tank interface and voltage module. Its highly innovative shunt module with four inputs for monitoring individual consumer and generator continuous currents up to 25A (35A peak).

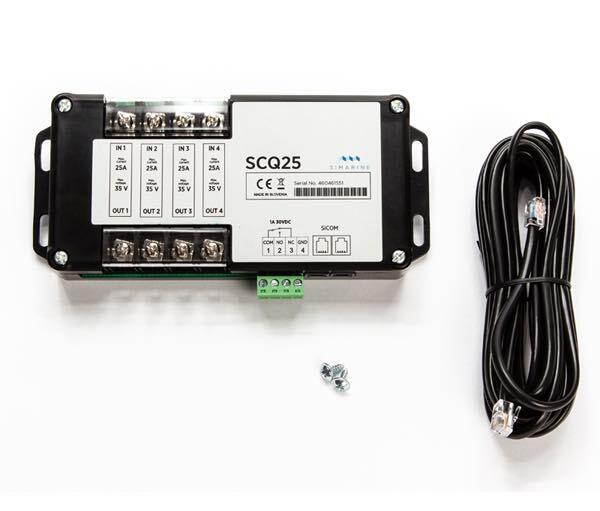

SCQ25 is an innovative shunt module with:

• Four inputs for monitoring individual consumer and generator continuous currents up to 25A (35A peak) per input
• Can handle 12V or 24V systems, (same voltage used per device)
• The innovative protected architecture allows wiring on either negative (low) or positive (high) side. (the same system used per device)
• Very convenient for monitoring smaller consumers like refrigerators or generators like solar, wind, hydro or shore power.
• Current channels can be combined for higher amperage, meaning 2 x 25A channels can be used for measuring up to 50A.
• Up to five modules can be connected simultaneously to monitor up to 20 current channels with PICO Battery Monitor.
• Assignable NO or NC output relay.

Plus it is equipped with:

• four resistance inputs for resistance-type tank level or temperature sensors and
• three voltage inputs for voltage-type tanks sensors and battery voltages allows wide connection possibilities.
• assignable relay output NO or NC.

It receives its power to operate via the twisted pair communication cable from the splitter power block.

It is a versatile module for monitoring:

• Tanks of all descriptions
• Temperature sensors
• Battery voltage
• Inclinometer inputs (x and Y need an input each)
• AC current sense
• Irradiation sensor for solar performance

Specifications
