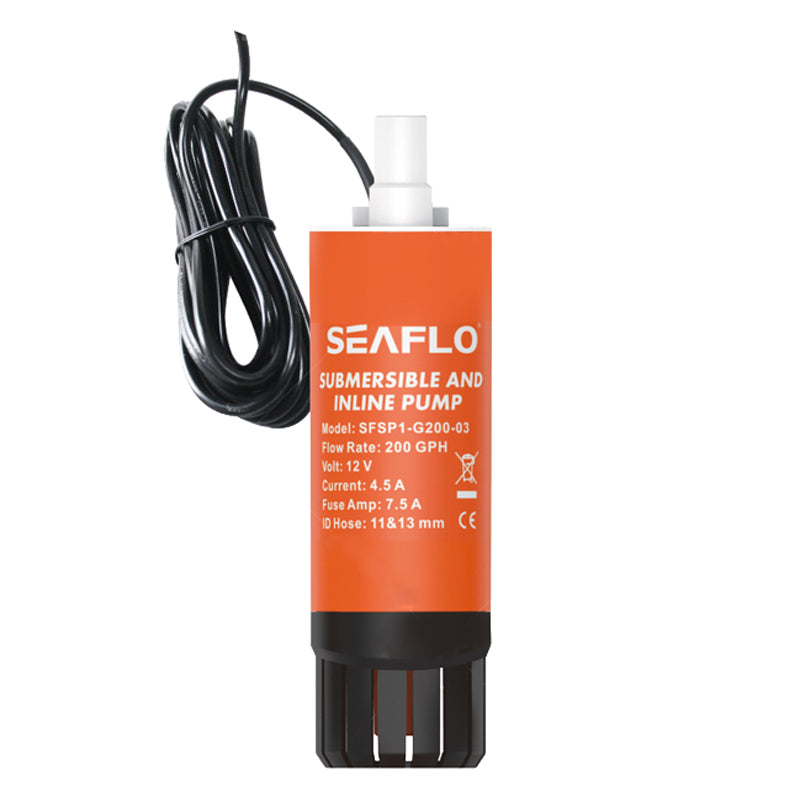

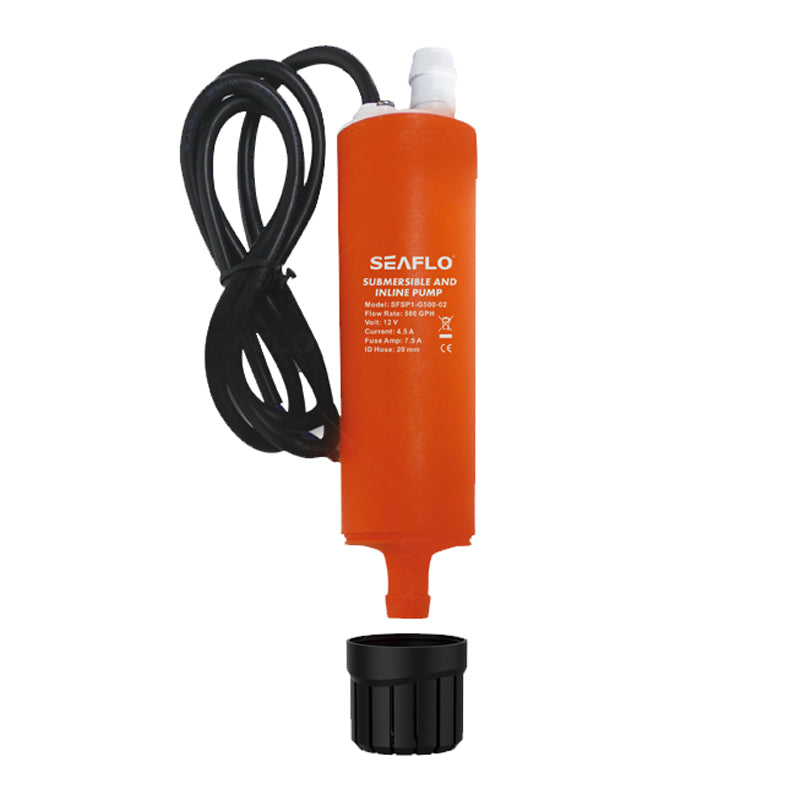

SEAFLO 200GPH Submersible Inline 12V Water Pump SFSP1-G200-03B
SEAFLO DC 12 voltage inline submersible and inline pump is easy to install and carry. Also, the pump is able to pump fresh water and sea water. With long life and quiet perform motor, allows it to work in an quiet environment. The food grade material allows it to work with wide range of application.
Features:
- Able to pump 80°C sea water
- Able to run about 20 minutes
- Portable to carry on
- Easy installation
- Intermittent duty
- 1m long Leads
Typical Applications:
- Marine 20ft, RV, Medical, Water Research, High pressure washing, etc.
Standard Pump Configurations:
| Model | Flow Rate | Voltage | Max Draw | Fuse Amps | Head | Wire Lead | Outlet Dia | N.W. / G.W. |
| SFSP1-G200-03B | 187 GPH | 12 V | 4.0 A | 7.5 A | 16.4' (5 m) | 3' (1 m) | 1/2" | 0.3KG/0.36 KG |
Performance:
| Head(M) | Voltage(V) | Current(A) | Flow(GPH) |
| 0 | 12 | 2.7 | 187 |
| 1 | 12 | 3.1 | 152 |
| 2 | 12 | 3.3 | 103 |
| 3 | 12 | 3.6 | 84 |
| 4 | 12 | 3.84 | 46 |
| 5 | 12 | 4 | 0 |
PICK UP & PHONE ENQUIRIES WELCOME
Despatched within 24hrs of payment being received
Specifications
| Unit Pump Weight | 0.66 lbs（0.30 kg） |
| Selling Unit Size (L x W x H) | 11.42 x 8.3 x 0.28 " (29 x 21 x 0.7 cm） |
| Selling Unit Weight | 0.79 lbs（0.36 kg） |
| Master Carton Size (L x W x H) | 20.67"x 11.8 "x 10.43" (52.5 x 30 x 26.5cm) |
| Master Carton Qty | 20 pcs |
| Master Carton Weight | 19.2 lbs (8.7 kg) |
KEY SPECIFICATIONS
| SKU | SFSP1-G200-03B |
| Brand | SEAFLO |
| Shipping Weight | 0.360000kg |
| Shipping Width | 0.210m |
| Shipping Height | 0.007m |
| Shipping Length | 0.290m |
| Shipping Cubic | 0.000426300m3 |
