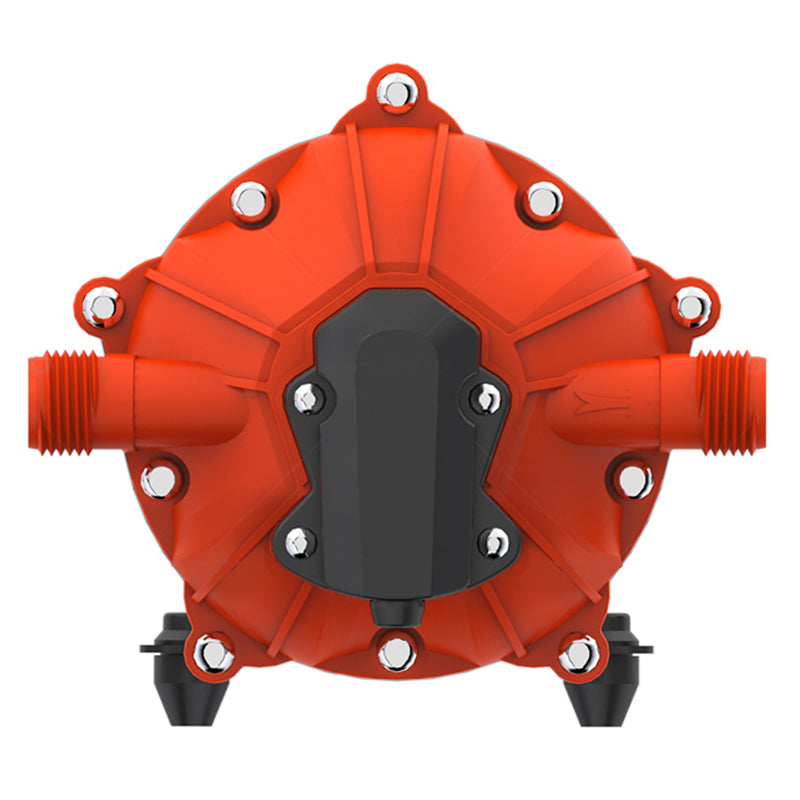

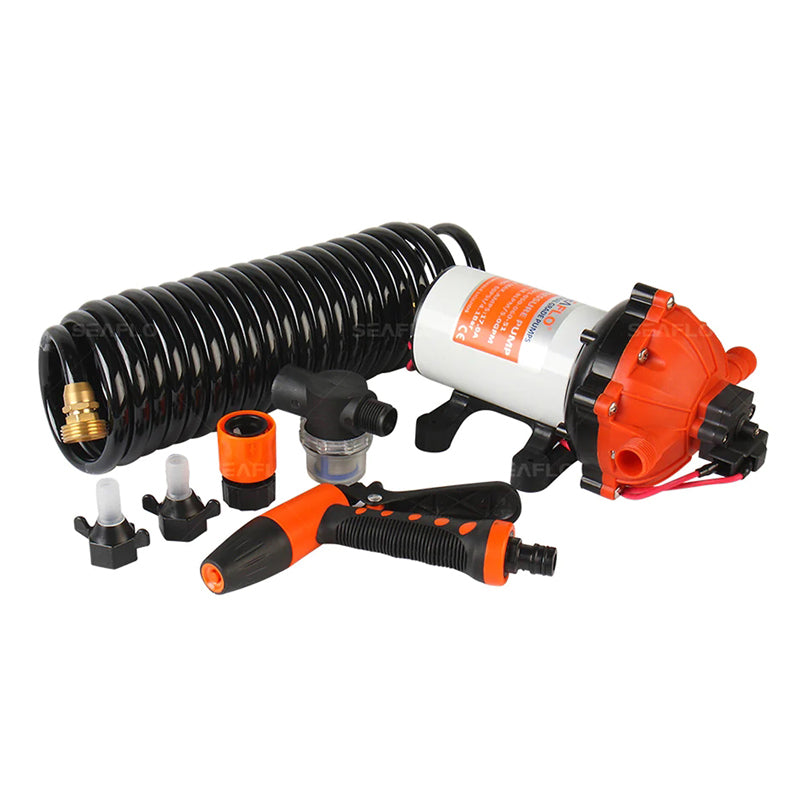

SEAFLO 51 Series Washdown Pump Kit with 6m Coiled Hose SFWP1-050-070-51X
This heavy-duty washdown kit is the best choice for cleaning boats, fish boxes, anchor wells, dinghies, and other similar applications. This pump boasts a huge 5 GPM capacity. This pump has an on-demand switch, so the pump automatically turns on when you squeeze the spray gun handle. With a 70 PSI cutoff, this has the pressure to get rid of stubborn debris. Suitable for fresh and saltwater applications.
Features:
- Maximum 9A power draw

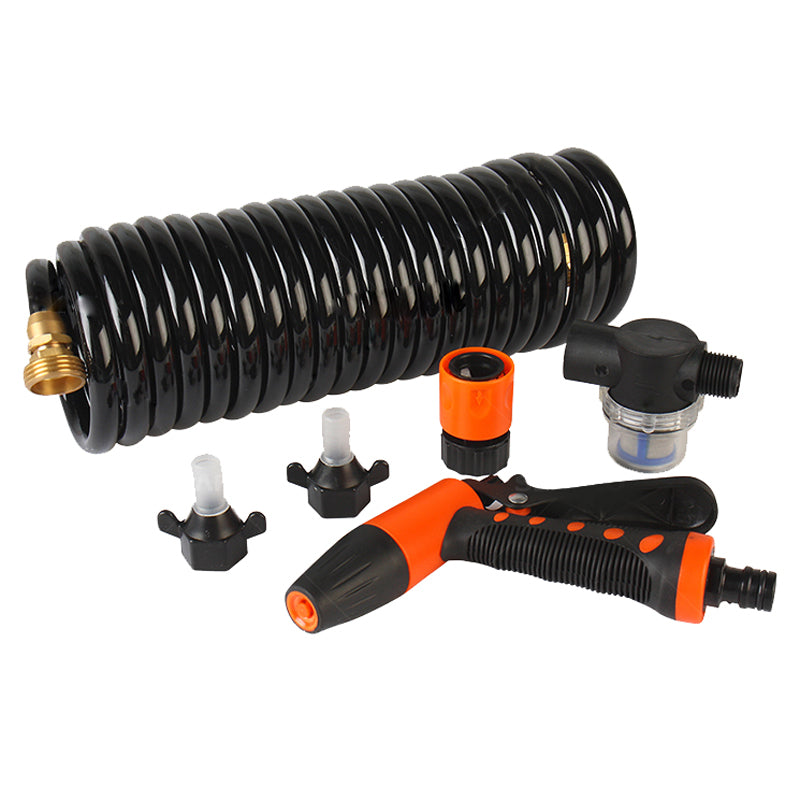

- 7m UV-protected recoil hose
- Quick connect hose fittings
- Trigger spray nozzle
| Pump | |

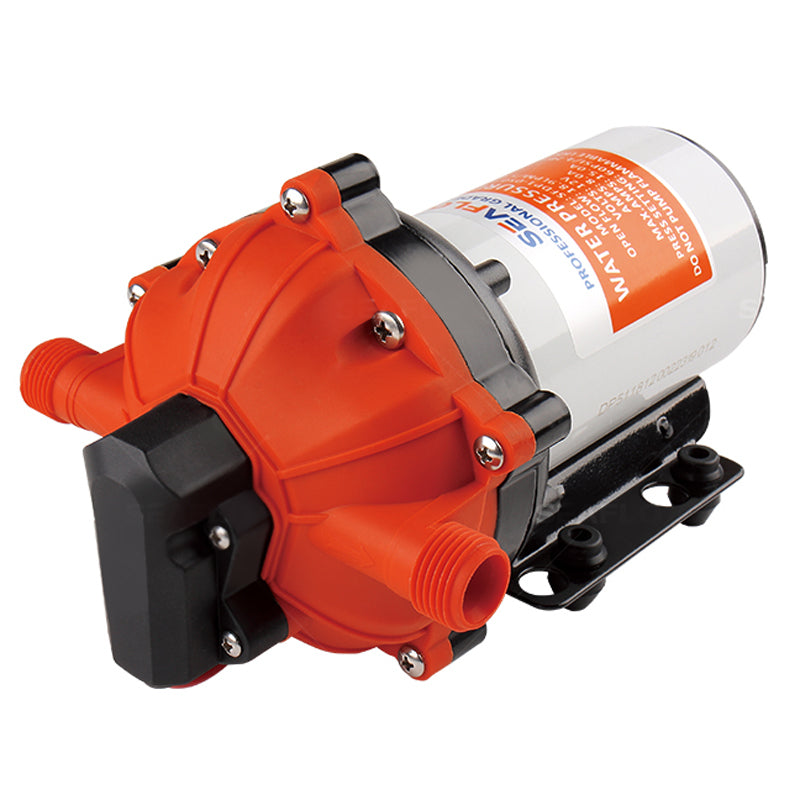

| Type | 5 Chamber positive displacement diaphragm pump, self-priming, capable of being run dry |
| Control Type | Pressure switch |
| Max Recommended Temperature | 60° C（140° F） |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure | Shut-off Pressure 70 PSI：56 PSI ±5 PSI(±0.3 bar) |
| Inlet/Outlet Ports | 1/2"-14 MNPT |
| Weight | 8.2 lbs (3.7 kg) |
| Motor | |
| Leads | 14 AWG, 13" (33 cm) long with 2-Pin connector/Leads |
| Duty Cycle | Continuous |
| Max.Amp Draw | 18.0 A |
| Fuse | 27.0 A |
Standard Pump Configurations:
| Model | Voltage | Open Flow （GPM/LPM） |
Control Type | Max Draw | Shut-off Pressure （PSI/BAR) |
Valves | Diaphragm | Ports | Wire Connections |
| SFWP1-050-070-51X | 12V | 5.0 / 18.9 | Switch | 17.0A | 70 / 4.8 | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin/Leads |
| SFWP2-050-070-51X | 24V | 5.0 / 18.9 | Switch | 9.0A | 70 / 4.8 | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin/Leads |
Performance:
| PRESSURE | FLOW | CURRENT | ||
| PSI | BAR | GPM | LPM | AMPS |
| 0 | 0 | 4.91 | 18.60 | 6 |
| 20 | 1.38 | 3.75 | 14.20 | 9.8 |
| 30 | 2.07 | 3.43 | 13.00 | 11.17 |
| 40 | 2.72 | 3.12 | 11.80 | 12.4 |
| 50 | 3.45 | 2.85 | 10.80 | 13.5 |
| 60 | 4.14 | 0 | 0 | 14.5 |
PICK UP & PHONE ENQUIRIES WELCOME
Despatched within 24hrs of payment being received
SPECIFICATIONS
| SKU | SFWP1-050-070-51X |
| Brand | SEAFLO |
| Shipping Weight | 3.900000kg |
| Shipping Width | 0.130m |
| Shipping Height | 0.430m |
| Shipping Length | 0.390m |
| Shipping Cubic | 0.021801000m3 |
